Jacobsen Tri King User Manual

65
> Change from previous revision
A
B
A
B
View Rotated 180°
For Clarity
1
1
1
1
2
3
4
5
6
7
7
8
9
10
10
TRI-KING
Item Part No. Qty. Description Serial Numbers/Notes
1
366526 4 Clamp, Hose
2 554748 AR Hose, 5/16 I.D. Tank to Fuel Filter 10 Foot Length, Cut to 37”
3 550553 1 Filter, Fuel
550489 1 Element, Fuel Filter
4 400200 1 Screw, 5/16-18 x 2-1/2” Hex Head
5 444718 1 Locknut, 5/16-18 Hex Center
6 554748 AR Hose, 5/16 I.D. Fuel Filter To Engine 10 Foot Length, Cut to 13”
7 366526 2 Clamp, Hose
8 554752 AR Hose, 3/16 I.D. Fuel Return 10 Fot Length, Cut to 88”
9 3003764 1 Convoluted Conduit, 1/2” I.D. 22”
10 473142 4 Cable Tie

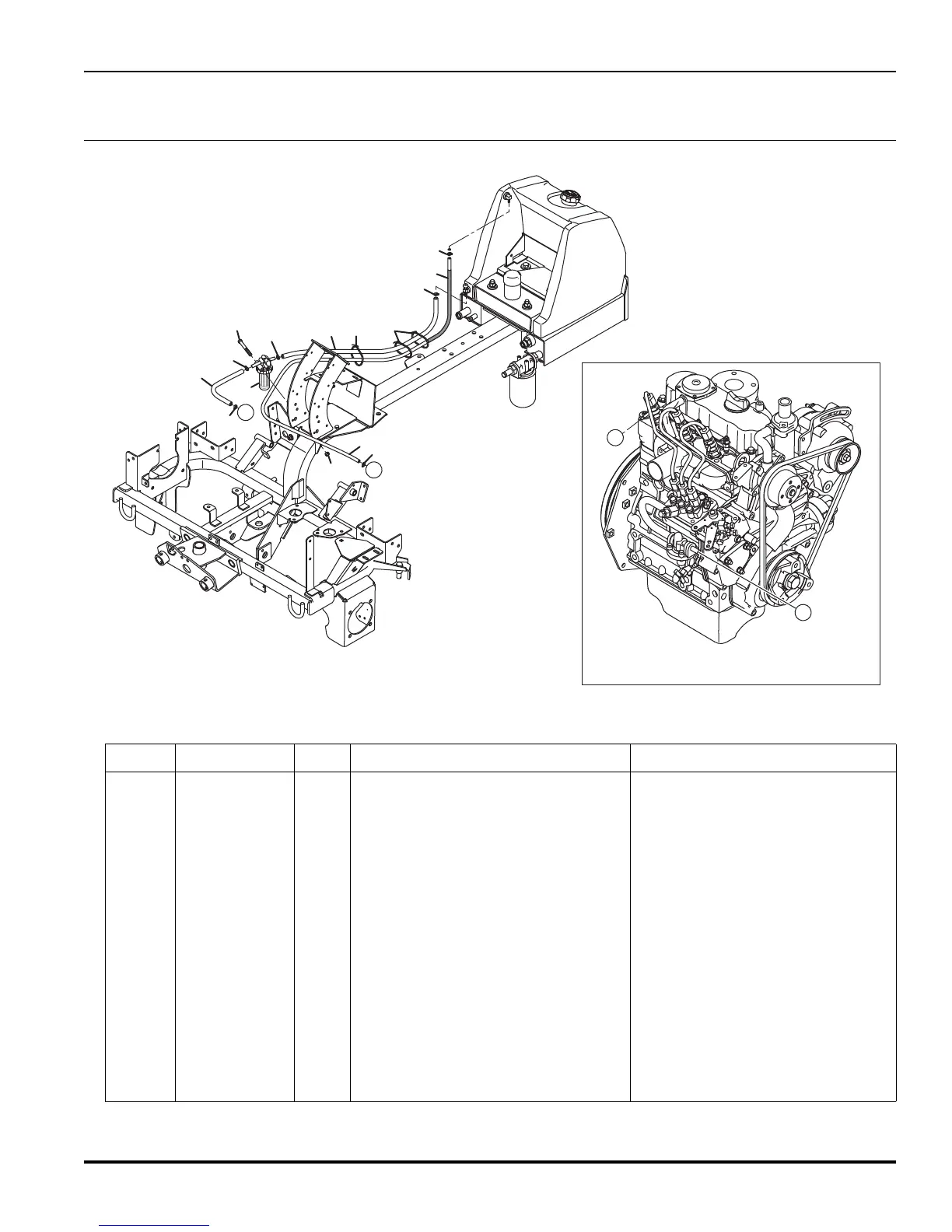

18.1 Fuel Hose Routing
Serial No. All
