13.4 CLEARRAY® Bulb Replacement and Quartz Tube
Maintenance
Important: It is MANDATORY that the UV bulb is replaced and the
quartz tube be cleaned every 12 months to maintain optimum
performance.
!
DANGER: TURN THE SPA BREAKER TO THE OFF
POSITION!
!
WARNING: DRAIN THE SPA IF YOU ARE REPLACING OR
CLEANING THE QUARTZ TUBE!
!
WARNING: ALLOW BULB TO COOL DOWN PRIOR TO
REMOVING FROM QUARTZ TUBE.
!
DANGER: NEVER LOOK AT THE LIT BULB. THIS CAN
CAUSE SEVERE EYE DAMAGE OR BLINDNESS.
UV BULB REPLACEMENT AND QUARTZ TUBE MAINTENANCE:
Note: Location of CLEARRAY System and connection may vary by
model.
1. Turn the breaker to the spa OFF. DRAIN YOUR
SPA. Disconnect the CLEARRAY System from the
controller, Figure 2.
Note: If you are only replacing the UV bulb then the
spa does not have to be drained. You will need to drain
it if you are replacing or cleaning the quartz tube.
DANGER: NEVER REMOVE COVER WITHOUT FIRST
TURNING OFF AT POWER SOURCE AND DRAINING YOUR
SPA.
!
2. Once the UV bulb has cooled off remove the CLEARRAY System
enclosure cover (10) and gasket (9) by removing the four screws
(11).
1
2
3
4
5
6
7
8
9
10
12
13
11

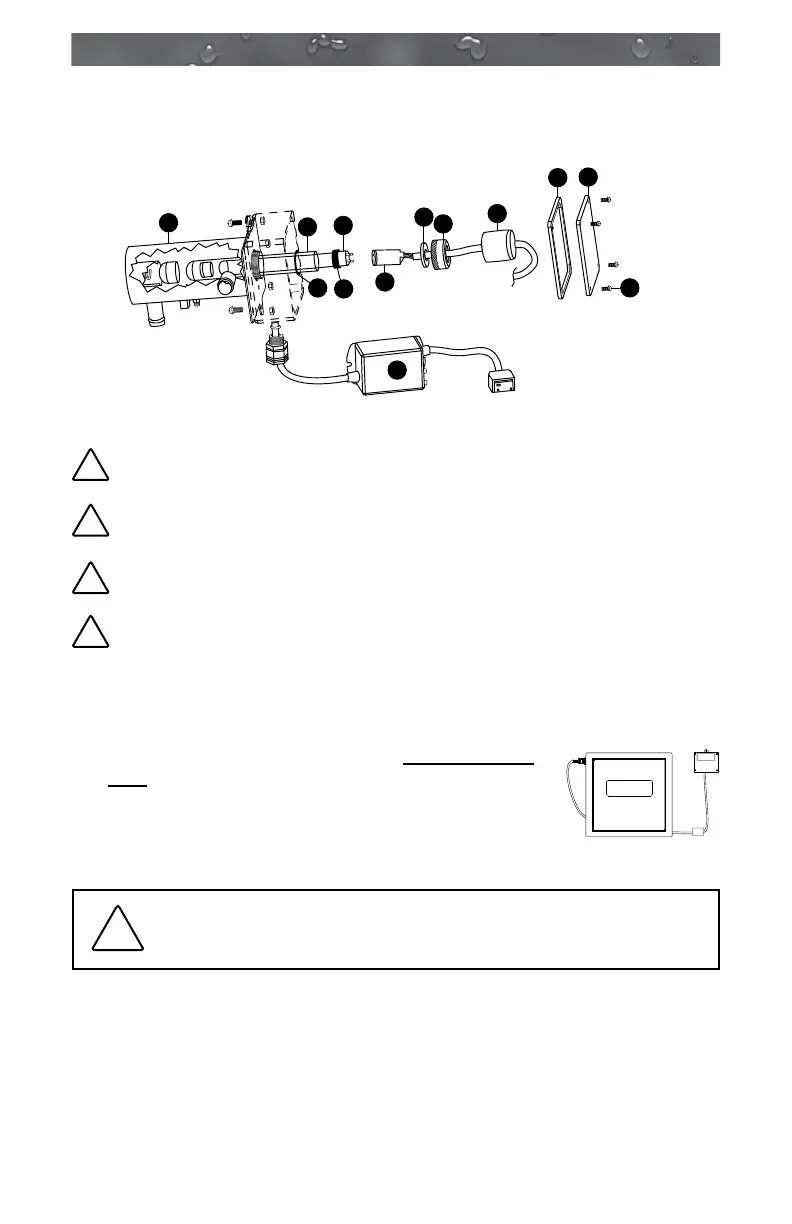

Figure 1
WARNING!
DONOT LOOK AT LIT BULB
SEVERE EYE DAMAGE
OR BLINDNESS CAN OCCUR
SPA CONTROLLER
Figure 2
UV Unit
Connection
To Next Page
