Page 10
ENGLISH
Wireless Handheld Remote | Installation and Operation Manual
1. On the Handheld Remote, press
and hold both the UP and DOWN
arrows simultaneously for three (3)
seconds. The CHANNEL SETUP
screen will appear.
2.
Use the UP
and DOWN buttons to
highlight the desired RF channel.
Then press SELECT.
3.
When the RF channel is selected,
the following message appears on
the Remote display screen:
Set slide switch on J-Box PCB
to the LEARN MODE.
4.
At the
Transceiver J-box, remove
the cover to expose the PCB.
5.
Slide the Learn Switch to ON.
6.
On the Handheld Remote display
screen, a prompt will read:
Restore J-Box Slide Switch and
Press J-Box Reset Button
.
7. Slide the Learn Switch inside the
Transceiver J-Box to OFF.
8. Press the Reset Button inside the
Transceiver J-Box
9.

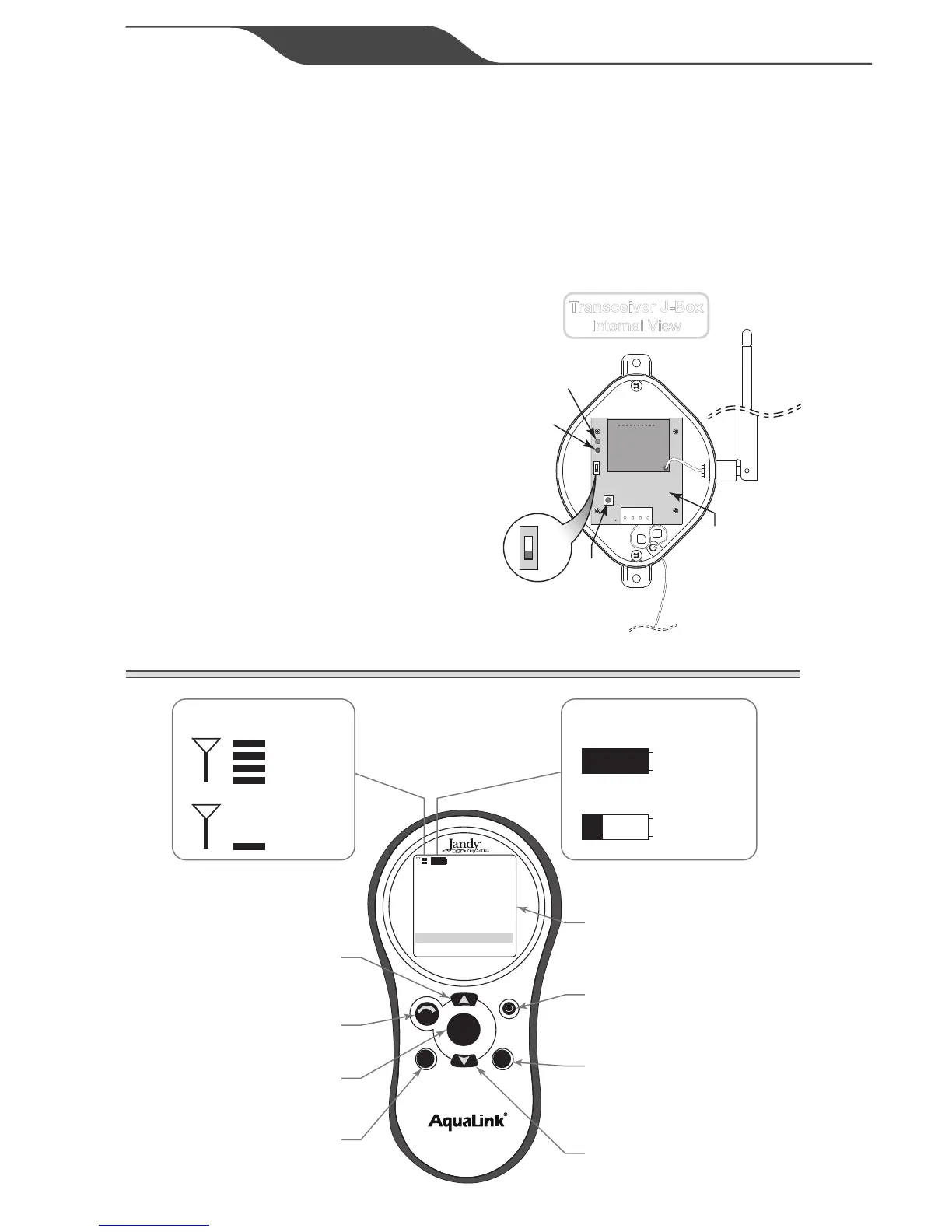

When complete the red and green
LEDs on the J-Box will blink
simultaneously
.
MAI
N CO
NNECTOR
RESET
D
2
D3
LEARN
Y B RG
OFF ON
LEARN
OFF ON
Red LED
(Send)
PCB
Transceiver J-Box
Internal View
Green LED
(Receive)
Reset
Button
SECTION 4. HANDHELD REMOTE OPERATION
1
2
select
back
R0444300
POOL
ON
ON
OFF
OFF
AIR
78°
80°
POOL MODE
POOL HEATER
SPA MODE
SPA HEATER
MENU
EQUIPMENT ON/OFF
FRI 10:30 PM
Default Screen
Power Button
Toggle Remote On and Off
Hotkey 2
Programmable
Function Button
Down Button
Scroll or Set Value Down
Hotkey 1
Programmable
Function Button
Back Button
Return to Previous Screen
Select Button
Selects/Activates
Highlighted Item
Up Button
Scroll or Set Value Up
*Set Tranceiver closer to the
remote operation area
Signal Strength
GOOD
POOR*
Battery Strength
GOOD
REPLACE
To Next Page
