If you use the machine frequently, oil the following
points every four months.

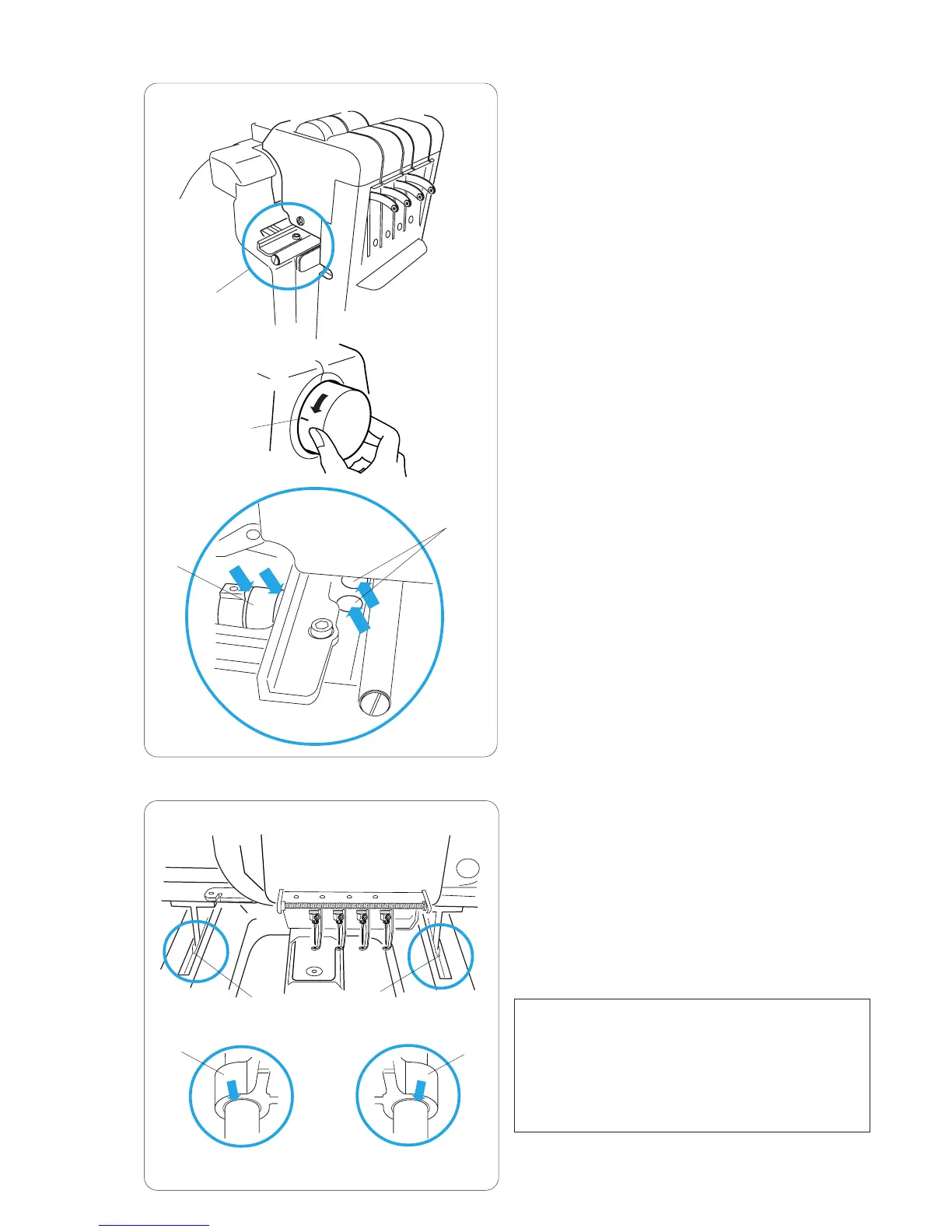

z Turn the machine on and select pattern #1.
Move the head to the right most position by
selecting needle bar #4.
The oiling points will be exposed.
Turn the machine off.
q Oiling points
x Turn the hand wheel to set the hairline at 9 o’clock
so the crank rod is accessible.
w Hairline
c Apply a few drops of oil to the crank rod.
Apply a few drops of oil to the main shaft through
the 2 holes.
e Crank rod
r Holes
v Apply a few drops of oil to the Y-carriage bushings
through the slit of the base cover.
t Slit
y Y-carriage bushing
q
w
e
r
t
t
y
y
NOTE:
Use only good quality sewing machine oil.
Apply oil only to the points indicated.
Do not apply too much oil, otherwise threads and
fabric may be stained with excess oil.
Wipe off any excess oil with a waste cloth.
