11

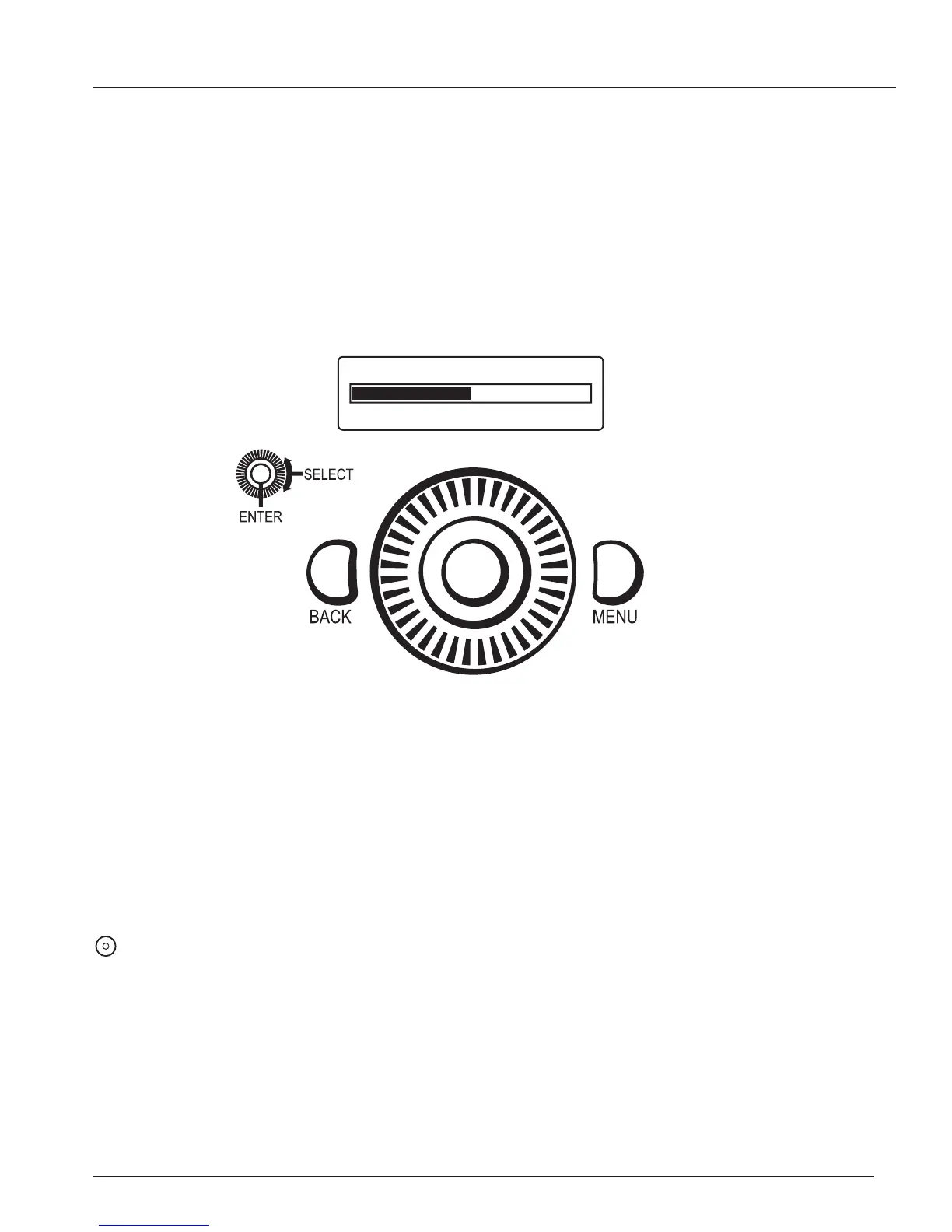

705P and 708P speakers include software-enabled features that can be accessed and adjusted using the MENU
key, the ROTARY CONTROL, along with the ENTER and BACK Keys.
To select and set the values of a particular feature:
• Press the MENU key. Rotate the ROTARY CONTROL to view the desired feature in the display.
• Press the ENTER key to select the feature.
• Use the ROTARY CONTROL and ENTER key to select the desired parameter and set its value.
• Use the BACK key to return to the previous menu item.
Example: Turn the ROTARY CONTROL clockwise to reduce the amount of speaker trim and thereby increase the
speaker volume. Turn the ROTARY CONTROL counter-clockwise to increase the amount of INPUT TRIM, thereby
attenuating the speaker volume. While viewing this screen, pressing the MENU key displays the complete list of
software controlled features
• Pressing the MENU Key consecutive times toggles the display from the currently selected function to the
INPUT TRIM screen and vice versa. When the controls have not been used for a period of time, the “toggle
function” will time-out and successive presses of the MENU key will no longer return the display to the
previously used feature. The length of time can be specied in the UTILITY/ MENU TIME screen.
Following is a list of features and the parameters that can be selected using this interface.
88
– This symbol indicates a feature
u – This symbol indicates a parameter of the feature that can be adjusted
[BOLD text] in brackets indicates the factory default setting.
The text immediately following the [BOLD text] indicates the available values.
Section 5: Menu of Software-Controlled Features
Input Trim
-12dB
