JBL 705P User Manual

17
PART NUMBER
DESCRIPTION
LSR705P SALES MODEL, LSR705P
NOTES: MOUNTING POINTS: 4XM6 - MAXIMUM CLEARANCE IN ENCLOSURE IS 3/4 IN (19MM). USE ONLY LOAD-RATED FASTENERS. RECOMMENDED FASTENER LENGTH: LESS THAN OR EQUAL TO 3/4 IN (19MM) IN LENGTH PLUS THICKNESS OF MOUNTING PLATE.
1
2
A A B C C D D
3
4
5
6
7
8
1
2
3
4
5
6
7
8
B
THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF HARMAN. DO NOT DISCLOSE, REPRODUCE OR PUBLISH WITHOUT WRITTEN HARMAN APPROVAL
TITLE
SIZE
REV
OF
SHEET
SCALE:
DRAWING NO.
DIMENSIONS SHOWN ARE FOR REFERENCE AND INSPECTION ONLY. REFER TO 3D MODEL PROVIDED WITH THIS DRAWING FOR OVERALL DEFINITION OF PART GEOMETRY.
D
1:2
1
5
1000247331
HARMAN
8500 Balboa Blvd Northridge, CA 91329 USA
S/M, LSR705P
TOLERANCES UNLESS OTHERWISE SPECIFIED
INCHES
0.XXX
0.005"
0.XX
0.01"
0.X
0.02"
FRACTIONNAL
1/32
DRAWN BY DESIGNED BY ENGINEER
DATE
DATE
2/3/2016
9/10/2014
ANGULAR:
0.5
BREAK ALL SHARP EDGES
XXX
INSPECTION DIMENSION
ROHS
RESTRICTION OF HAZARDOUS SUBSTANCES
ALL MATERIALS USED IN THIS PART MUST BE
ROHS COMPLIANT
SUPPLIER SHALL PROVIDE A CERTIFICATE OF
ROHS COMPLIANT WITH THE FIRST ARTICLE
THIRD ANGLE PROJECTION
M. NIETO J. SPILLMANN J. SPILLMANN
D
JBL Professional
MILLIMETERS 0.XXX
0.1mm
0.XX
0.2 mm
0.X
0.5 mm
10.56±.03
AFTER FINISH
4.43
1.60 2.70
10.80±.03
AFTER FINISH
4.43
1.60 2.70
5.94±.03
AFTER FINISH

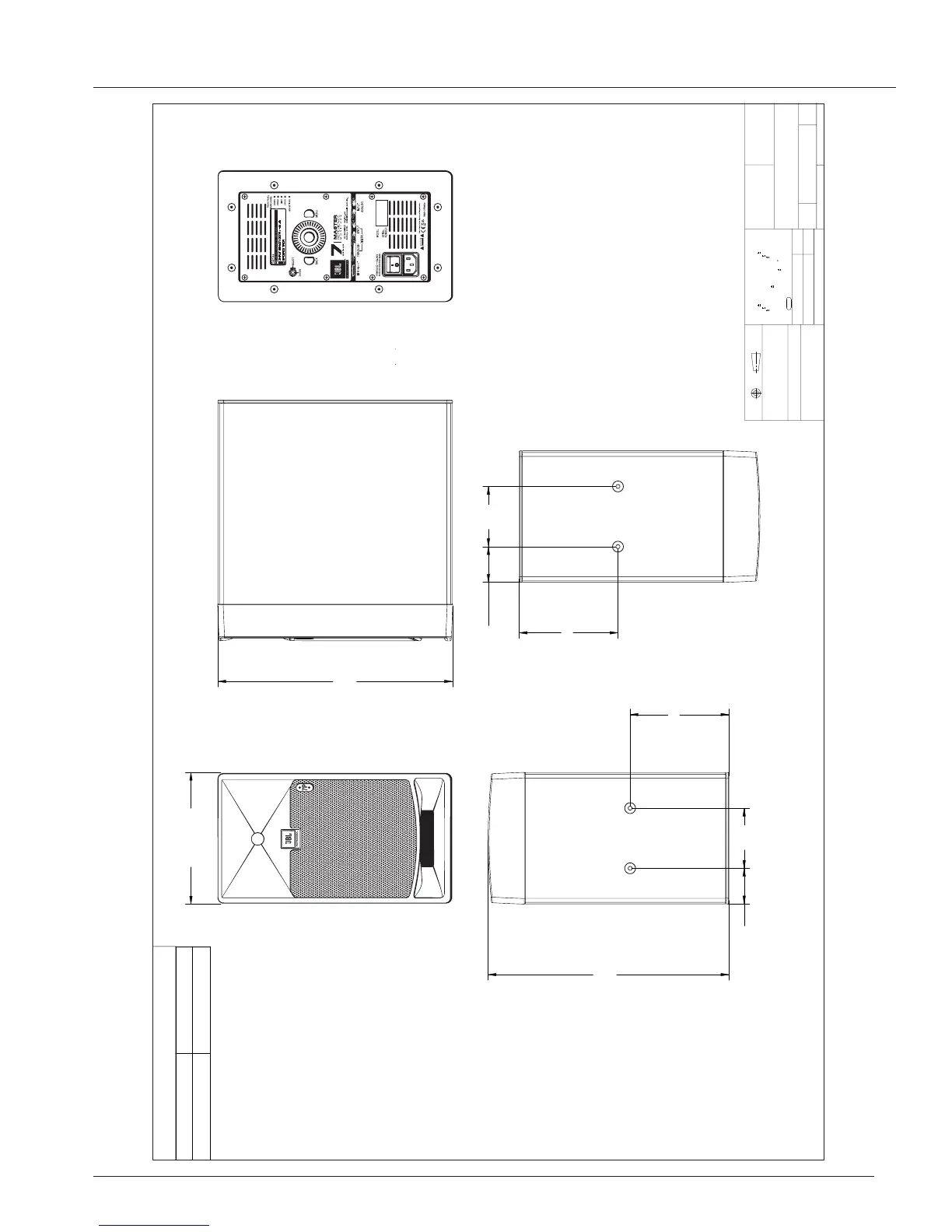

Section 8: Dimensional Drawings and Mounting Features

JBL 705P Specifications

General

Brand	JBL
Model	705P
Category	Speakers
Language	English
