Dolby Pro-Logic
Ò
Surround Processor/Amplifier ESC200

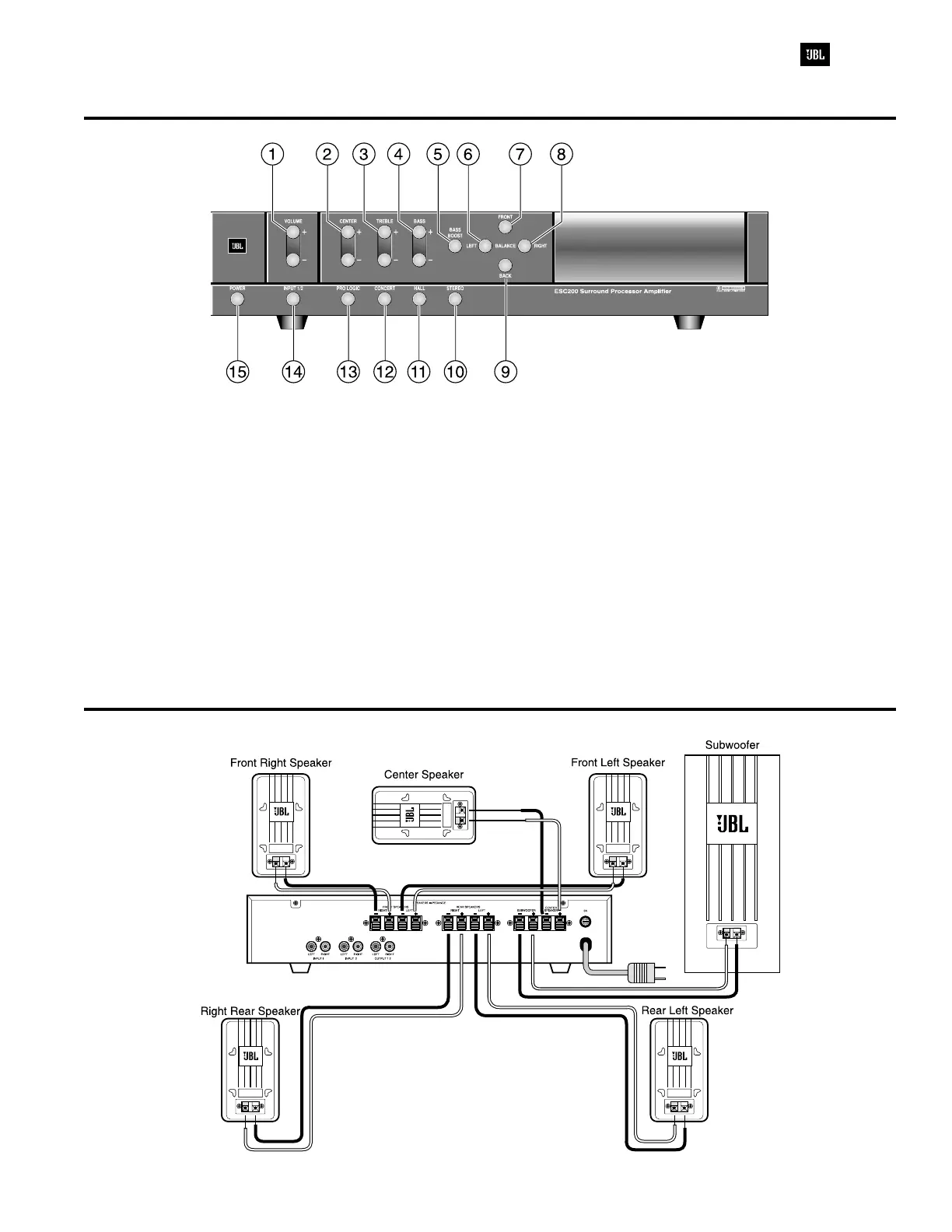

CONTROLS AND THEIR FUNCTION
1. VOLUME - This controls an increase (+) or
decrease (-) in volume.
2. CENTER - This controls the volume of the
Center Speaker.
3. TREBLE - This controls the level of the treble.
4. BASS - This controls the overall bass output.
5. BASS BOOST - This increases the bass output
to the subwoofer.
6-9. BALANCE - These buttons balance the front and rear
as well as the left and right speaker strengths.
10. STEREO - This turns on and off the stereo mode.
11. HALL - This changes the sound to Hall mode.
12. CONCERT - This changes the sound to Concert mode.
13. PRO-LOGIC - This turns on the Pro-Logic mode.
14. INPUT 1/2 - This swiches to either music source
connected to Input 1 or Input 2 (RCA jacks).
15. POWER - This button turns on the ESC200.
ESC200 SPEAKER AND SOURCE CONNECTIONS
To Next Page
