JBL HT PS300 User Manual

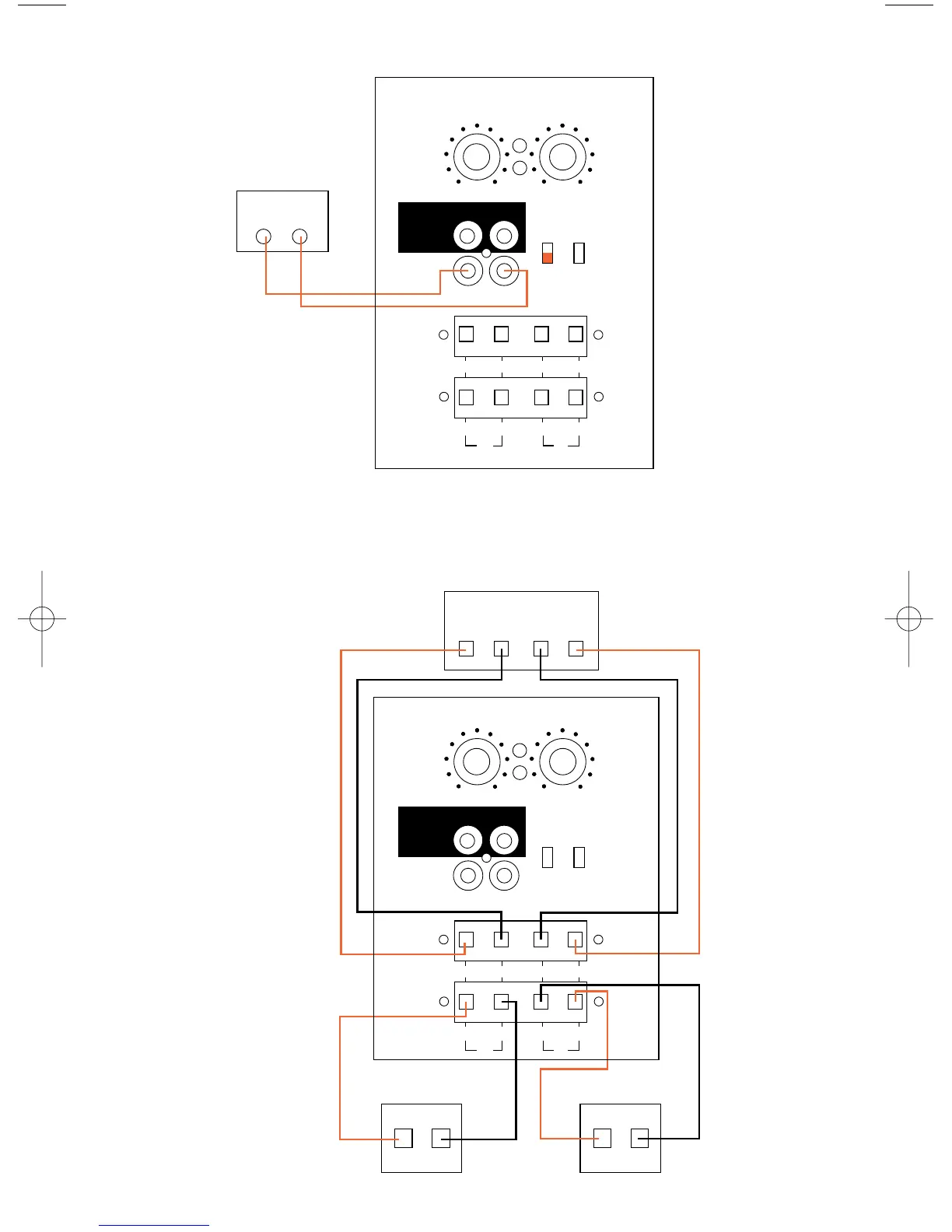

Normal Mode:
If your surround processor/
receiver does not contain a
subwoofer crossover.
High Level
Inputs
High Level
Outputs
L R
L R
Phase
0°
180°
On
Stby
0 10
50Hz 120Hz
+ – – +
+ – – +
Line
THX
THX
Controls
Bypassed
Line Level
Input
Input Output
( )
Subwoofer
Out
L R
Output
Level
Crossover
Frequency
Receiver/Amplifier
High Level
If your receiver does not
have subwoofer outputs:
High Level
Inputs
High Level
Outputs
L R
L R
Phase
0°
180°
On
Stby
0 10
50Hz 120Hz
+ – – +
+ – – +
+ – – +
+ –
Line
THX
THX
Controls
Bypassed
Line Level
Input
Input Output
( )
Left
Front Speaker
+ –
Right
Front Speaker
Front Speakers
Left Right
Output
Level
Crossover
Frequency
Receiver/Amplifier
Note: Some receivers/
processors have a mono
subwoofer output. In this
case, you must use a “Y”-
connector (not included) in
order to maximize the sub-
woofer’s performance.
HT PS 300 (120V) OM 7/22/98 2:05 PM Page 5

JBL HT PS300 Specifications

Power

amplifier power	200 watts

Drivers

driver size	12 inches
driver material	polymer-laminated cones

Inputs and Outputs

inputs	THX and normal line level, high level
outputs	high level

Frequency and Response

crossover frequency	50Hz – 120Hz
frequency response	25Hz – crossover point

Weight and Dimensions

dimensions	552 x 533 x 533 mm
weight	67 lbs/30.5 kg
