jcb 210 Series User Manual

210X 220X 5
J
P
M
F
D
C
A
B
L
G
E
H
N
K

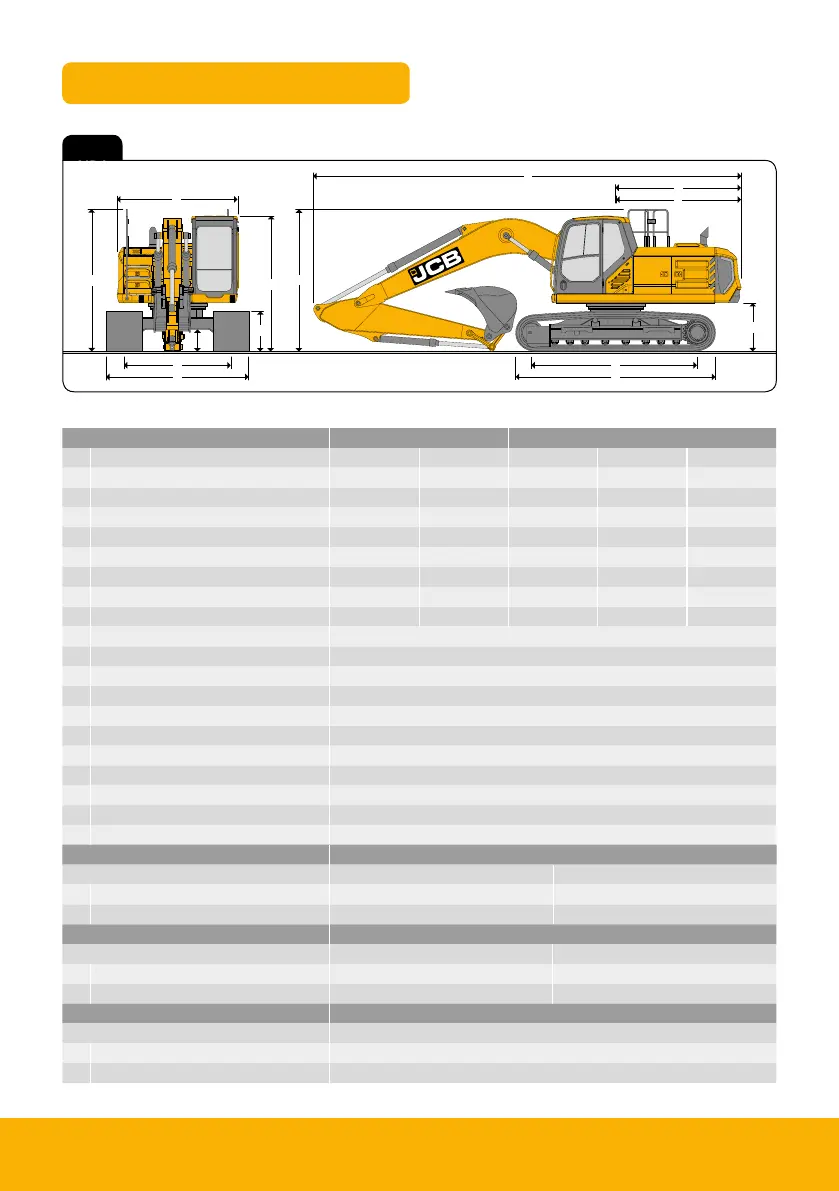

Fig 1
Static Dimensions
Fig 1
Dimensions in mm
Machine Type 210 220
Undercarriage options LC SC LC SLC SC
A Track length on ground 3660 3370 3660 3660 3370
B Undercarriage overall length 4460 4170 4460 4460 4170
C Track gauge 2390 2170 2390 2170 2170
D Width over tracks (500mm trackshoes) 2890 2670 2890 2670 2670
D Width over tracks (600mm trackshoes) 2990 2770 2990 2770 2770
D Width over tracks (700mm trackshoes) 3090 2870 3090 2870 2870
D Width over tracks (800mm trackshoes) 3190 2970 3190 2970 2970
D Width over tracks (900mm trackshoes) 3290 - 3290 - -
E Counterweight clearance 1077
F Tail length 2813
G Tail swing radius 2846
H Width of upper superstructure 2700
H Width of upper superstructure – Xd/Hd 2828
I Height over cab 3030
J Height over FOPS guard/Xd FOPS cage 3102
J Height over grab rail 3170
J Height over grab rail – folded handrail 2744
K Ground clearance 485
L Track height 885
Boom option Mono
Dipper lengths 2.4m 3.0m
M Transport length without bucket 9624 / 9597 9562 / 9540
N Transport height without bucket 3200 / 3090 3086 / 3025
Boom option TAB
Dipper lengths 2.4m 3.0m
M Transport length without bucket 9622 / 9600 9410 / 9424
N Transport height without bucket 3266 / 3225 3152 / 3170
Boom option LR
Dipper lengths 6.4m
M Transport length 12563
N Transport height 3080
