8025 ZTS, 8026 CTS, 8030 ZTS, 8035 ZTS 7
REFER TO OPERATORS MANUAL TRANSPORTING MACHINE
Lifting Points
Fig 4
The correct lifting positions are identified on the machine by their labels: Lifting point
position label.
Carry out the following procedure when lifting a machine:
1. Remove all attachments.
2. Remove all loose equipment from machine exterior.
3. Check the unladen weight of the machine.
4. Attach lifting equipment to each end of the dozer blade.
5. Attach lifting equipment to each side of the boom.
6. Take the weight of the machine. Make sure the slings do not interfere with the cab.
It may be necessary to use a spacer bar between the slings.
7. Check that the lifting eye is positioned directly above the machine centre of gravity.

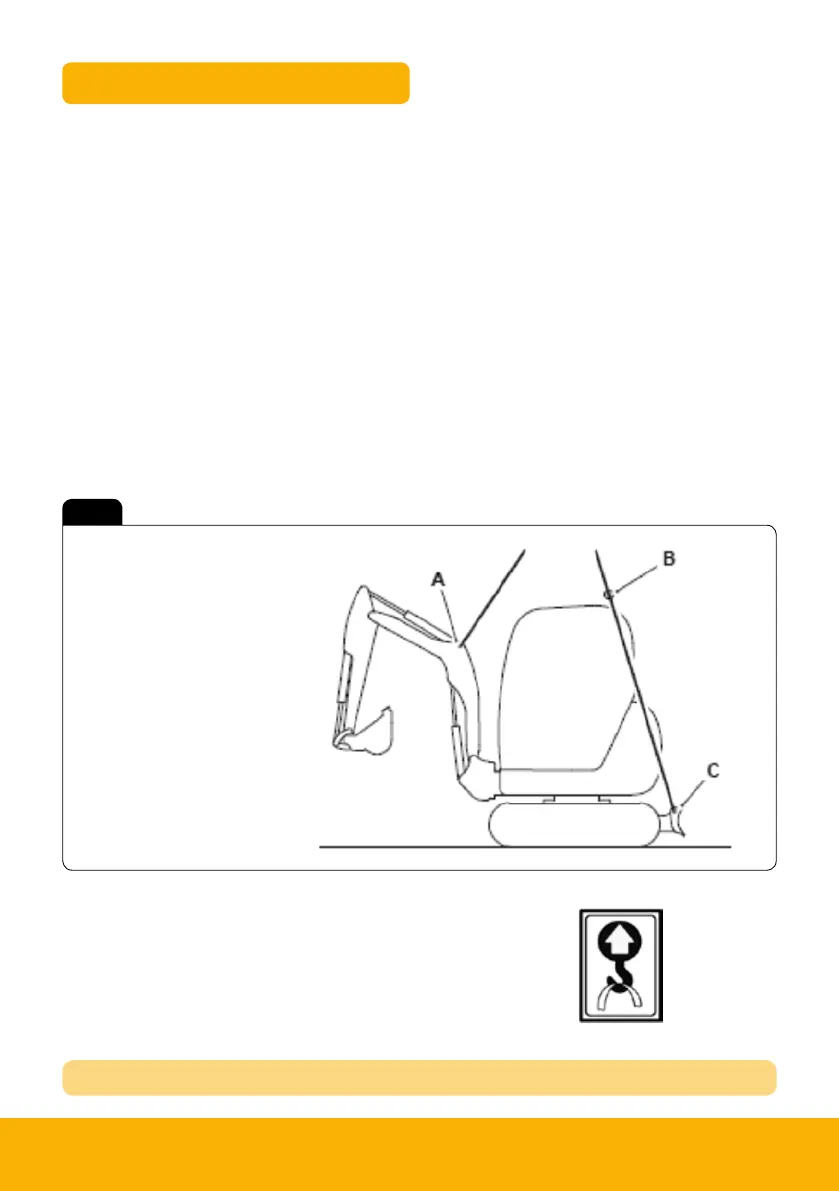

A Boom lift point
B Spacer bar
C Dozer blade lift point
C Skids
D Securing strap (kingpost
