About the Product
Interior Switches
15 9821/3700-4 15
Interior Switches
Ignition Switch
The ignition key operates the 4-position ignition switch. The ignition key can only be inserted or removed in
position O.
If the engine fails to start, the ignition key must be returned to position O before the starter motor is re-engaged.
Do not operate the starter motor for more than 10s without the engine firing. If the engine fires but does not fully
start, do not operate the starter for more than 40s. Let the starter motor cool for at least 2min between starts.
Table 4. Switch positions
Function
O Turn the ignition key to this position to stop the engine. Make sure the transmission is in neutral, the
attachments are lowered and the park brake is engaged before you stop the engine
I Turn the ignition key to this position to connect the battery to all of the electrical circuits (except the
lights and hazard warning lights which are permanently live). The ignition key will return to this posi-
tion when it is released from position II or III
II This position is not used
III Turn the ignition key to this position to operate the starter motor which turns the engine. (Only when
the transmission is in neutral)

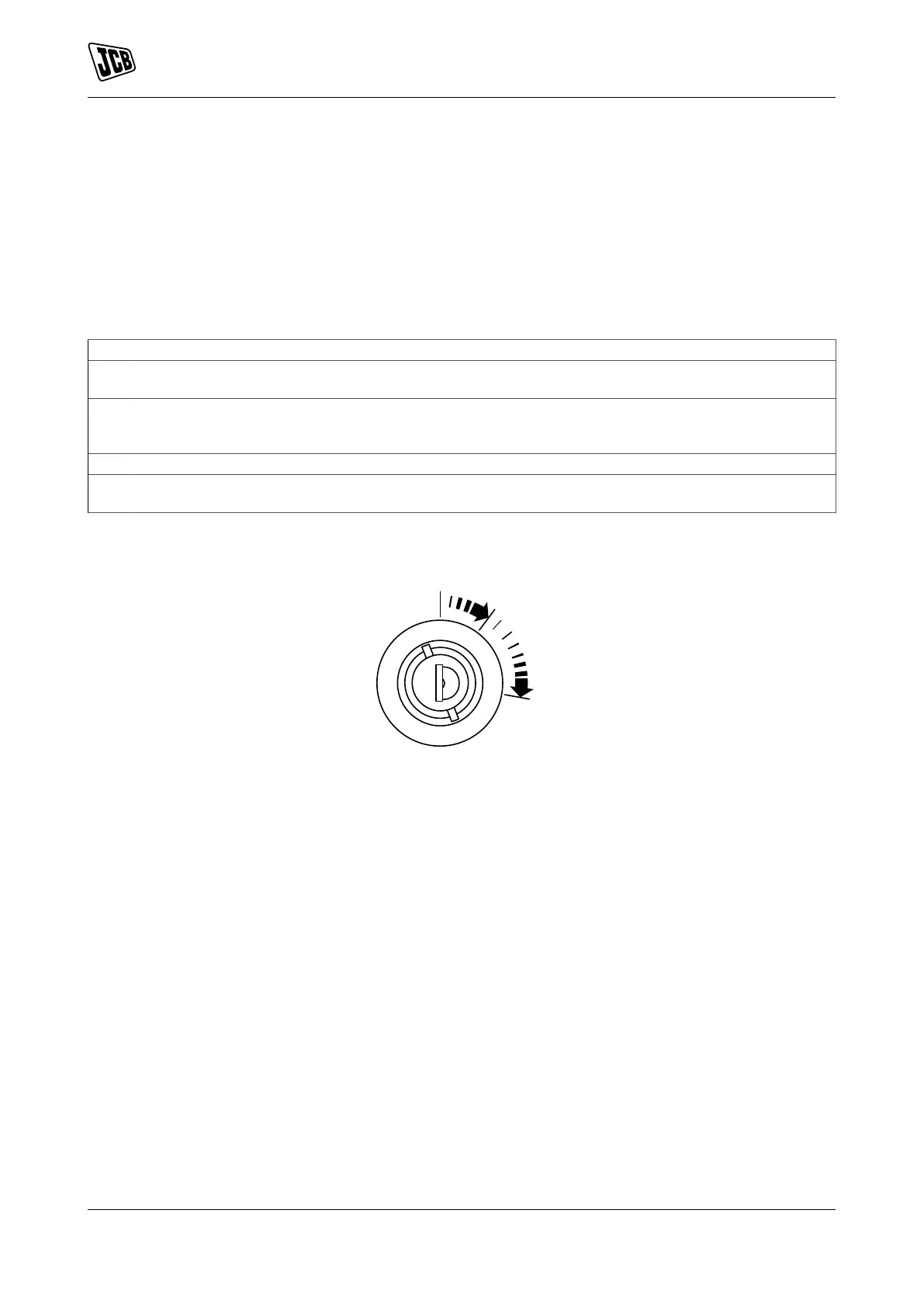

Figure 10.
Multi-Purpose Switch
Direction Indicators
Push the stalk forwards to indicate a left turn. Pull the stalk backwards to indicate a right turn. Place in central
position to cancel.
Windscreen Wiper
Rotate the switch barrel to activate and cancel the windscreen wipers. The wiper speed can vary dependant
on machine specification.
Single Speed (Standard)
0 = Off
I = On
Two Speed (Optional)
J = Intermittent wipe
0 = Off
