Interior Switches
Ignition Switch
The ignition key operates the four-position ignition switch. The ignition key can only be inserted or removed
in position 0.
If the engine fails to start, the ignition key must be returned to position 0 before the starter motor is re-engaged.
Do not operate the starter motor for more than 10 s without the engine firing. If the engine fires but does not
fully start, do not operate the starter motor for more than 40 s seconds. Let the starter motor cool for at least
2 min between starts.

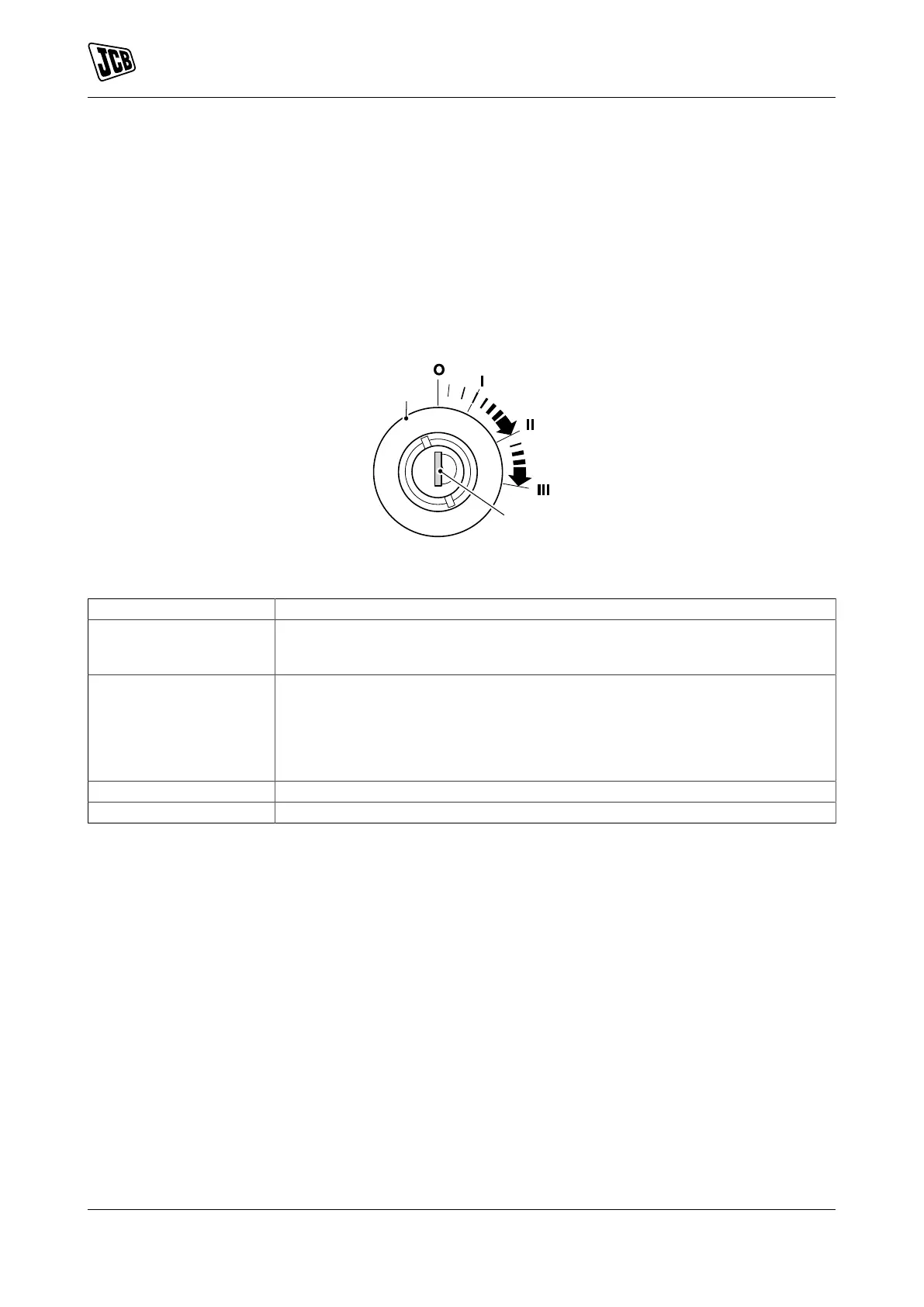

Figure 12.
A Ignition switch B Ignition key
Table 9. Switch Positions
Position Function
0 Turn the key to this position to stop the engine. Make sure the transmission is in
neutral, the attachments have been lowered and the park brake is engaged be-
fore stopping the engine.
I Putting the switch to this position connects the battery to all the electrical cir-
cuits except the lights and the hazard warning lights circuit (the lights and haz-
ard warning lights circuits are permanently live). The starter key will spring back
to this position when it is released from II or III. At -6 °C ( 21.2 °F), the cold start
warning light will illuminate to indicate the cold start inlet manifold heater has
come on.
II This position is not used in this application.
III Operates the starter motor to turn the engine.
Multi-Purpose Switch
Direction Indicators
Push the stalk forwards to indicate a left turn. Pull the stalk backwards to indicate a right turn. Place in central
position to cancel.
Windscreen Wiper
Rotate the switch barrel to activate and cancel the windscreen wipers. The wiper speed can vary dependant
on machine specification.
Single Speed
0 = Off
I = On
