06 - Body and Framework
06 - Access Cover
10 - Transmission Compartment
06 - 17 9813/5300-1 06 - 17
10 - Transmission Compartment
Open and Close
Open
1. Make the machine safe.
2. Stop the engine and remove the ignition key.
3. Apply the park brake.
4. Remove the steering hose cover.
5. Remove the bolts and washers from the floor
plate.
6. Do not open the floor plate when the engine is
running.

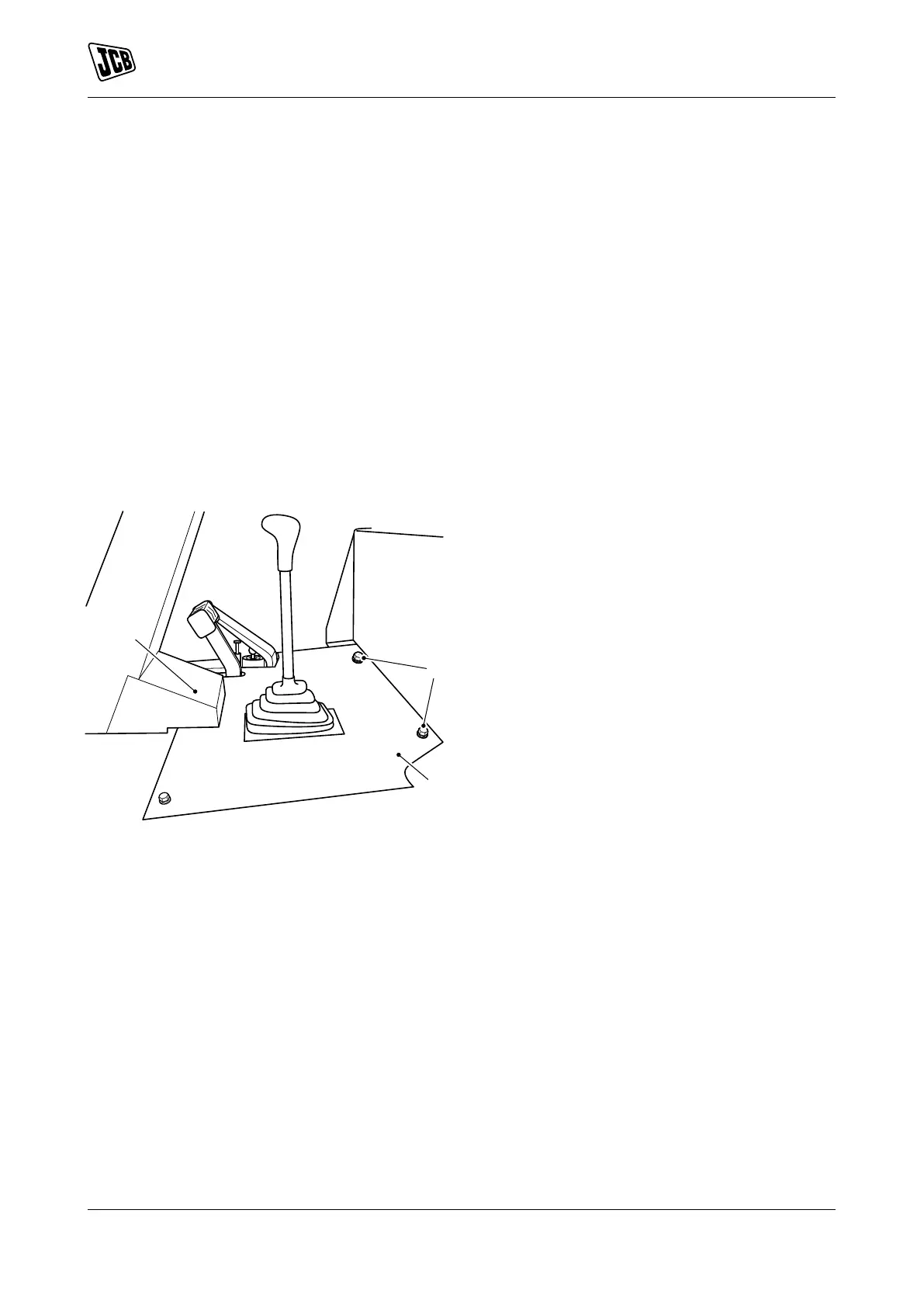

Figure 14.
A Lock
B Transmission cover
C Steering hose cover
Close
1. Check around the machine to ensure that no
object will become trapped with lowering of the
floor plate.
2. Use the bolts and washers to install the floor
plate. Refer to Figure 14.
3. Install the steering hose cover.
