Machine
Machine Identification Plate

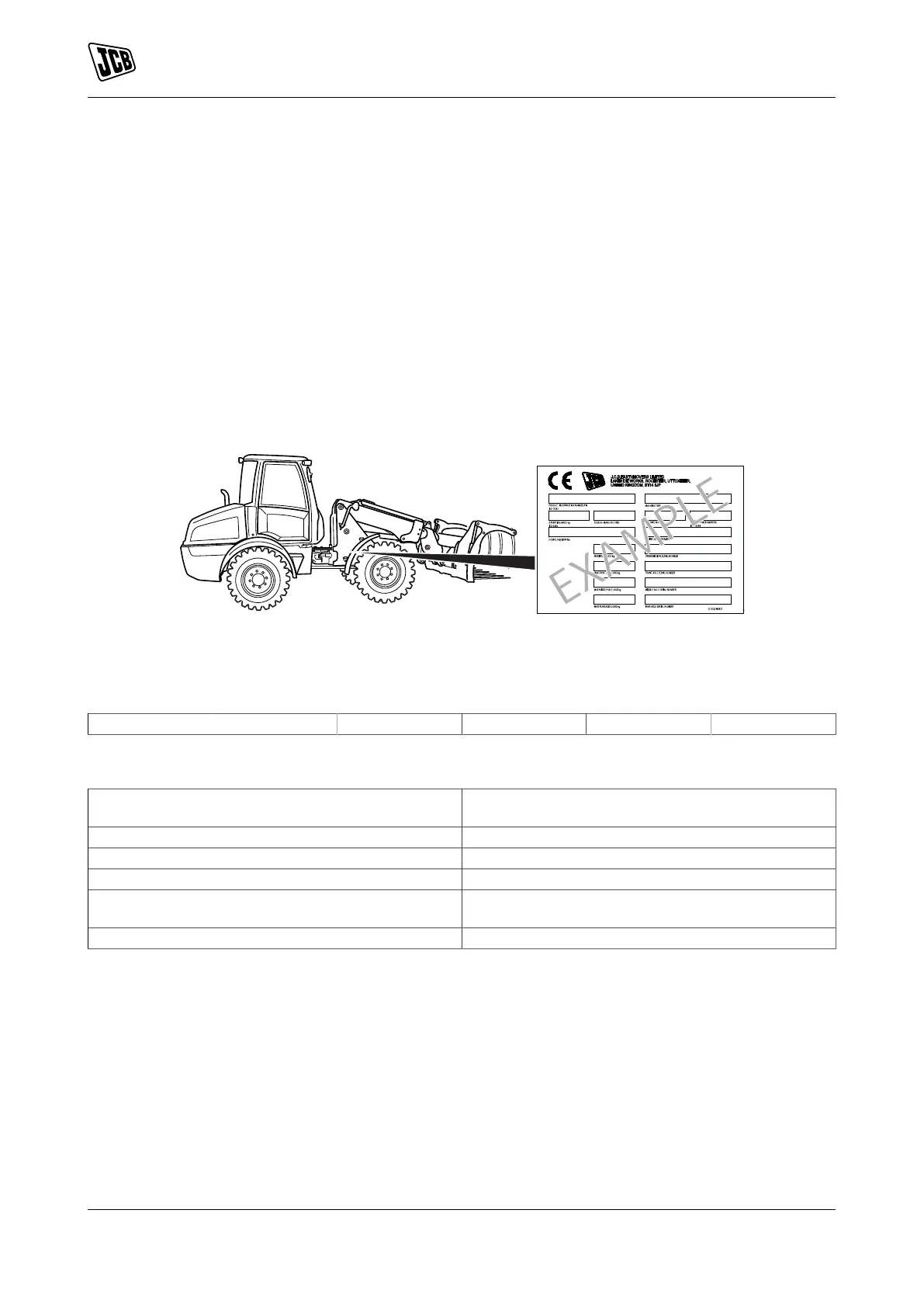

Your machine has an identification plate mounted as shown. The serial numbers of the machine and its major
units are shown on the plate.
The machine model and build specification is indicated by the PIN (Product Identification Number). Refer to PIN.
The serial number of each major unit is also shown on the unit itself. If a major unit is replaced by a new one,
the serial number on the identification plate will be wrong. Either get a replacement identification plate from
your JCB Dealer or simply remove the old number. This will prevent the wrong unit number being quoted when
replacement parts are ordered.
The machine and engine serial numbers can help identify exactly the type of equipment you have.
Figure 4.
Typical Product Identification Number
Table 1.
JCB 220 T S V 01234567
Table 2. Explanation of the Product Identification Number
1-3 World Manufacturer Identification. For example, JCB
= UK Build.
4-6 Machine type and model
7 Telescopic end
8 Designation: O = Non-Farmmaster, S = Farmmaster
9 Random check letter. The check letter is used to veri-
fy the authenticity of a machine's PIN.
10-17 Machine serial number
Each machine has a unique serial number.
Engine
The engine data labels are attached to the cylinder block as shown. Refer to Figure 5.
The data label includes the engine identification number.
