Jeep Urban Camou User Manual

07
Assembled item, the handlebar must be installed using the special screws contained in the package.

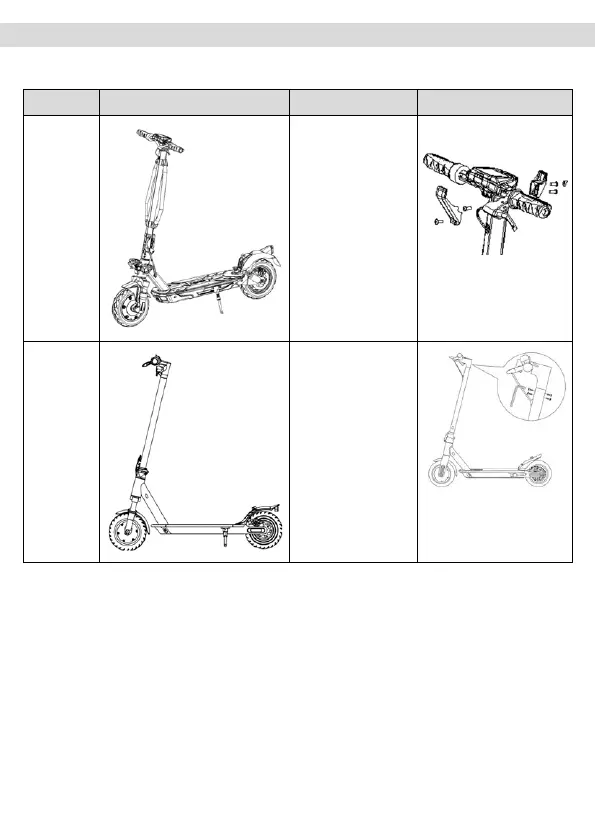

Model Reference picture In the package Handlebar assembly
Adventurer
Urban
Camou
1x Allen key
1x Battery charger
4x Handlebar screws
1x Air chamber
4x Stickers
1x Screw-cover plate
1x Transport hook
1x Adaptor for tires
ination
Follow the steps on the
next paragraph to properly
assemble the parts shown in
the image.
Sentinel
1x Allen key
1x Battery charger
4x Handlebar screws
1x Air chamber
4x Stickers
1x Adaptor for tires
ination
Insert the 4 screws manually
without tightening them, then
use the hex wrench supplied
to tighten them and secure the
handlebars.
Method:
Urban Camou / Adventurer:
• Open the package and remove the upper packaging materials.
• Liftthesteeringcolumnandinsertthehandlebarkeepingattentiontonotattenthecables.
• Fix the steering column by folding the closing lever. Push downward the locking ring of the folding mechanism.
• Place the hook on the inner side of the steering column and insert the 2 screws (with reduced head) without tightening
them.
• Insertthescrew(reducedhead)intherstholeontheoppositesideofthesteeringwheel.
• Tighten the 3 screws previously inserted.
• Place the screw-cover plate between the remaining hole and the cover display, insert the screw (large head) and tighten
it as needed in order to not damage the plate.
• Pick up the product from the package, open the kickstand and check for the product stability.
• Adjust the steering wheel closing mechanism (if * needed).
• Check the tire pressure (see the side of the tire for the recommended value).
2. Package contents and assembly
