AV-In 1 / AV-In 2
AV-In 1
AV-In 1 is used for playback of audio/video from an external device connected
to the unit through a 3.5mm connector located on the front panel.
AV-In 2
AV-In 2 is used for playback of audio/video from an external device connected
through RCA connectors located on the back of the unit.
You can connect an external audio/video device to the unit.
1. Connect the external device with an appropriate AV cable.
2. Touch the upper left corner to display the main menu.
3. Touch [Aux 1] / [Aux 2] to access external device.
3.5mm A/VCable (not included)
V ideo
Left Audio
Right Audio
Ground
1
2
3
4

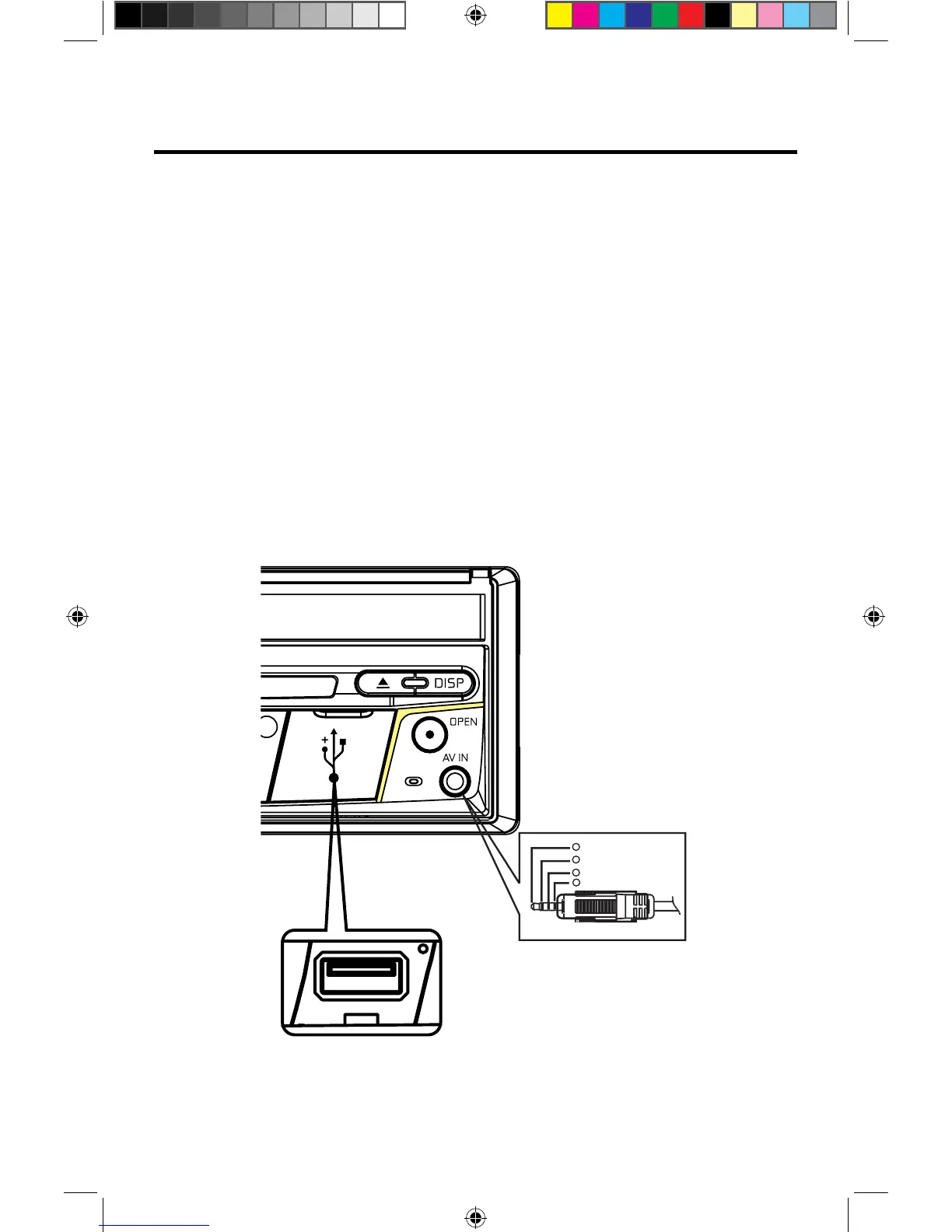

Figure 30. Connecting External Devices
NOTE: Audio/Video devices must be connected to this unit using an audio/
video adapter cable that is available separately.
NOTE: Video will only play when the vehicle parking brake is engaged. The
parking brake wire must be connected for this feature to operate.
