E n g l i s h --- 1 2
115305026 Rev. 3 7/15/10
ASSEMBLY

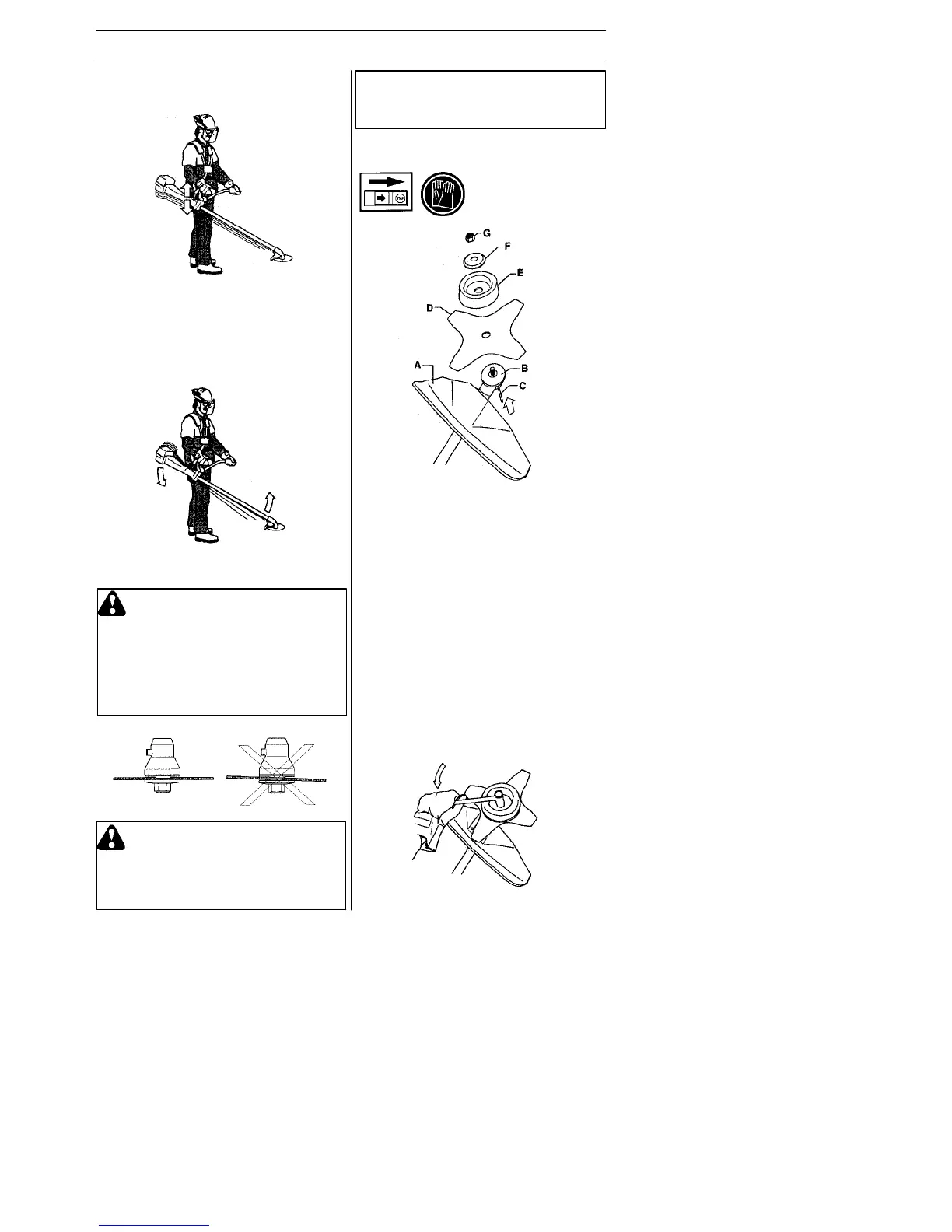

Fitting a blade guard, grass
blade and grass cutter
S Hook the blade guard/combination guard
(A) onto the fitting on the shaft and secure
with the bolt.
CAUTION! Use the recommended blade
guard. See the Technical data section.
S Fit the drive disc (B) on the output shaft.
S Turn the blade shaft until one of the
holes in the drive disc aligns with the
corresponding hole in the gear housing.
S Insert the locking pin (C) in the hole to
lock the shaft.
S Place the blade (D), support cup (E) and
support flange (F) on the output shaft.
S Fit the nut (G). The nut must be tight-
ened to a torque of 35--50 Nm (3.5--5
kpm). Use the socket spanner in the tool
kit. Hold the shaft of the spanner as
close to the blade guard as possible. To
tighten the nut, turn the spanner in the
opposite direction to the direction of rota-
tion (CAUTION! left--hand thread).
Fitting blades and trimmer
heads
W ARNING: Never use a cutting
attachment without an approved
guard. See the section on Techni-
cal data. If an incorrect or faulty
guard is fitted this can cause seri-
ous personal injury.
IM PORTANT!
Ifasawbladeorgrassbladeistobeused,
the machine must be equipped with the cor-
rect handlebar, blade guard and harness.
Correct balance
Let the cutting attachment rest lightly on the
ground. If you use a saw blade, it should bal-
ance about 4 inches (10 cm) above the
ground to prevent contact with stones and
the like. Adju st the position of the harness
clamp to balance the unit correctly .
Correct height
Adjust the harness so that the cutting at-
tachment is parallel to the ground.
W ARNING: When fitting the
cutting attachment it is extremely
important that the raised section
on the drive disc/support flange
engages correctly in the centre hole
of the cutting attachment. If the
cutting attachment is fitted incorrect-
ly it can result in serious and/or fatal
personal injury .
