9 Installation
ATTENTION!
During installation, make sure that both supports touch
the ground at the same time when the landing gear
is lowered. Loading the supports unevenly will lead to
damage.
Materials required:
28 Hex bolts M16 8.8. Determine the length based on the vehi-
cle chassis
28 Hex nuts M16 8.8
28 Washers
ATTENTION!
Tightening torque for all bolts 190 + 10 Nm.
Retract supports (1) fully.
Check the length of the connection shaft (2) and adapt if nec-
essary.
Position the supports at right angles to the chassis of the
trailer vehicle.
Align supports parallel with each other.
Insert the connection shaft (2). The connection shaft must
be 25 mm shorter than the distance between the fastening
flanges on the trailer vehicle.

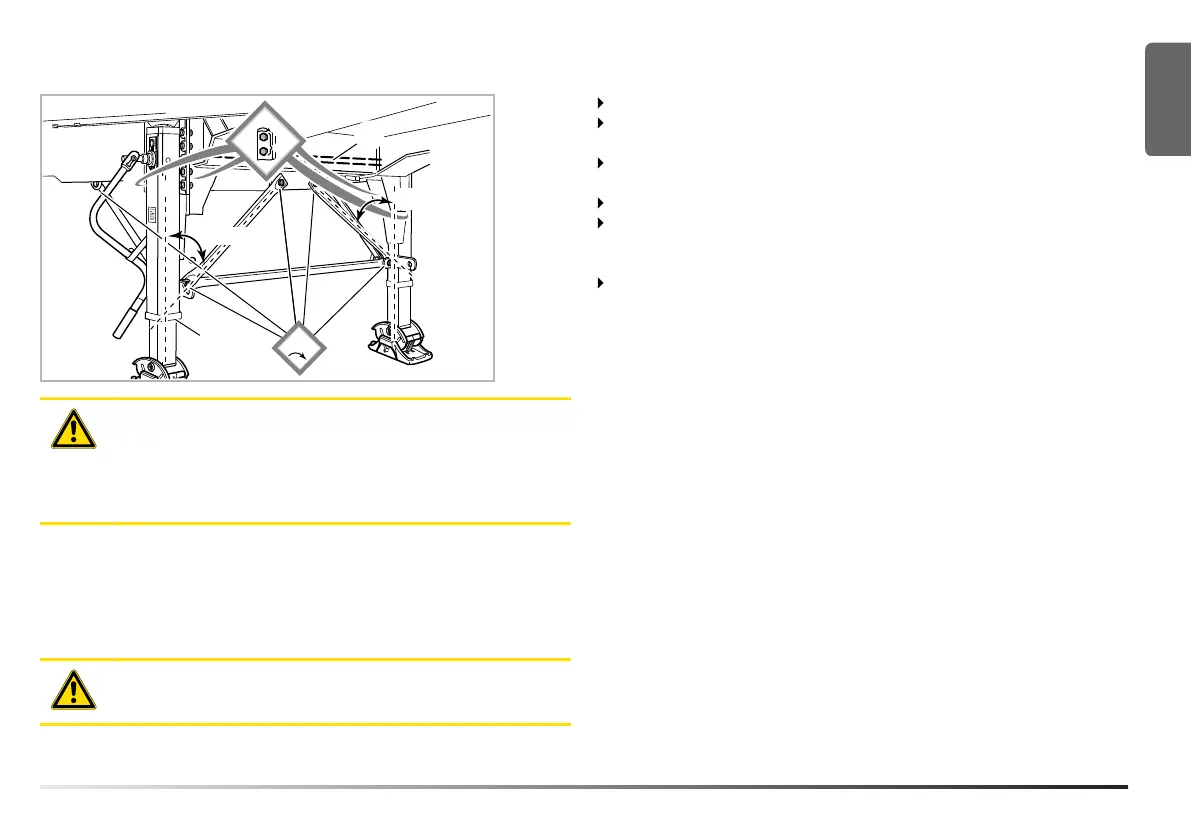

Secure the landing gear strut at an angle of min. 45°, as
shown in the drawing.
EN
Modul B & OPTIMA MUB 006 003 M01 (REV-A) 07-2020 19
