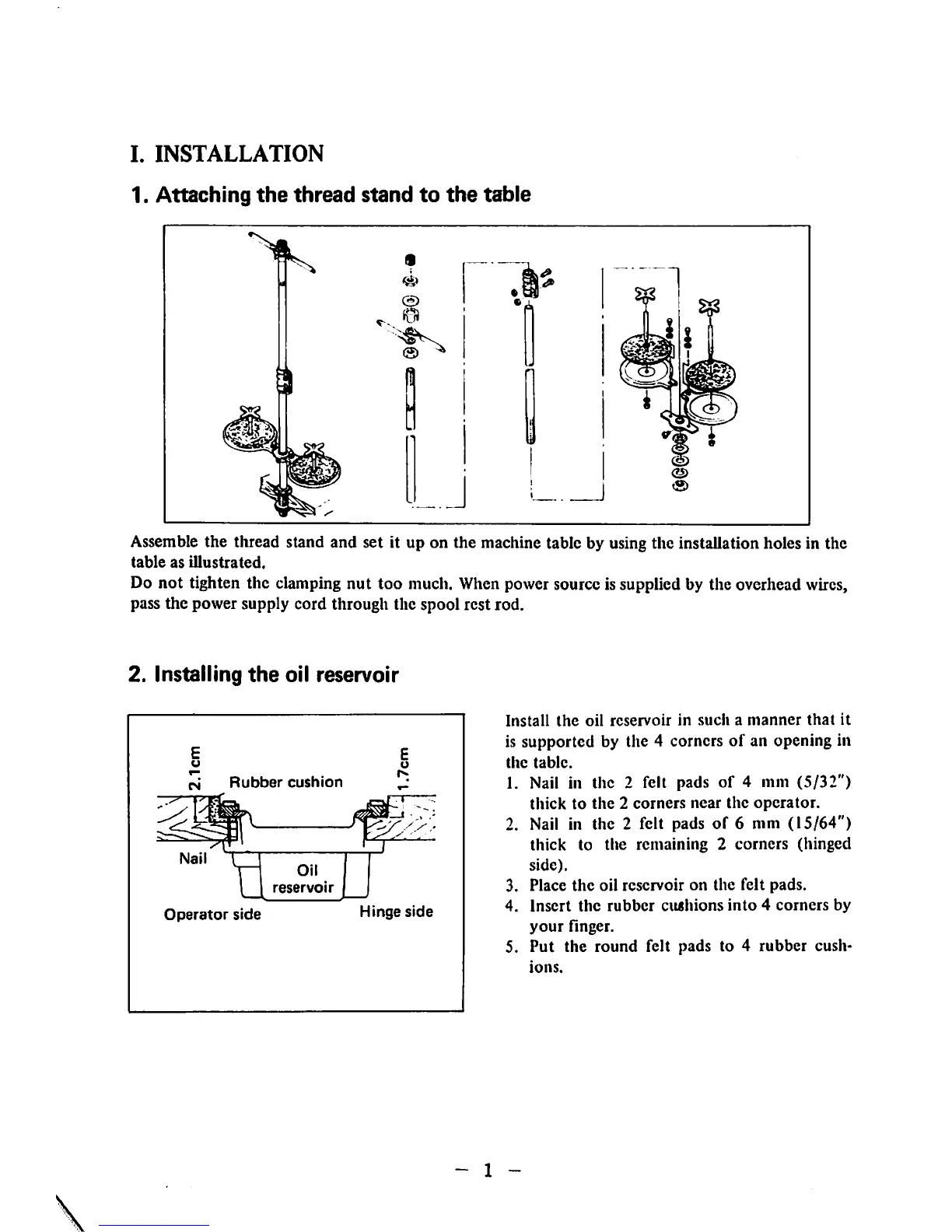

I.
INSTALLATION
1.
Attaching
the
thread
stand
to
the
table
Assemble the thread stand and set it up on the machine table by using the installation holes in the
table
as
illustrated.
Do not tighten the clamping nut too much. When power source is supplied by the overhead wires,
pass the power supply cord through the spool rest rod.
2. Installing
the
oil reservoir
oi
Rubber
cushion
j-vf-r
reservoir
Operator
side
Hinge
side
Install
the
oil
reservoir
in
such
a
manner
that
it
is supported by the 4 corners of an opening in
the
table.
1. Nail in the 2 felt pads of 4 mm (5/32")
thick
to
the
2
corners
near
the
operator.
2. Nail in the 2 felt pads of 6 mm (15/64")
thick
to the remaining 2
corners
(hinged
side).
3. Place
the
oil reservoir on the
felt
pads.
4.
Insert
the
rubber
cushions
into
4
corners
by
your
finger.
5.
Put
the
round
felt
pads
to 4
rubber
cush
ions.
- 1 -
