JUKI DDL-9000B-SH User Manual

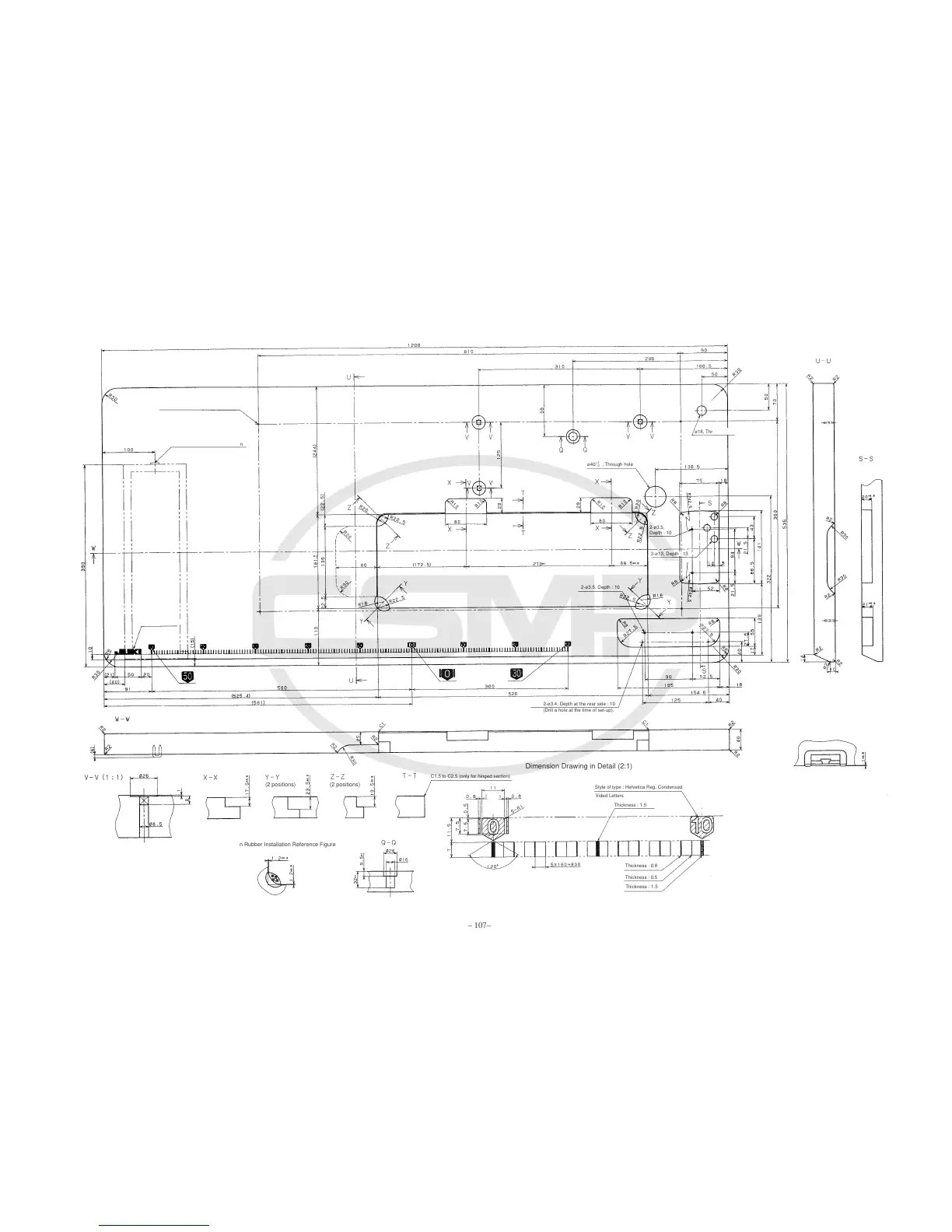

10. Drawing of the table
Part No. : 23642200
– 107–
4-ø3.4, Depth at the rear side : 20
(Drill a hole at the time of set-up).
Drawer stopper installing position
(on the under surface)
(3 positions)
(2 positions)
Logo type,
designated by JUKI
(2 positions)
(2 positions)
Y-Y Section Rubber Installation Reference Figure
X-X Section Rubber Installation Reference Figure
C1.5 to C2.5 (only for hinged section)
Dimension Drawing in Detail (2:1)
Style of type : Helvetica Reg. Condensed
Vided Letters
Thickness : 1.5
Thickness : 0.8
Thickness : 0.5
Thickness : 1.5
2-ø3.4, Depth at the rear side : 10
(Drill a hole at the time of set-up).
2-ø3.5, Depth : 10
3-ø13, Depth : 13
2-ø3.5,
Depth : 10
ø40 , Through hole
+1
0
ø18, Through hole
