– 1 –
DDL-9000B-SS DDL-9000B-SH DDL-9000B-MA DDL-9000B-MS DDL-9000B-DS
Minute-quantity lubrication Minute-quantity lubrication
Semi-dry *4 Semi-dry Dry
For standard materials
For heavy-weight materials For light-weight materials
For standard materials For standard materials
1 Max. sewing speed 5000sti/min *1 4500sti/min *1 5000sti/min *1, *4 4000sti/min
2 Max. stitch length Difference of stitch length 5 mm Difference of stitch length 5 mm
3 Needle bar stroke 30.7mm 35mm 29mm 30.7mm 30.7mm
4
Take-up lever stroke (standard value)
110mm 108mm 110mm 110mm 110mm
5 Thread trimming method Horizontal type
6 Lower bobbin winder unit Built-in, top surface of machine head (with bobbin thread holding plate)
7 Wiper (only for WB specification) Electromagnetic side wiper
8 Automatic reverse feeding unit Built-in electromagnetic type
Plate (needle bar) Oil wick lubrication Grease lubrication
9 Hook Plunger pump type No lubrication
Gearbox Sealed type
Plate (needle bar) With oil tank (capacity: 200 ml) No lubrication
Hook With oil tank (capacity: 200 ml) No lubrication
JUKI New Defrix Oil No. 1 or Exclusive grease
Plate (needle bar) JUKI Machine Oil 7 JUKI Grease A (product No.: 40006323) 20g contained
(equivalent to ISO VG7) *2
JUKI New Defrix Oil No. 1 or JUKI Machine Oil 7
(equivalent to ISO VG7) *2
Gearbox JUKI New Defrix Oil No.2 (equivalent to ISO VG32) *3
12 Lifting amount of presser Presser lifter lever: 5.5 mm/By knee: 15 mm/AK: 8.5 mm
DB x 1 (#11) DB x 1 (#21) DB x 1 (SF#9) DB x 1 (#11) DB x 1 (#11)
#9 to 18 #20 to 23 #8 to 11 #9 to 18 #9 to 18
DP x 5 (#75) DP x 5 (#130) DP x 5 (#65) DP x 5 (#75) DP x 5 (#75)
#65 to 110 #125 to 160 #60 to 75 #65 to 110 #65 to 110
134 (Nm75) 134 (Nm130) 134 (Nm65) 134 (Nm75) 134 (Nm75)
Nm65 to 110 Nm125 to 160 Nm60 to 75 Nm65 to 110 Nm65 to 110
Sewing space width
303mm
14 Dimensions
Sewing space height
139mm
Bed size 178mmX517mm
15 Machine head weight 38kg, 40kg (with AK)
16 Power consumption SC-920 : 320VA
17
Working temperature and humidity
Temperature: 5 °C to 35°C, humidity: 35% to 85% (No dew condensation permissible)
18 Supply voltage and frequency Rated voltage ±10%, 50/60Hz

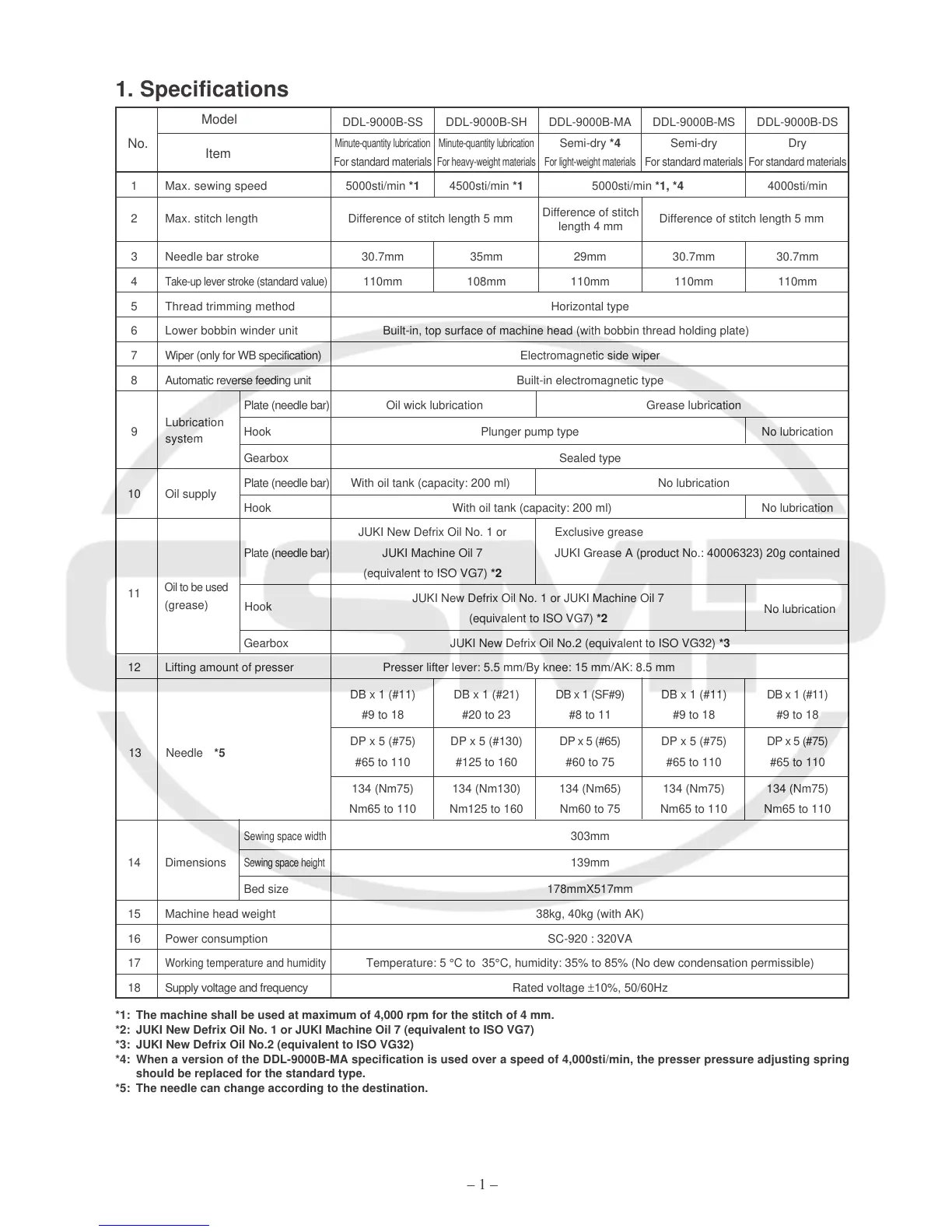

1. Specifications
Model
Item
10 Oil supply
No.
11
Hook
*1: The machine shall be used at maximum of 4,000 rpm for the stitch of 4 mm.
*2: JUKI New Defrix Oil No. 1 or JUKI Machine Oil 7 (equivalent to ISO VG7)
*3: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
*4: When a version of the DDL-9000B-MA specification is used over a speed of 4,000sti/min, the presser pressure adjusting spring
should be replaced for the standard type.
*5: The needle can change according to the destination.
No lubrication
Oil to be used
(grease)
Lubrication
system
Difference of stitch
length 4 mm
13 Needle *5
