4. LUBRICATION (DDL-9000B-S , -M )
WARNING :
1. Do not connect the power plug until the lubrication has been completed so as to prevent
accidents due to abrupt start of the sewing machine,
2. To prevent the occurrence of an inammation or rash, immediately wash the related portions if oil
adheres to your eyes or other parts of your body.
3. If oil is mistakenly swallowed, diarrhea or vomitting may occur. Put oil in a place where children
cannot reach.
Upper
engraved
marker line
marker line
1
2
3
Upper
engraved

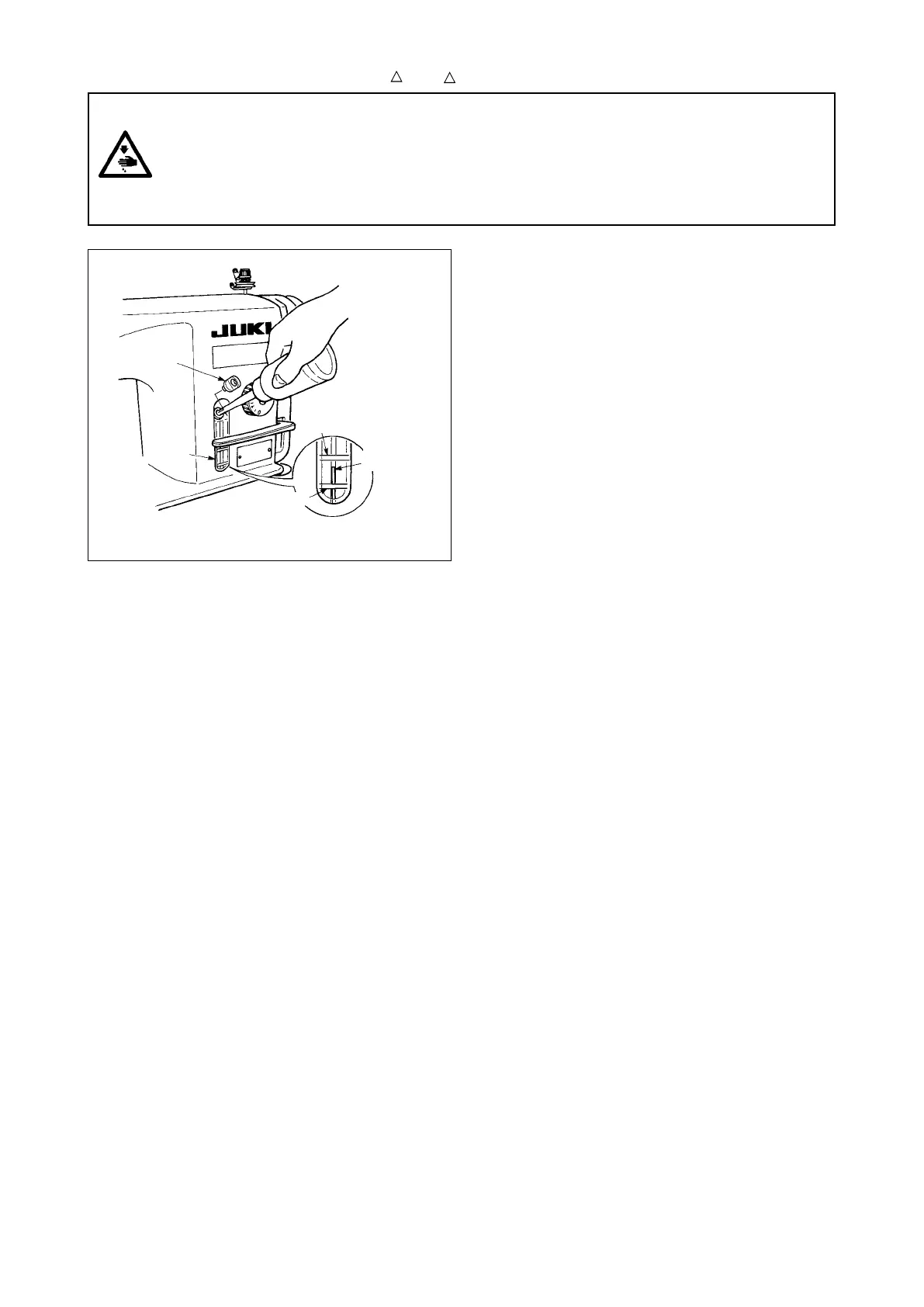

Fill the oil tank with oil for hook lubrication before op-
erating the sewing machine.
1) Remove oil hole cap
1
and ll the oil tank with
JUKI NEW DEFRIX OIL No.1 (Part No. : MD-
FRX1600C0) or JUKI MACHINE OIL #7 (Part
No. : MML007600CA) using the oiler supplied
with the machine.
2) Fill the oil tank with the oil until the top end of
oil amount indicating rod
3
comes between the
upper engraved marker line
A
and the lower
engraved marker
B
line of oil amount indicating
window
2
.
If the oil is lled excessively, it will leak from the
air vent hole in the oil tank or proper lubrication
will be not performed. In addition, when the oil
is vigorously lled, it may overow from the oil
hole. So, be careful.
3) W
hen you operate the sewing machine, rell oil if the top end of oil amount indicating rod
3
comes down
to the lower engraved marker line of oil amount indicating window
2
.
(Caution)
1. When you use a new sewing machine or a sewing machine after an extended period of disuse, use
the sewing machine after performing break-in at 2,000 sti/min or less.
2. For the oil for hook lubrication, purchase JUKI NEW DEFRIX OIL No. 1 (Part No. : MDFRX1600C0) or
JUKI MACHINE OIL #7 (Part No. : MML007600CA).
3. Be sure to lubricate clean oil.
4. Do not operate the machine with the oil hole cap
1
removed. Never remove cap
1
from the oil inlet
in any case other than oiling. In addition, take care not to lose it.
– 5 –
