Service Manual
HZL-27Z
Model

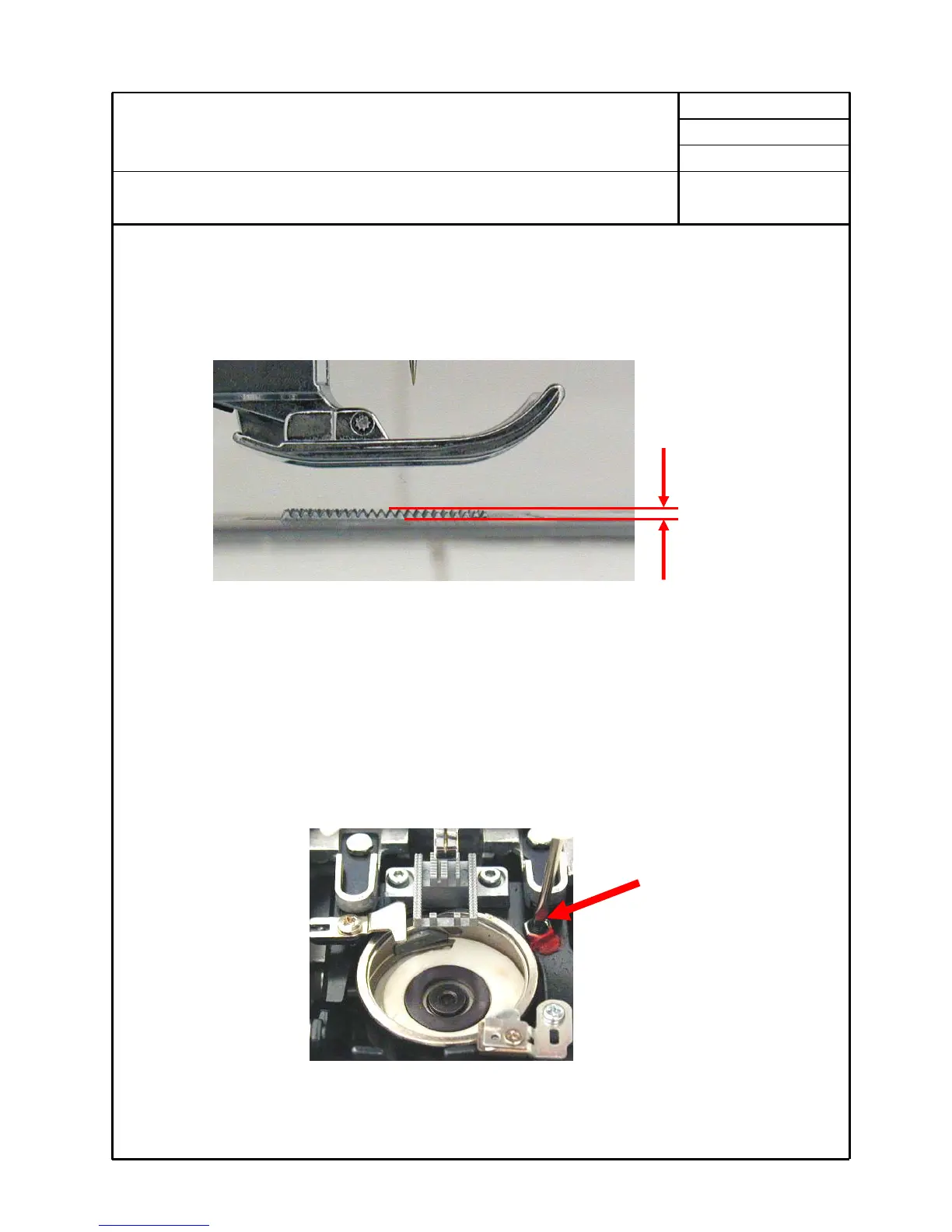

2. Feed dog height
〔Checking〕
1. Move the feed dog to its highest position by turning hand wheel. Confirm if the feed
dog height is 0.89-1.09 mm from needle plate.
〔Adjustment〕
1. Remove needle plate.
2. Turn the screw A to adjust the height.
Feed dog is too low. → Turn it clockwise
Feed dog is too high. → Turn it counter clockwise.
0.89～1.09 ｍｍ
Ａ
