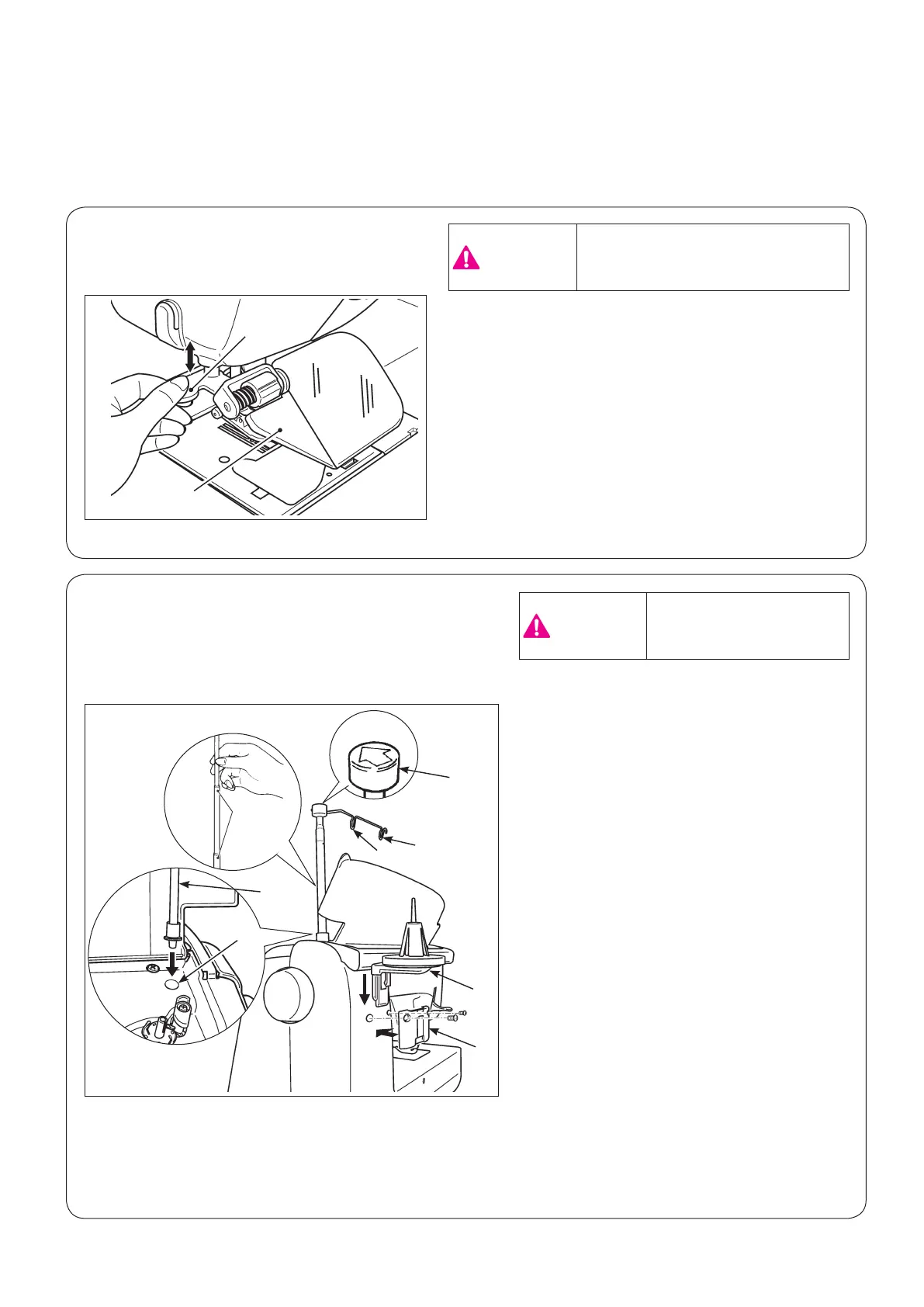

Magnier
Creates additional magnication to the stitch area.
●
Spool holder
A spool on which thread is thickly wound can be set.
This spool is useful when sewing many stitches at a
time such as quilting.
1) To install the magnier, carefully insert it into the
mounting hole.
2) To adjust the magnier position, carry out adjustment
holding translucent section
B
on the left side of the
lens surface.
3) To remove the magnier, carefully draw it out holding
handle section
A
.
* If the magnier lens surface looks apparently dirty,
wipe it clean with a piece of soft cloth in order to pre-
vent the lens from being damaged.
1
Attaching the spool holder.
・
Install base plate
A
on the back surface of
the sewing machine with two screws.
・
Carefully insert spool holder
B
into plate
A
until you hear a snick.
2
Attaching the thread guide post.
・
Open the top cover of the sewing machine
and insert the thread guide post
C
into
mounting hole
D
.
・
Fit thread guide
E
over the thread guide
post with the arrow on the top of the former
faced toward the front of the sewing ma-
chine.
3
Raise the thread guide post fully.
・
Turn the spool holder until it engages the
positioning stopper
F
with a click.
4
Set the thread on the spool holder. Draw the
thread from the spool which is thickly wound
with thread you have placed on the spool
holder. Put the thread on thread guide
G
-1
and
G
-2 in the written order and thread the
machine head as usual.
A
G
-1
B
D
E
1
2
3
2
F
C
G
-2
Attention
If you pull out the magnier swift-
ly, your nger may be injured or
the cover can be broken.
Attention
If you pull the spool
holder diagonally or
swiftly, it can be broken.
