NAME
LCD display
READY key
RESET key
MODE key
PRESSER key
WINDER key
PATTERN NO. key
DATA key
COUNTER key
ITEM SELECTION
key
DATA CHANGE
key
SHAPE key
THREAD TENSION AT
PARALLEL SECTION key
THREAD TENSION AT
BAR-TACKING SECTION
key
PITCH key
FUNCTION
Various data such as pattern No.,
shape, etc. are displayed.
Press this key when starting sewing.
Every time this key is pressed, change-
over of sewing ready set state and data
set state can be performed.
Press this key when releasing error,
travelling the feed mechanism to its
initial position, counter resetting, etc.
Press this key when changing data of
the memory switches.
This key lifts or lowers the presser, and
the needle bar travels to the right.
When this key is pressed, and the sewing
machine enters the bobbin winding mode.
This key selects pattern No. display.
This key selects data display.
Thus key selects counter display.
This key selects pattern No., data No.,
etc.
This key changes various data.
This key selects shape display.
This key selects thread tension at
parallel section display.
This key selects thread tension at bar-
tacking section display.
This key selects pitch of parallel
section.
No.
!6
!7
!8
!9
@0
@1
@2
@3
@4
@5
@6
@7
@8
@9
#0
NAME
OVEREDGING
WIDTH key
BAR-TACKING
WIDTH, LEFT key
BAR-TACKING
WIDTH, RIGHT
key
CLOTH CUT
LENGTH key
CLEARANCE key
KNIFE GROOVE
WIDTH, RIGHT
key
KNIFE GROOVE
WIDTH, LEFT key
COPY key
PRESSER
SELECTION key
FORWARD key
BACKWARD key
CUSTOMIZE key
CUSTOMIZE key
Speed variable
resister
LCDadjustment
variable rsistor
FUNCTION
This key selects overedging width
display.
This key selects left side of bar-tacking
width compensation display.
This key selects right side of bar-tacking
width compensation display.
This key selects cloth cut length display.
This key selects clearance display.
This key selects knife groove width,
right compensation display.
This key selects knife groove width, left
compensation display.
Press this key when copying pattern.
This key selects presser type.
This key makes the feed mechanism
travel forward stitch by stitch.
This key makes the feed mechanism
travel backward stitch by stitch.
This is a short cut key that customizing is
possible. Registration of short cut to setting
display of an optional pattern is possible,
This is a short cut key that customizing is
possible. Registration of short cut to setting
display of an optional pattern, sewing
parameter or adjustment data is possible.
Speed increases when this is lifted
upward and decreases when this is
lowered downward.
Light and shade of LCD display can be
adjusted.

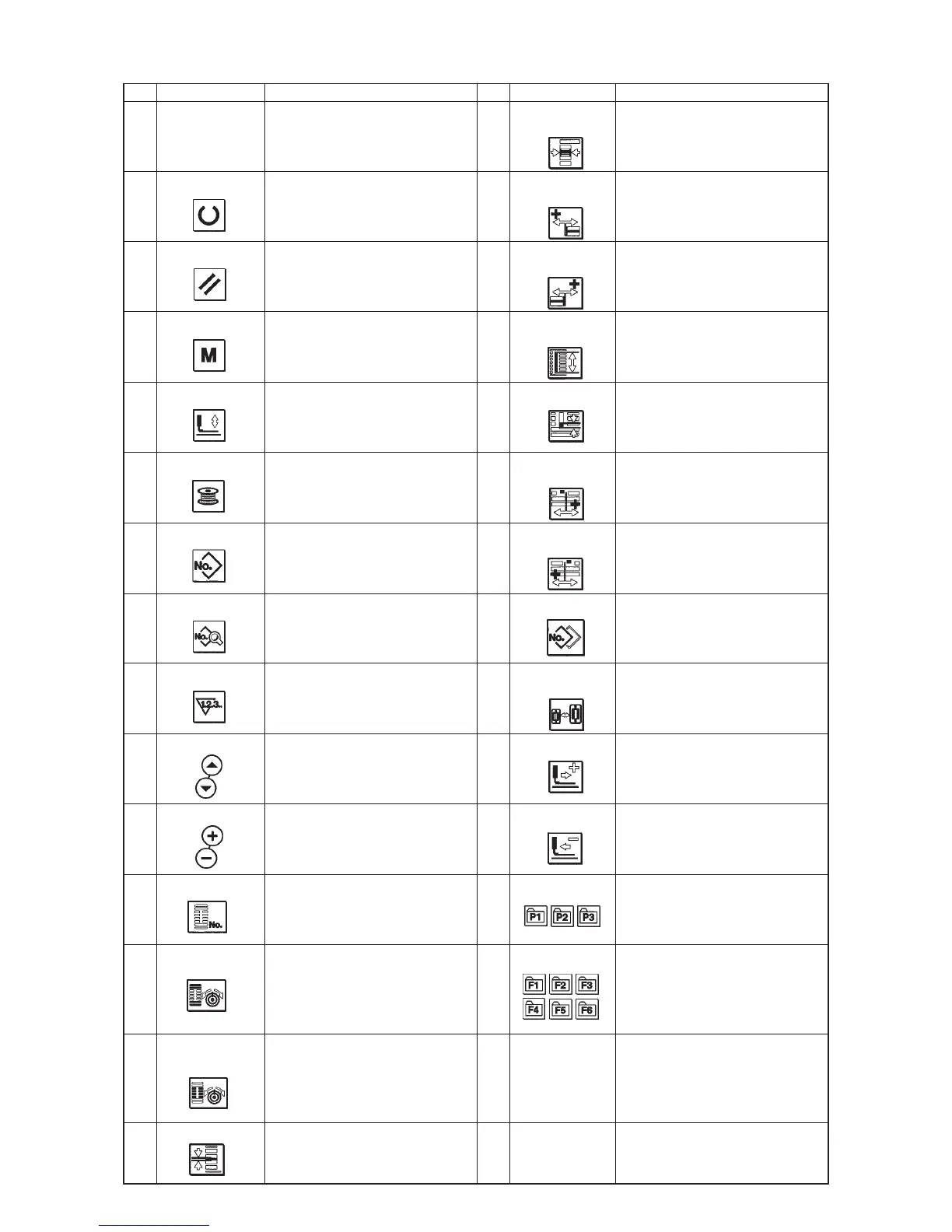

Operation panel function list
To Next Page
