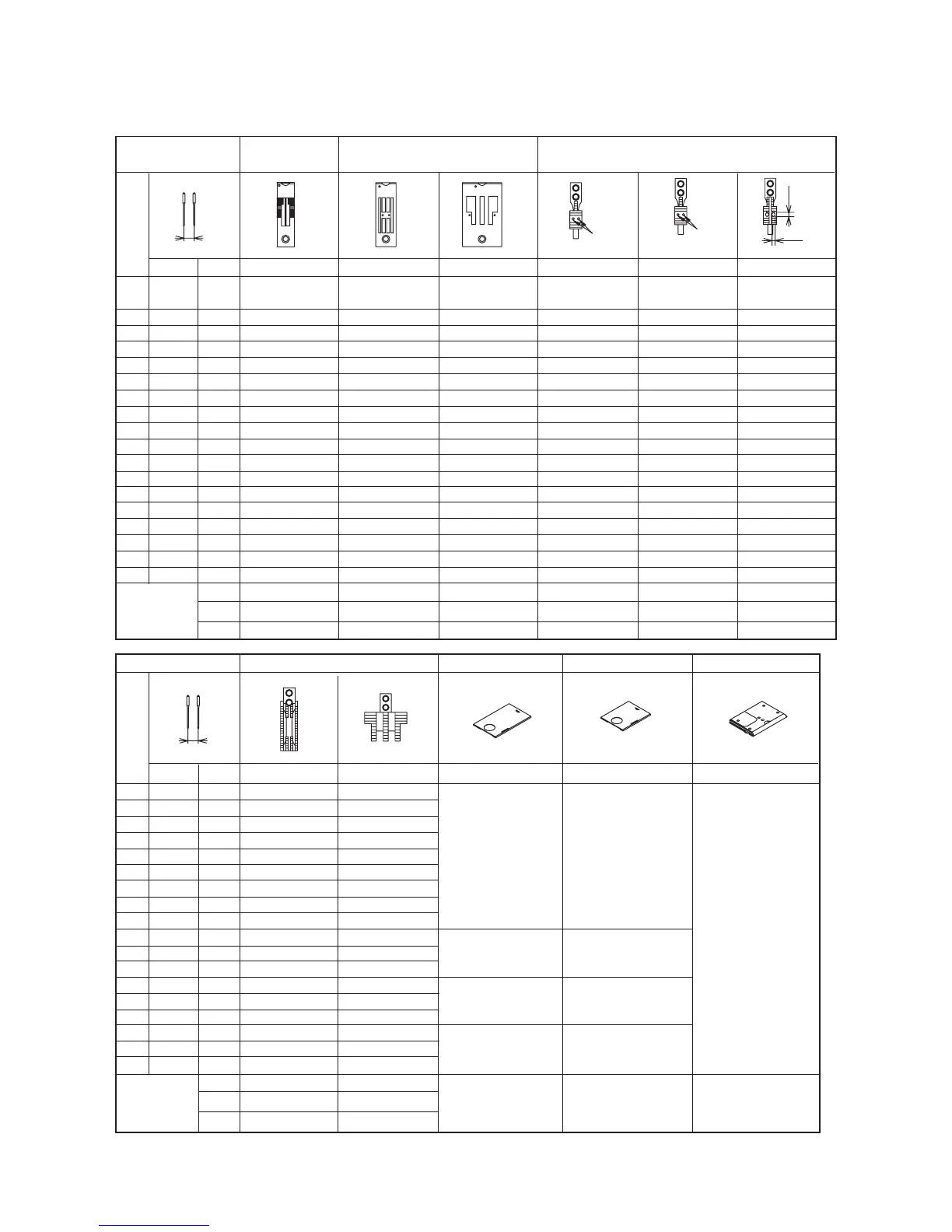

12. List of gauge components
(1) LH-4128 (1/2)
Needle gauge size Throat plate (Lower feed) Feed dog
inch mm Part No. Part No. Part No. Part No. Part No. Part No.
B 1/8 3.2 22625107 22845200 — — —
C 5/32 4.0 22625206 — — 22630206 40025784 —
D 3/16 4.8 22625305 22845408 — 22630404 40025785 40025801
E 7/32 5.6 22625404 — — 22630503 40025786 40025802
F 1/4 6.4 22625503 22845606 — 22630602 40025787 40025803
G 9/32 7.1 22625602 — — 22630800 40025788 40025804
H 5/16 7.9 22625701 22845804 — 22630909 40025789 40025805
K 3/8 9.5 22625800 — — 22631006 40025790 40025806
W 7/16 11.1 22625909 — — 22631105 40025791 40025807
L 1/2 12.7 22626006 — 40062254 22631303 40025792 40025808
M 5/8 15.9 22626105 — — 22631402 40025793 40025809
N 3/4 19.1 22626204 — 40062256 22631501 40025794 40025810
P 7/8 22.2 22626303 — 40062257 22631709 40025795 40025811
Q125.4 22626402 — 40062258 22631808 40025796 40025812
R 1-1/8 28.6 22626501 — — 22631907 40025797 40025813
S 1-1/4 31.8 22626600 — — 22632004 40025798 40025814
T 1-3/8 34.9 22626709 — — 22632103 40025799 40025815
U 1-1/2 38.1 22626808 — — 22632202 40025800 40025816
S vvv
Stitch spec.
Lower feed vv
G v v
ø1.9
3.2mm
2.2mm
Needle gauge size Feed dog (Lower feed) Sliding plate asm. (Left) Sliding plate asm. (Right) Sliding plate asm. (Front)
inch mm Part No. Part No. Part No. Part No. Part No.
B 1/8 3.2 23205107 —
C 5/32 4.0 — —
D 3/16 4.8 23205305 —
E 7/32 5.6 — —
F 1/4 6.4 23205503 — 22601058 22600555
G 9/32 7.1 — —
H 5/16 7.9 22847800 —
K 3/8 9.5 — —
W 7/16 11.1 — —
L 1/2 12.7 — 40062249
M 5/8 15.9 — — 22601157 22600654
N 3/4 19.1 — 40062251
P 7/8 22.2 — 40062252
Q125.4 — 40062253 22601256 22600753
R 1-1/8 28.6 — —
S 1-1/4 31.8 — —
T 1-3/8 34.9 — — 22601355 22600852
U 1-1/2 38.1 — —
S
Stitch spec.
Lower feed Spec. common Spec. common Spec. common
G vv
(Option)
40034931
ø1.7
Code
Throat plate
(Throat feed)
Code
40033563
(Needle hole ø1.4)
