– 72 –

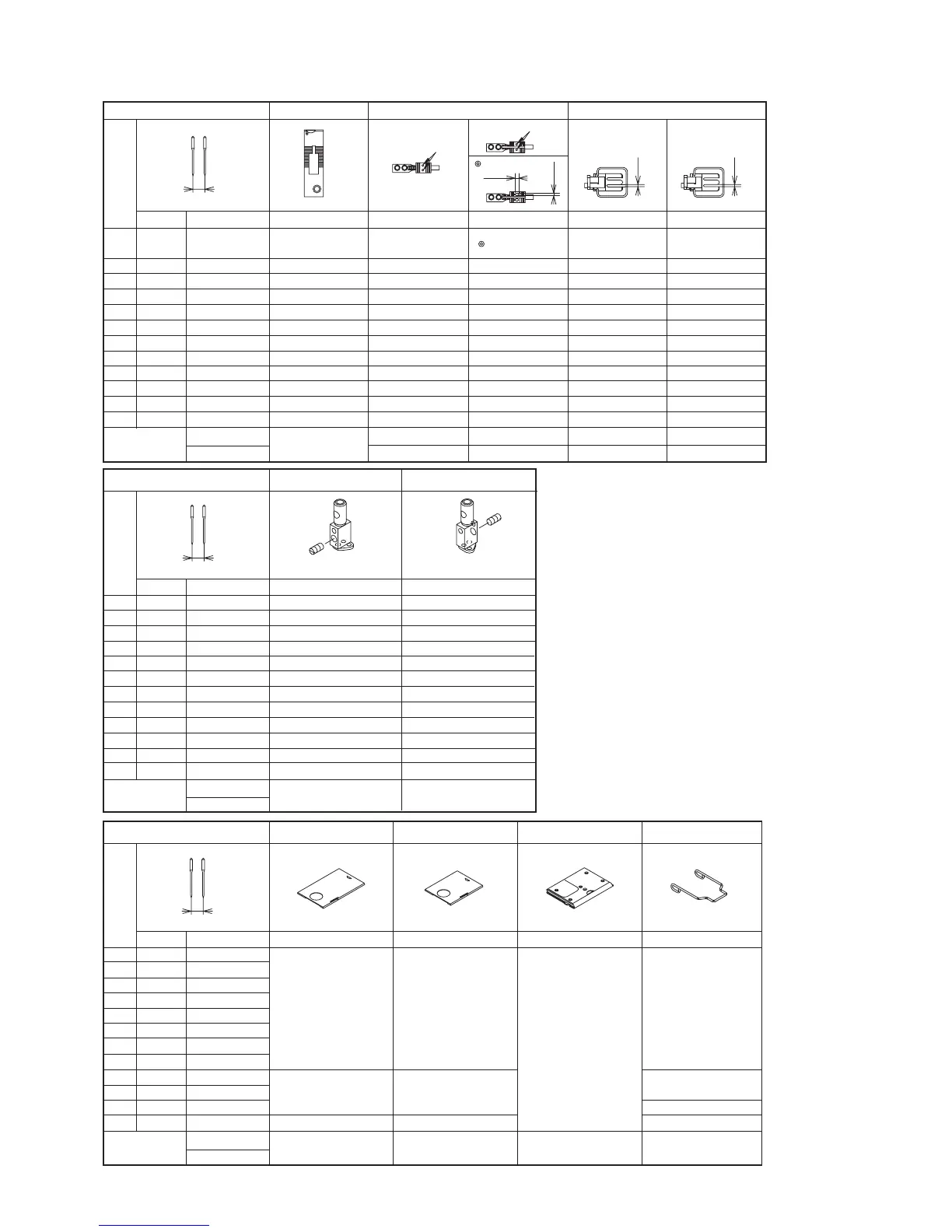

Needle gauge size
Needle clamp asm (Left) Needle clamp asm (Right)
inch mm Part No. Part No.
B 1/8 3.2 B1402526BA0A B1402526BA0A
C 5/32 4.0 B1402526CA0A B1402526CA0A
D 3/16 4.8 B1402526DALA B1402526DARA
E 7/32 5.6 10228559 10228567
F 1/4 6.4 B1402526FALA B1402526FARA
G 9/32 7.1 B1402526GALA B1402526GARA
H 5/16 7.9 B1402526HALA B1402526HARA
K 3/8 9.5 B1402526KALA B1402526KARA
L 1/2 12.7 B1402526LALA B1402526LARA
M 5/8 15.9 10228856 10228864
N 3/4 19.1 10228955 10228963
Q1 25.4 10229151 10229169
Light-weight
G
Stitch spec. Spec. common Spec. common
(5) LH-4188-7
Needle gauge size Throat plate Feed dog Presser foot asm.
inch mm Part No. Part No. Part No. Part No. Part No.
B 1/8 3.2 40035881 40061270 40053705 40035896
C 5/32 4.0 40025485 40061271 40071911 40035897 40071909
D 3/16 4.8 40025490 40061272 40035891 22640353 22816557
E 7/32 5.6 40025491 40061273 40050009 22640452 22816656
F 1/4 6.4 40025492 40061274 40035892 22640551 22816755
G 9/32 7.1 40025493 40061275 40050010 22640759 22816854
H 5/16 7.9 40025494 40061276 40050011 22640858 22816953
K 3/8 9.5 40025495 40061277 40035893 22640957 22817050
L 1/2 12.7 40025498 40061278 40035894 22641252 22817159
M 5/8 15.9 40025499 40061279 40071912 22641351 40033945
N 3/4 19.1 40025500 40061280 40035895 22641450 40033947
Q1 25.4 40025503 40061282 40071914 22641757 40033951
Light-weight Light-weight Light-weight
G vv
Stitch spec. Spec. common
Needle gauge size
Sliding plate asm. (Left) Sliding plate asm. (Right) Sliding plate asm. (Front)
Wiper
inch mm Part No. Part No. Part No. Part No.
B 1/8 3.2
C 5/32 4.0
D 3/16 4.8
E 7/32 5.6
F 1/4 6.4
G 9/32 7.1 40031358
H 5/16 7.9
K 3/8 9.5
L 1/2 12.7
M 5/8 15.9 40025248 40025236
N 3/4 19.1 10209807
Q1 25.4 40025249 40025239 10209906
Light-weight
G
Stitch spec. Spec. common Spec. common Spec. common Spec. common
40025247 40025235 10209203
10209500
ø2.4
2.2mm
3.2mm
ø1.9
2.0mm
2.4mm
(Hole Type)(Hole Type)
(Tip-divided)
(Tip-divided)
Code
Code
Code
40035896
(Clearance 2.0mm)
To Next Page
