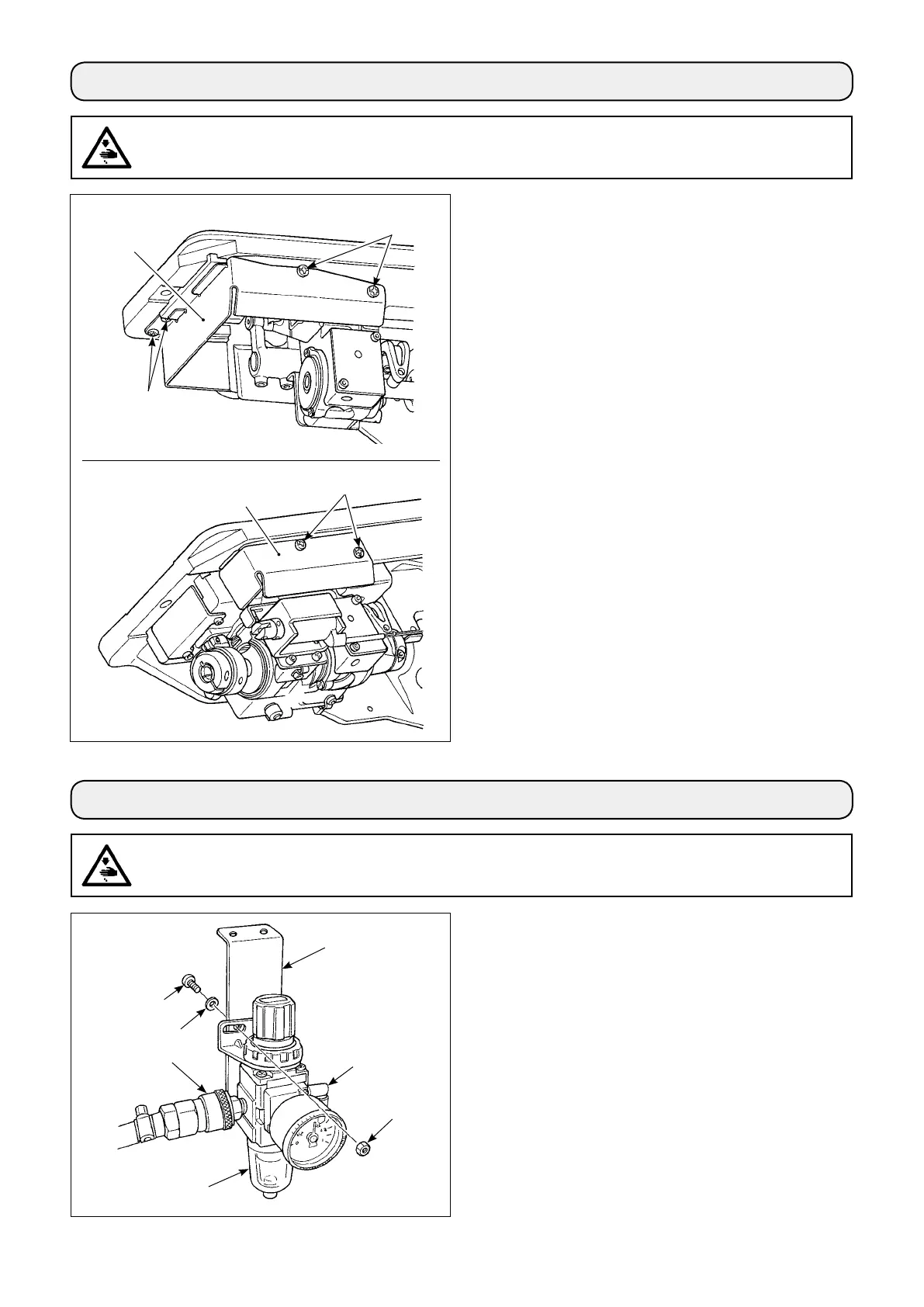

5. INSTALLING THE OIL SHIELD
Installoil shield
❶
,supplied with the unit,onthe
framewithscrews
❷
.
6. PNEUMATIC COMPONENTS (LU-2810-7, LU-2860-7)
(1) Installing the regulator
1) Installregulator(asm.)
❶
onmountingplate
❺
withscrew
❷
,springwasher
❸
andnut
❹
whicharesuppliedwiththeunit.
2) Installcouplings
❻
and
❼
onregulator
❶
.
3) Installmountingplate
❺
ontheundersideofthe
table.
4) Connectø6airtubecomingfromthesewing
machinetocoupling
❻
.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
LU-2810, LU-2810-7
LU-2860, LU-2860-7
❷
❶
❺
❻
❼
❹
❸
❷
❶
❷
❶
❷
