4 Operation

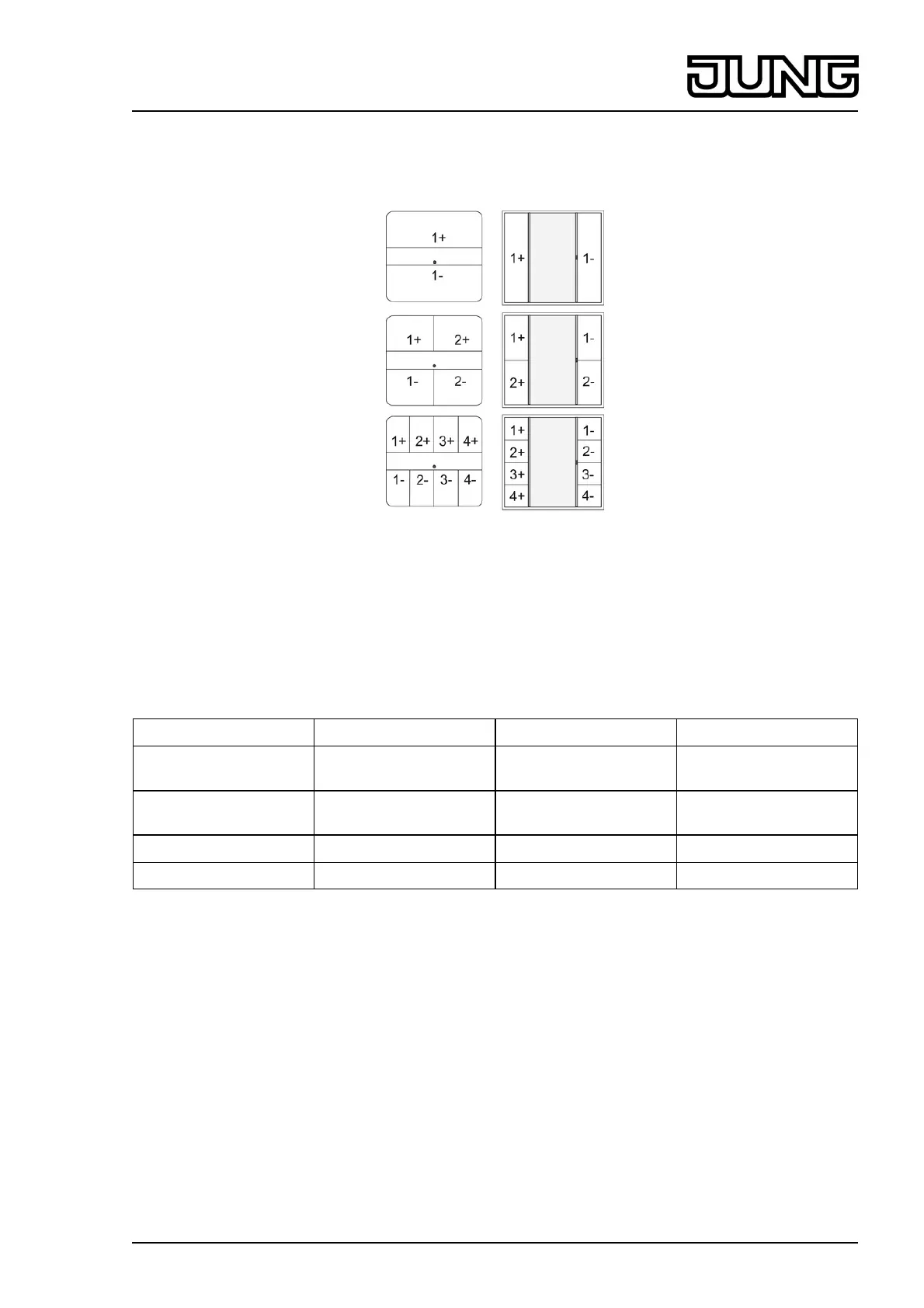

Channel assignment of the wall transmitter
Figure 3: Channel assignment
Sending radio telegrams
o Press channel button, e.g. 1+, to transmit a radio telegram.
The corresponding LED lights up as an acknowledgement.
As long as no light scene functions were selected, the following responses occur, depending on
the type of receiver:
Button Length Lighting Venetian blind
X+ less than 1 second Switch on Slat
adjustment
X- less than 1 second Switch off Slat
adjustment
X+ longer than 1 second brighter Blind moves up
X- longer than 1 second darker Blind moves down
i The maximum transmitting length is 12 seconds, even if another button is pressed after
that.
i If more than one button is pressed at the same time, the radio telegram of only one button
is transmitted.
Calling up light scenes
Light scene button has been taught (see Commissioning).
The function switch of the corresponding button is set to OFF.
o Press the light scene button for shorter than 3 seconds.
Receivers switch to the stored light scene value.
Save light scene
Light scene button has been taught (see Commissioning).
o Set the required lighting situation.
o Press the light scene button for longer than 3 seconds.
3/8
32532713
J:0082532713
09.12.2010
Radio Management
Flat wall-mounted radio transmitter
