5.3 Lateral Battery Removal (ERC 212z/214z/216z)
Battery removal
Requirements
– Park the truck securely, see page 76.
– Expose the battery, see page 46.
Tools and Material Required
– Battery replacement station / trolley
Procedure

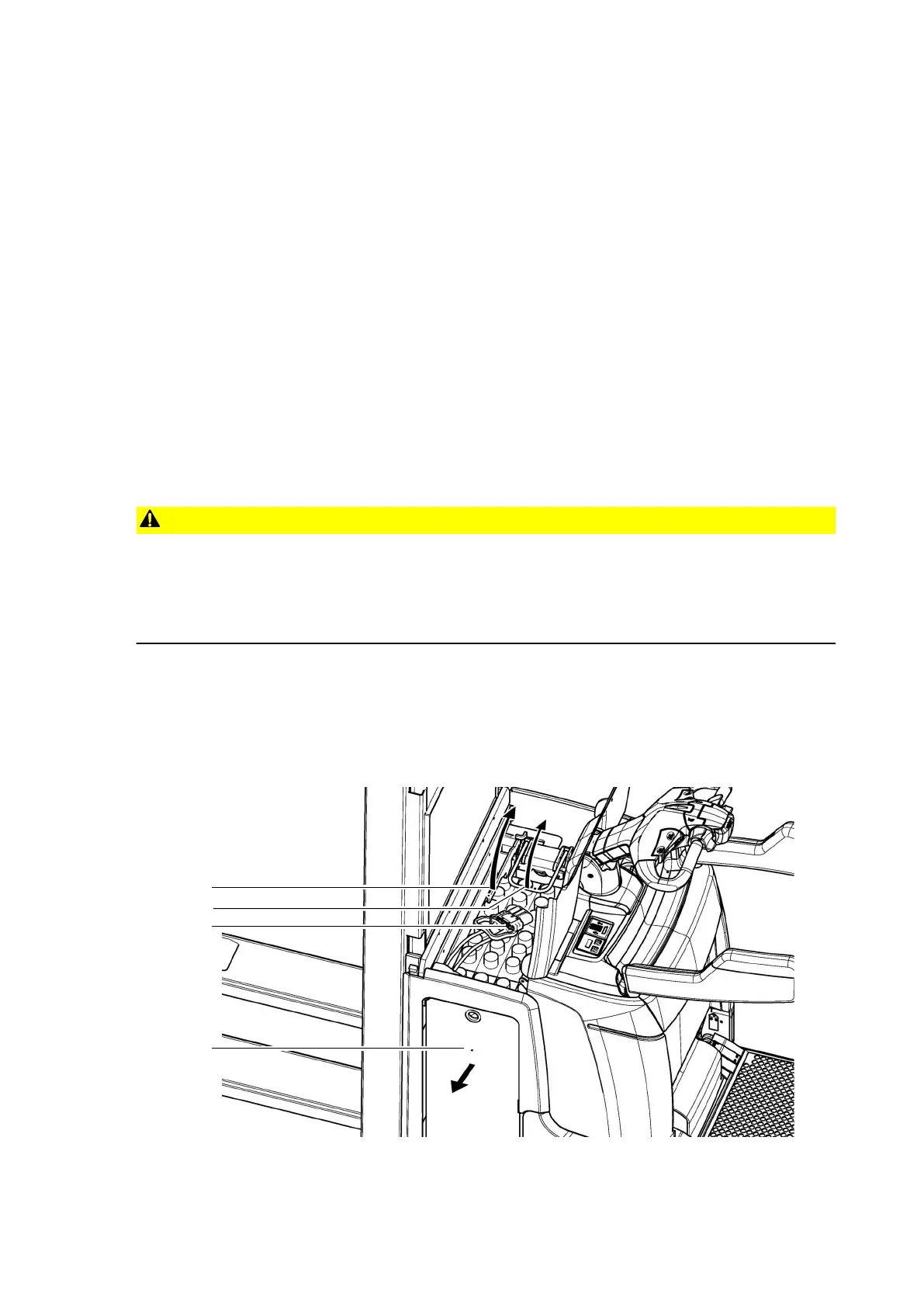

• Disconnect the battery connector from the truck connector.
• Pull the lock (53) on the battery up.
• Flip the lock further over until the battery retainer (38) can move freely.
• Raise the battery retainer and flip back the lock to secure the retainer in the top
position.
Z
Place the battery cable on the tray so that it cannot be severed when the battery
is pulled out.
• Position the battery trolley next to the truck.
CAUTION!
Trapping hazard
Trapping hazard when removing and installing the battery.
u
When removing and installing the battery do not put your hands between the
battery and the chassis.
Push/pull the battery sideways off the truck.
• Carefully push the battery from off the truck onto the battery replacement station/
trolley.
The battery has now been removed.
