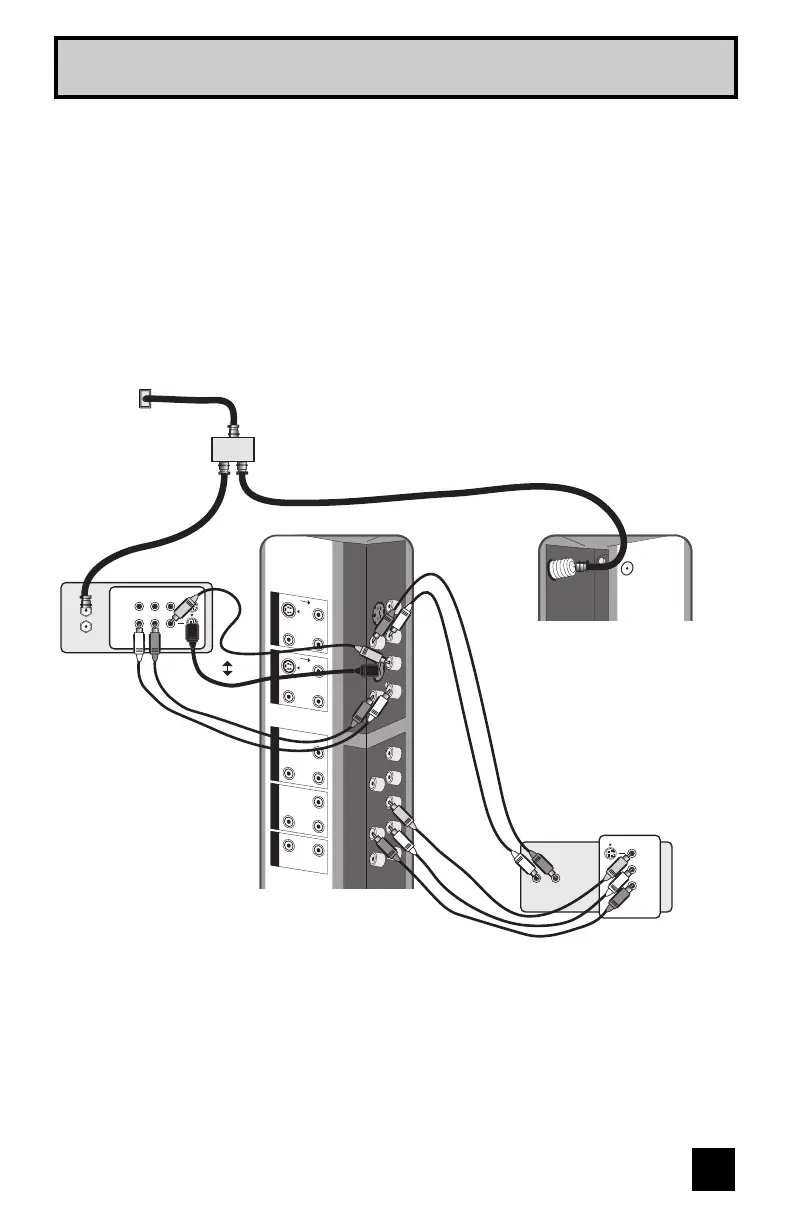

Quick Setup Connections
Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user’s manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.
INPUT 3 INPUT 2 INPUT 1
INPUT 1 COMPONENT
DIGITAL IN AUDIO
U
DIO OUT
S-VIDEO
VIDEO
R -
AUDIO - L
S-VIDEO
VIDEO
R - AUDIO - L
Y
Pr Pb
VIDEO
R - AUDIO -
L
R -
AUDIO -
L
R
L
DIGITAL-IN
75Ω
(UHF/VHF)
IN
OUT
IN
OUT OUT
OUT
Y
P
B
P R
R L
AUDIO OUT
R L V
IN
OUT
TV Rear Panel
Cable or Antenna
Output
Coaxial Cable
Two-Way
Splitter
OR
Green
Blue
Red
DVD Player (OPTIONAL)
VCR
TV Rear Panel
Diagram #3
LCT1827-001B-A ENG 15 7/25/05, 9:13:18 AM
