(No.MB177)1-17
SECTION 4
ADJUSTMENT
4.1 Adjustment of idling current
Attention:
This adjustment does not obtain a correct adjustment value immediately after the amplifier is used (state that an internal temperature
has risen).
Please adjust immediately after using the amplifier after turning off the power supply of the amplifier and falling an internal temper-
ature.
Adjustment method
(1) Prior to turning the power ON, fully turn the adjusting resistor (VR701
, VR702, VR751, VR752, VR771, VR772, VR801) coun-
terclockwise direction and connect the DC voltmeter to the measuring terminal (B901-B902, B903-B904, B905-B906, B907-
B908, B909-B910, B911-B912, B913-B914).
(2) Adjust the resistor so that the measured value becomes 2.0mV just after the power supply is turned on.
(3) Adjust the resistor so that the measured value becomes 2.5mV more than 60 seconds after the power supply is turned on.
(4) After stability is 1.0-4.0mV.
Refer to following page "Idling Current graph".
NOTE:
It is not abnormal though the idling current might not become 0mA even if it is finished to turn variable resistance (VR701
, VR702,
VR751, VR752, VR771, VR772, VR801) in the direction of counterclockwise.
Measuring point Alignment point Measuring condition
Lch B903
& B904 VR701 No load and No signal.Rated line voltage
SURROUND : OFF
Room temperature : 20 to 25 ºC
Rch B911
& B912 VR751
Cch B907 & B908 VR801
SLch B907 & B908 VR771
SRch B909 & B910 VR772
SBLch B901 & B902 VR702
SBRch B913 & B914 VR752

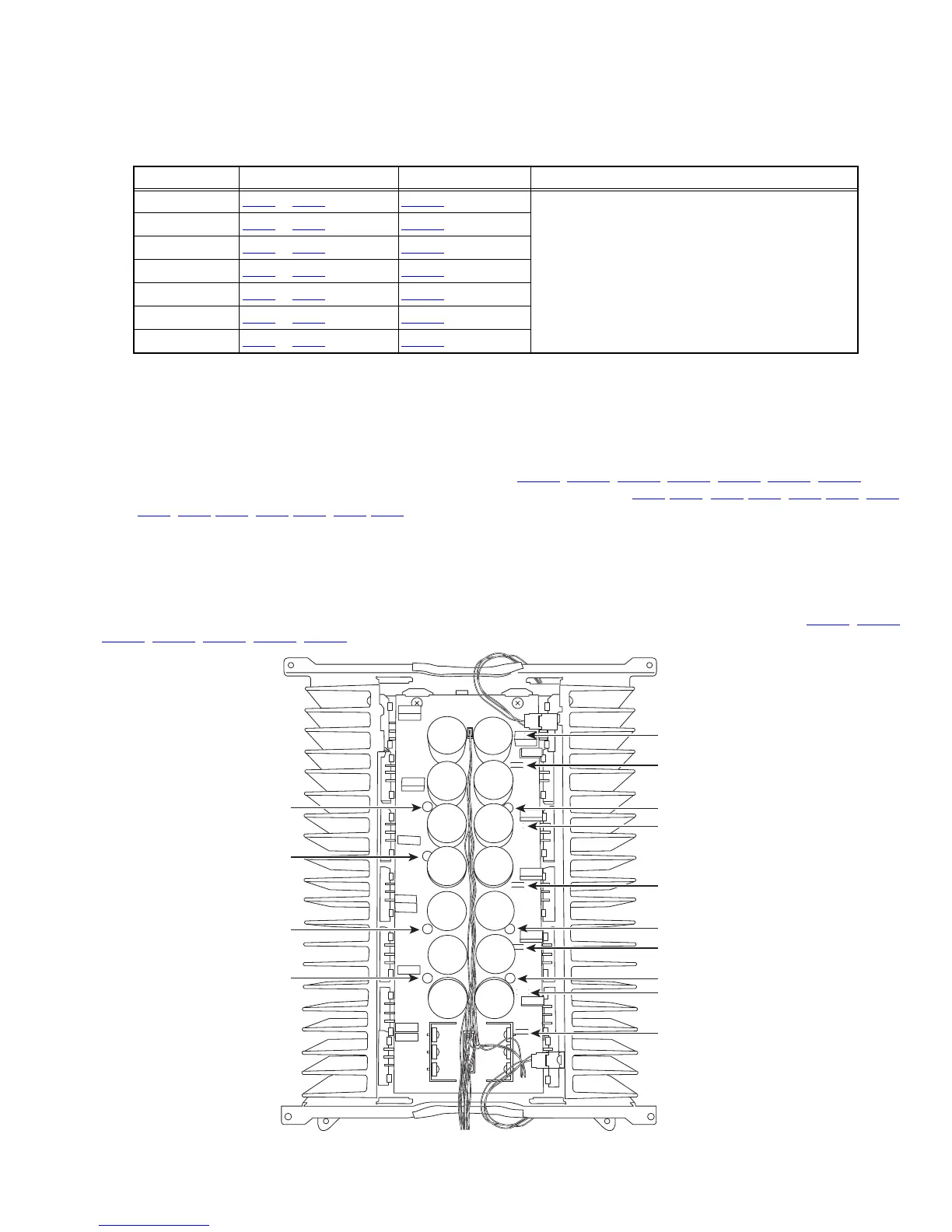

B901, B902 (SBLch)
B903, B904 (Lch)
B905, B906 (SLch)
B907, B908 (Cch)
B909, B910 (SRch)
B911, B912 (Rch)
B913, B914 (SBRch)
VR701 (Lch)
VR801 (Cch)
VR771 (SLch)
VR702 (SBLch)
VR772 (SRch)
VR752 (SBRch)
VR751 (Rch)
To Next Page
