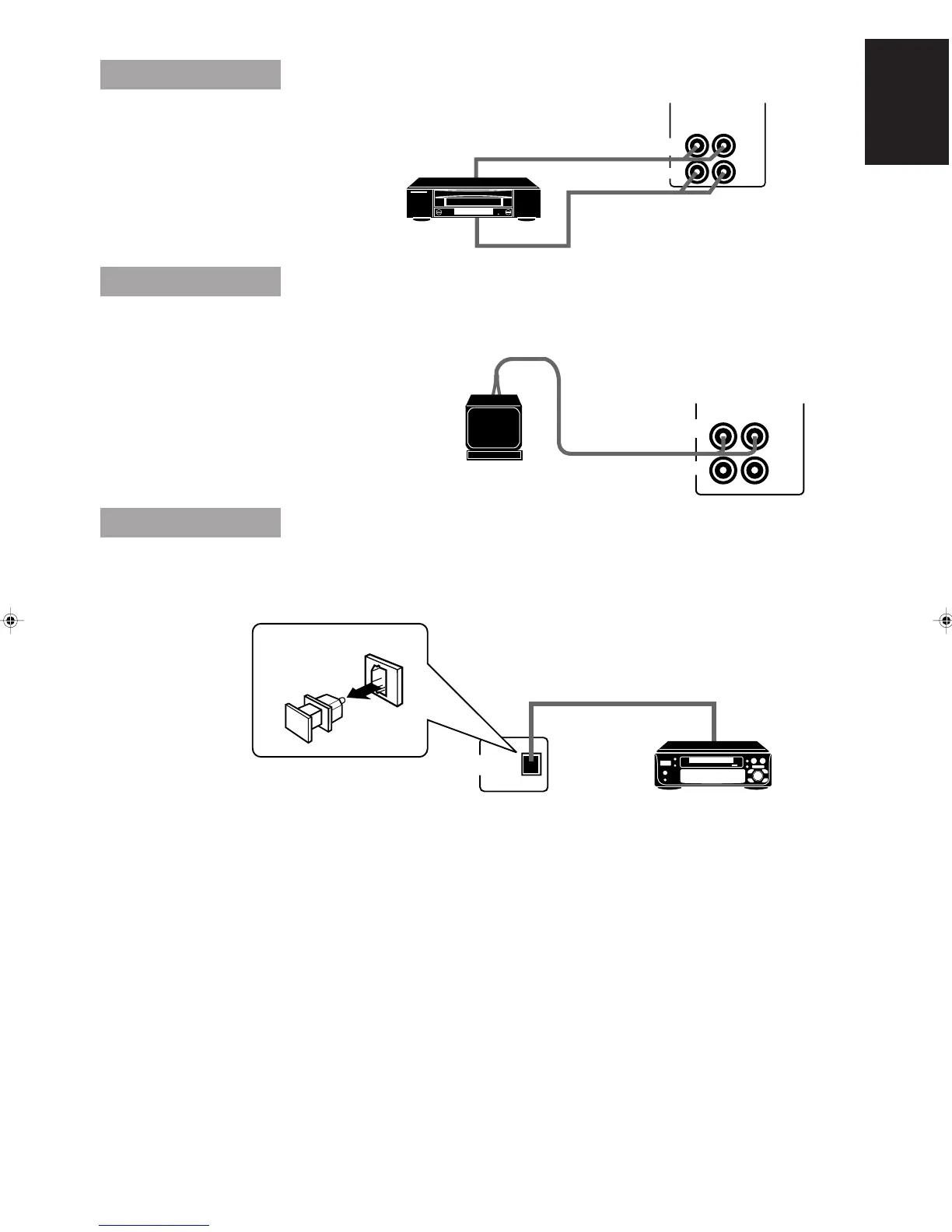

Connecting the MD Player
You can use a digital fiber-optic cable to connect the MD Player for recording CDs.
Remove the cap from the DIGITAL OUT OPTICAL terminal and connect the digital fiber-optic cable.
(Not supplied.)
Now you can plug the AC power cord into the wall outlet, and your System is
at your command!
DIGITAL OUT
OPTICAL
Connecting a VCR
Connect the VCR to the VCR terminal.
Connecting a TV
Connect a TV to the TV SOUND
input terminals.
RIGHT
TV SOUND
VCR
VCR
LEFT
IN
(PLAY)
OUT
(REC)
AUDIO OUT
AUDIO IN
RIGHT
VCR
LEFT
IN
(PLAY)
OUT
(REC)
TV SOUND
VCR
T V
AUDIO OUT
