JVC Everio GZ-MS230 User Manual

Dubbing Files by Connecting to a DVD
Recorder or VCR
You can dub videos in standard quality by connecting to a DVD recorder or VCR.
Refer also to the instruction manual of the TV, DVD recorder, VCR, etc.

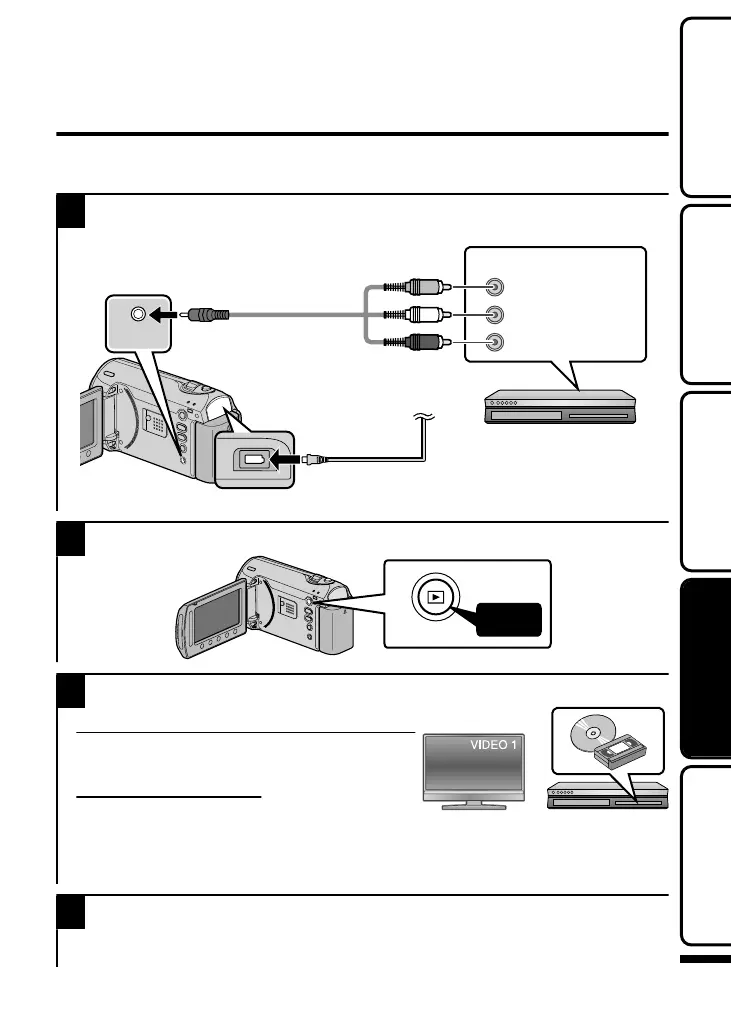

1
Connect to a VCR/DVD recorder.
●
Press the Power button for more than 2 seconds to turn off this unit.
.
A
V
AV
ToDCTerminal
ACAdapterToACOutlet
(110Vto240V)
VCR/DVDRecorder
Yellow
White
Red
ToAVTerminal
VideoInput
VideoInput
AudioInput(L)
AudioInput(R)
AVCable
(Provided)
●
This unit powers on automatically when the AC adapter is connected.
2
Select the playback mode.
.
AV
Press
3
Prepare to record.
Preparation on TV and VCR/DVD recorder
●
Switch to a compatible external input.
●
Insert compatible blank DVD or VHS to dub.
Preparation on this unit
●
Set “VIDEO OUTPUT” in the connection
settings menu to the aspect ratio (“4:3” or “16:9”) of the connecting TV.
●
To include the date during dubbing, set “DISPLAY ON TV” in the connection
settings menu to “ON”. Alternatively, set “ON-SCREEN DISPLAY” in the playback
menu to “DISPLAY DATE ONLY”.
4
Start recording.
●
Start playback on this unit ( P.14) and press the record button on the recorder.
●
After playback is complete, stop the recording.
For more information, refer to the Detailed User Guide
http://manual.jvc.co.jp/index.html/
17
Getting StartedRecordingPlaybackCopying
Further
Information

JVC Everio GZ-MS230 Specifications

General

Digital zoom	800 x
Optical zoom	39 x
Image stabilizer	Yes
Focal length range	2.2 - 85.8 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	38 - 1482 mm
Sensor type	CCD
Total megapixels	- MP
Optical sensor size	1/6 \
Optical sensor resolution	800000 pixels
Interface	USB 2.0
Aperture range (F-F)	1.8 - 4.3
Power consumption (typical)	1.5 W
Display diagonal	2.7 \
Image formats supported	JPG
Maximum image resolution	- pixels
Audio system	Dolby Digital
USB 2.0 ports quantity	1
Flash memory	8 GB
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC
Internal storage capacity	- GB
Product color	Red
Battery type	BN-VG107
Battery capacity	- mAh
Battery life (max)	- h
Camcorder type	Handheld camcorder

Weight and Dimensions

Depth	110 mm
Width	52 mm
Height	62 mm
Weight	230 g
