JVC GR-DVL320A Service Manual

1
Notes : Mark
is same as left.
Mark — is not used.
Mark : * reference model was also changed.
TABLE OF CONTENTS
DIFFERENT TABLE .................................................................................................................................................................................... 1 to 2
4. CHARTS AND DIAGRAMS (4-1 to 4-4)
4.1 DSC SCHEMATIC DIAGRAM [GR-DVL520A/EA,DVL522SH] ................................................................................................................. 4-1
4.2 DSC CIRCUIT BOARD [GR-DVL520A/EA,DVL522SH] ........................................................................................................................... 4-3
5. PARTS LIST (5-1 to 5-7)
5.1 PACKING AND ACCESSORY ASSEMBLY <M1> .................................................................................................................................... 5-1
5.2 FINAL ASSEMBLY <M2> ......................................................................................................................................................................... 5-3
5.3 MONITOR ASSEMBLY <M5> ................................................................................................................................................................... 5-6
5.4 ELECTRICAL PARTS LIST [GR-DVL520A/EA,DVL522SH] ..................................................................................................................... 5-7
DSC BOARD ASSEMBLY <10> ............................................................................................................................................................... 5-7

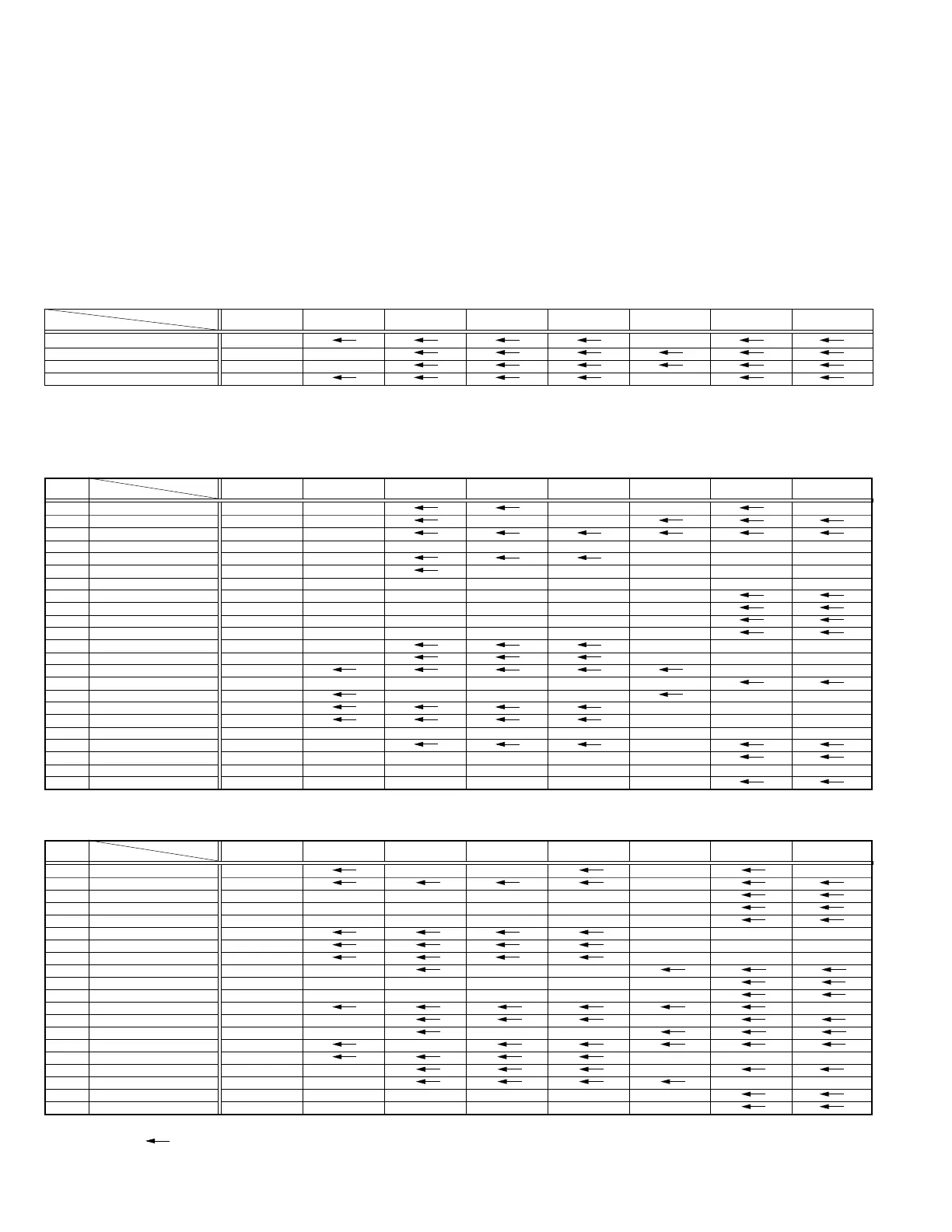

The following table indicate main different points between models GR-DVL160EG-X, GR-DVL320A, GR-DVL320A-S,
GR-DVL320EA, GR-DVL322SH, GR-DVL520A, GR-DVL520EA and GR-DVL522SH.
The following table indicate different parts number between models GR-DVL160EG-X, GR-DVL320A, GR-DVL320A-S,
GR-DVL320EA, GR-DVL322SH, GR-DVL520A, GR-DVL520EA and GR-DVL522SH.
PACKING AND ACCESSORY ASSEMBLY <M1> Note: As for IB (INSTRUCTIONS), refer to sec.5.
MODEL
GR-DVL160EG-X GR-DVL320A GR-DVL320A-S GR-DVL320EA GR-DVL322SH GR-DVL520A GR-DVL520EA GR-DVL522SH
ITEM
MEMORY CARD Not Used 8MB(MMC)
DV TERMINAL OUTPUT ONLY IN/OUT
TOTAL ZOOM RATIO 500X 700X
DSC Not Used Used
1 PACKING CASE LY32567-020A LY32567-001B LY32567-011A LY32567-006B LY32567-014A
2 CUSHION LY32568-001A LY32923-001A LY32568-001A LY32923-001A
7 SHEET(AGREMENT) — LYT0934-001A
9 WARRANTY CARD BT-54013-2 — — BT-56001-2 — — BT-56001-2 —
12 SHEET(ATT.) — LYT0974-001A ———
13 SHEET(CON.PLUG) — LYT0609-001A — — LYT0609-001A — —
14 SER.NET CARD — — — BT-56002-2 — — BT-56002-2 —
18 CABLE ASSY —————PEAC0428-150
19 COR FILTER —————QQR0491-002
20 USB CABLE —————QAM0324-001
21 CORE FILTER —————QQR0491-002
22 PC CONNECTION CABLE — QAM0084-001A ———
23 CORE FILTER — QQR0918-002 ———
! 24 AC ADAPTER LY20847-001C LY20847-001B LY20847-001C
25 CORE FILTER QQR0490-002 — — — — QQR0917-002
! 26 POWER CORD QMPL120-190-JR QMPS110-190-JR QMPH020-190-JR QMPL120-190-JR QMPH020-190-JR QMPL120-190-JR
27 RM(EDITING)CABLE QAM0214-001 ———
28 CORE FILTER QQR0491-002 ———
! 29 CONVERSION PLUG — PEMC1012-02 PEMC1012 — QAM0001-001 PEMC1012-02 — QAM0001-001
34 CD ROM ASSY — LY32210-022A LY32210-023A
37 MEMORY CARD —————QAM0404-002
39 ADAPTOR PLUG QAM0302-001 — — — — — — —
42 CORE FILTER —————QQR0919-002
!
REF.
MODEL
GR-DVL160EG-X GR-DVL320A GR-DVL320A-S GR-DVL320EA GR-DVL322SH GR-DVL520A GR-DVL520EA GR-DVL522SH
NO.
ITEM
FINAL ASSEMBLY <M2>
101 UPPER CASE(2.5)ASSY LY20774-001B *LY20774-001C LY20774-001B LY20774-003C LY20774-003D
101B PLATE(UPPER) LY32371-002A LY32371-001A
101E COVER(SD) —————LY32375-001A
101F SHAFT —————LY43292-001A
101G SPRING —————LY43293-001A
101J EARTH SHEET(2.5) LY43540-001A ———
101N COVER(SD)DUMMY LY32376-001A ———
101P SPECIAL SCREW LY30018-023A ———
104 SPECIAL SCREW LY30018-066A(,X4) * LY30018-066A(,X2) * LY30018-066A(,X4) * LY30018-066A(,X2) * * *
108 KNOB(SLIDE) —————LY43263-002A
113 FFC WIRE —————QUQ105-1011AA
119 WINDOW(MONI2.5) LY32378-009A *—
120 STICKER(SIDE) LY43566-004A LY43566-002A LY43566-003A
122 SPECIAL SCREW,X2 — * LY30018-099A * — * LY30018-099A * * *
125 FRONT COVER ASSY LY32382-003A LY32382-001A
126 STICKER(TOP) LY43567-001A LY43567-005A LY43567-003A LY43567-005A
140 LOWER CASE ASSY LY20769-002B * LY20769-002E * * * LY20769-003E
144 PLATE(ADJUST) LY43256-001A *LY43256-001B * * * * LY43256-001A *LY43256-001B
164 SPECIAL SCREW —————LY30019-038A
167SPACER(A) —————LY30029-0Y8A
!
REF.
MODEL
GR-DVL160EG-X GR-DVL320A GR-DVL320A-S GR-DVL320EA GR-DVL322SH GR-DVL520A GR-DVL520EA GR-DVL522SH
NO.
ITEM
