2-17
b
a
c
<PLAY mode>

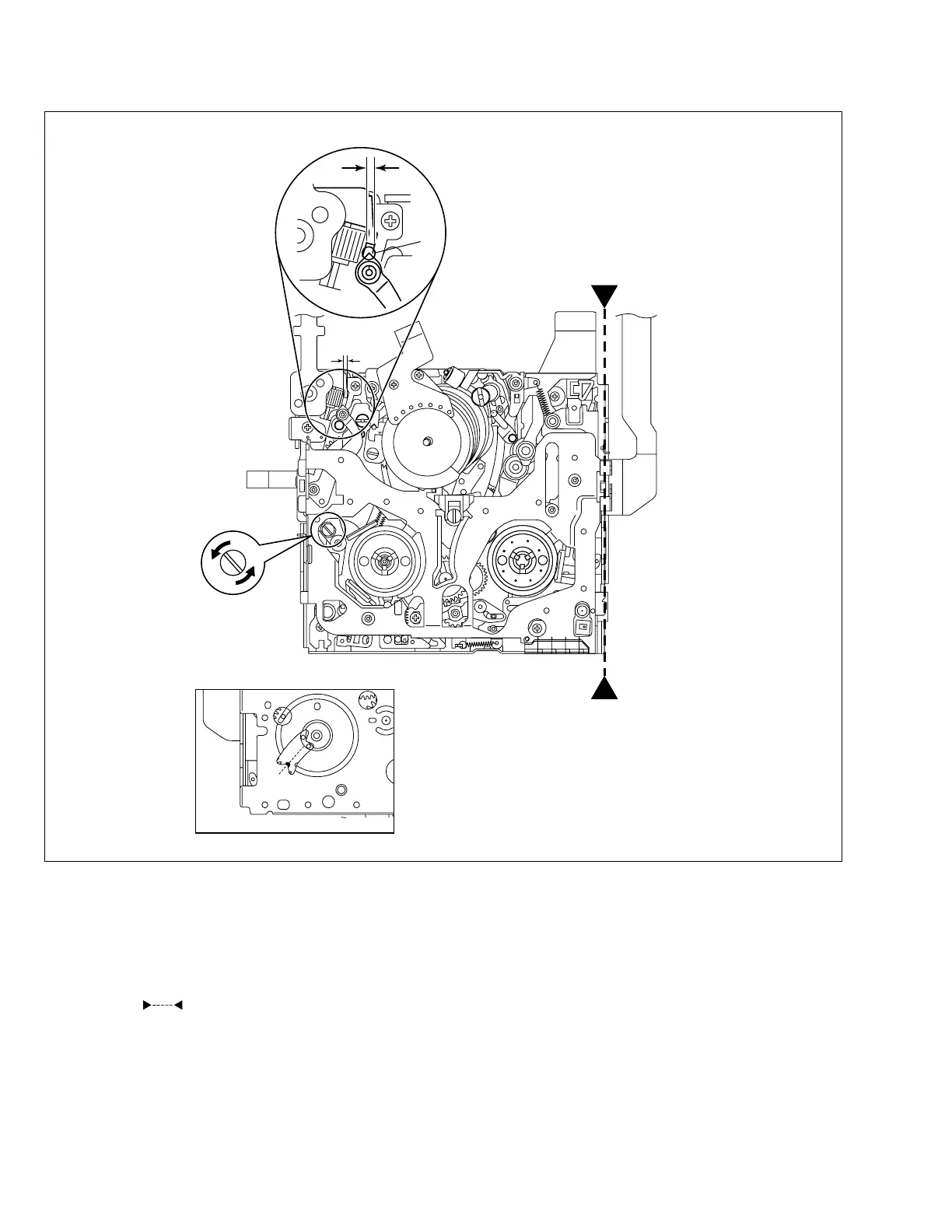

2.6.2 Locating tension pole
Fig. 2-6-2
Locating procedure
1. Enter the mechanism assembly into the PLAY mode.
(Refer to “2.3.2 Explanation of mechanism mode”.)
2. When the “ ” part is positioned down, make sure
that the part “a” of the tension arm assembly is located
within the range of “b”.
3. If the part “a” is out of the range, turn the pin “c” to
adjust the position.
To Next Page
