JVC GR-DVL320A Service Manual

# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY32567-001B PACKING CASE,D,E
LY32567-002A PACKING CASE,A
LY32567-020A PACKING CASE,B,C
2 LY32568-001A CUSHION
3 LY30023-008A POLY BAG
4 QPA02003506 POLY BAG,A,B,D
YQM30061-3 POLY BAG,C,E
! 5 LYT0909-002A INST.BOOK(GE),B,D
! LYT0909-003A INST.BOOK(FR),B,D
! LYT0909-004A INST.BOOK(DU),B,D
! LYT0909-005A INST.BOOK(SP),B,D
! LYT0909-006A INST.BOOK(IT),B,D
! LYT0910-001A INST.BOOK(EN),C
! LYT1000-001A INST.BOOK(EN),E
! LYT1002-002A INST.BOOK(GE),A
! LYT1002-003A INST.BOOK(FR),A
! LYT1002-004A INST.BOOK(DU),A
! LYT1002-005A INST.BOOK(SP),A
! LYT1002-006A INST.BOOK(IT),A
! 6 LYT0873-001B INST.BOOK(SOFT.EN),E
! LYT0873-002A INST.BOOK(SOFT.GE),D
! LYT0873-003B INST.BOOK(SOFT.FR),D
! LYT0873-004A INST.BOOK(SOFT.DU),D
! LYT0873-005B INST.BOOK(SOFT.SP),D
! LYT0873-006A INST.BOOK(SOFT.IT),D
7 LYT0934-001A SHEET(AGREMENT),D
8 LYT0194-001B Q.CARD(JUK),C,E
9 BT-54013-2 WARRANTY CARD,A,B,D
10 BT-54008-2 GUARANTY CARD,C,E
11 LYT0867-001A PAMPHLET(EK),C,E
12 LYT0974-001A SHEET(ATT.),D,E
15 QPA01703005 POLY BAG
16 QAM0212-001 CABLE ASSY,AUDIO/VIDEO CABLE
17 QQR0918-002 CORE FILTER
22 QAM0084-001 PC CONNECTION CABLE,D,E
23 QQR0491-002 CORE FILTER,D,E
! 24 LY20847-001C AC ADAPTER,AP-V12EG
25 QQR0490-002 CORE FILTER
! 26 QMPL120-190-JR POWER CORD,A,B,D
! QMPP110-190-JR POWER CORD,C,E
27 QAM0214-001 RM(EDITING)CABLE,B,C,D,E
28 QQR0491-002 CORE FILTER,B,C,D,E
! 30 LY32566-001A BATTERY PACK,BN-V408U-B
31 LY20186-001A SHOULDER STRAP
32 LY20750-001A REMOTE CONTROL UNIT,RM-V717U,B,C,D,E
33 – BATTERY,AAA(R03),X2,B,C,D,E
34 LY32210-022A CD ROM ASSY,D,E
36 LY43294-002A CAP(HOOD)ASSY
39 QAM0302-001 ADAPTOR PLUG
41 LY43496-001A STICKER(EK),C,E

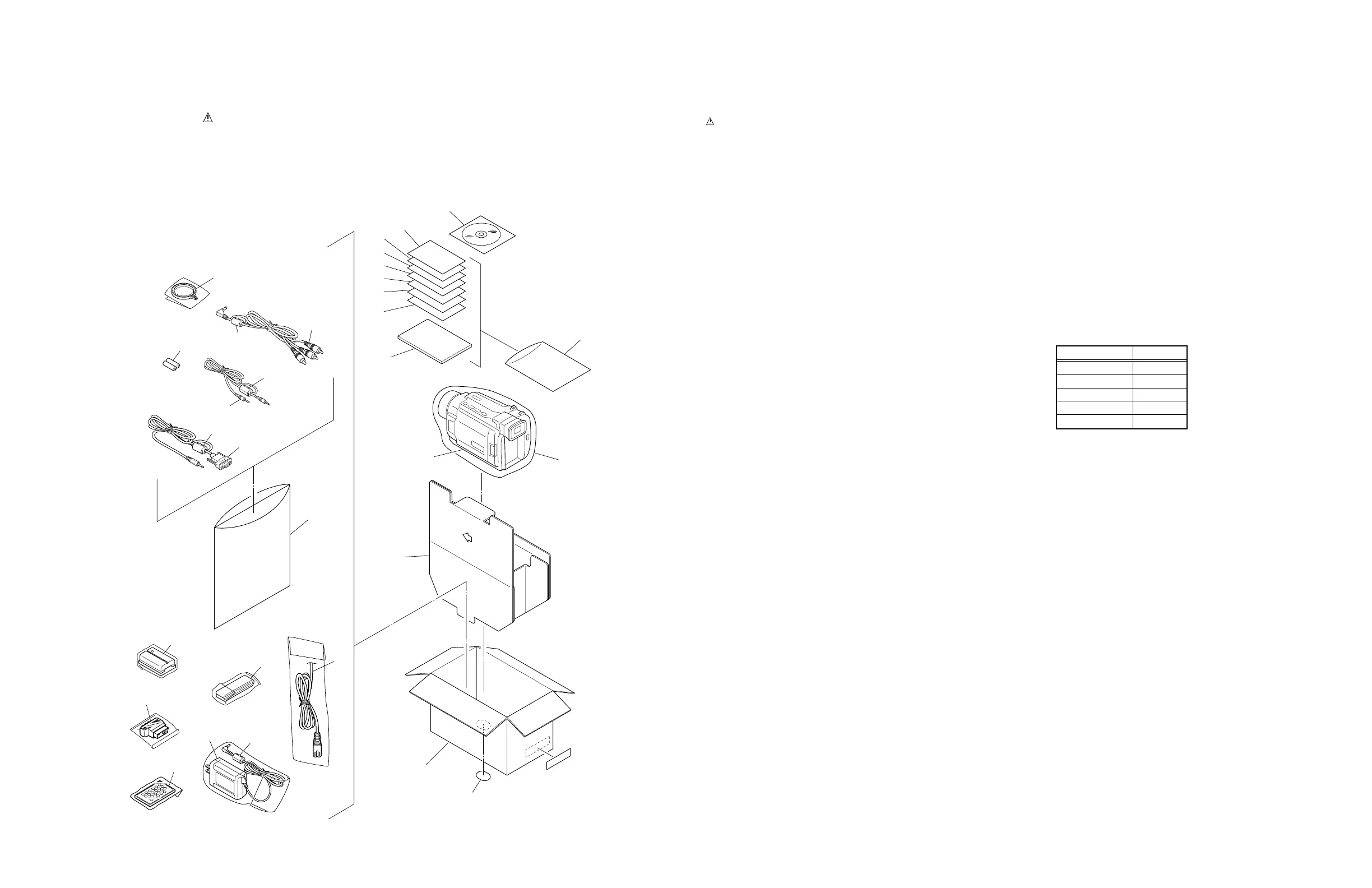

5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
5-1 5-2
1
41
LABEL
(SERIAL)
7
8
9
10
12
11
6
4
15
3
5
FINAL ASSY
<M2>
2
31
34
33
30
22
23
28
27
25
16
17
24
36
32
39
26
MODEL MARK
GR-DVL155EG-X A
GR-DVL160EG-X B
GR-DVL160EK C
GR-DVL167EG-X D
GR-DVL167EK E
• INSTRUCTIONS
GE ...... GERMAN
FR ....... FRENCH
DU ...... DUTCH
SP ....... SPANISH
IT ........ ITALIAN
EN ....... ENGLISH
