46 EN
PLAYBACK

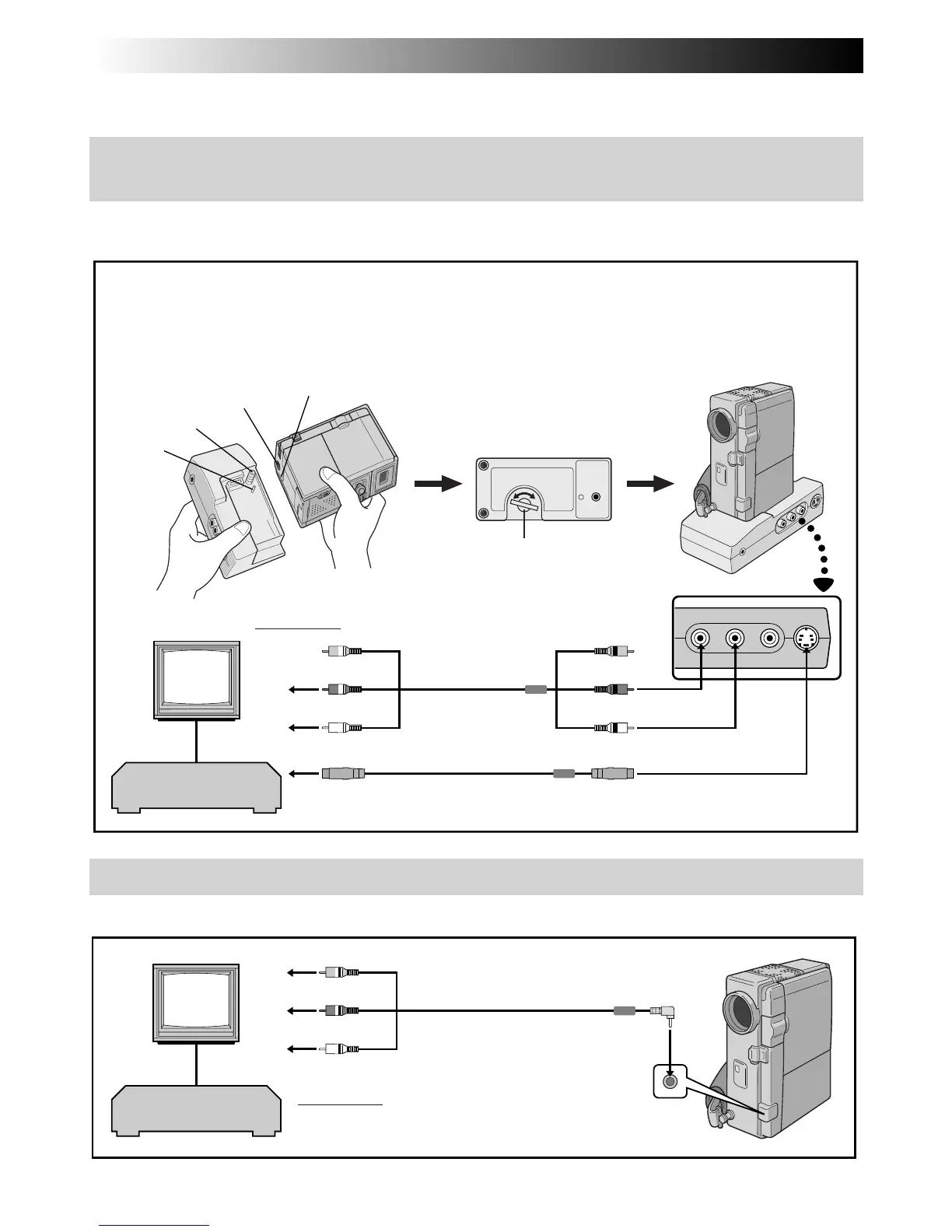

Basic Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
A. Connection to a TV or VCR equipped with an S-VIDEO
IN and A/V input connectors
To S-VIDEO IN
Connector
cover*
To S-VIDEO OUT
To TV or VCR
S-Video cable
(optional)
TV
VCR
A. Connection to a TV or VCR equipped with an S-VIDEO
Audio/Video cable
[mini-plug to RCA plug]
(provided)
To AV OUT
Red to AUDIO R IN
TV
VCR
To TV or VCR
White to AUDIO L IN
* When connecting the cables, open this cover.
Yellow to VIDEO IN
Docking Station Attachment
First align the camcorder direction stud and screw on the Docking Station with the camcorder’s stud
hole and tripod mounting socket and tighten the screw.
When removing the camcorder, loosen the screw and detach the camcorder.
A.Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input
connectors
When connecting to a TV or VCR, use the provided Docking Station, an optional Audio/Video cable and
S-Video cable.
B. Connection to a TV or VCR equipped only with A/V input connectors
Use the provided Audio/Video cable.
Audio/Video cable
[RCA plug to RCA
plug] (optional)
Red to AUDIO R OUT
White to AUDIO L OUT
Yellow:
Not connected
Red to AUDIO R IN
White to AUDIO L IN
Yellow: Not connected
Screw Knob
Screw
Stud
Bottom of
Docking Station
Tripod mounting socket
Stud hole
