R
[OIS/2]
Optical Image Stabilizer/User 2 Button
For switching the image stabilizer feature mode
ON or OFF.
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P38 [Assignment of Functions to User
Buttons] )
S
[FOCUS ASSIST/1] Focus Assist/User 1 Button
For switching the focus assist function ON or
OFF.
(A P51 [Focus Assist Function] )
You can also use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P38 [Assignment of Functions to User
Buttons] )
T
[MENU/THUMB] Menu/Thumbnail Button
0
Displays the menu screen during Camera
mode.
0
Switches between [Main Menu]
and
[Favorites Menu] when the [MENU/
THUMB] button is pressed and held down
while the menu screen is displayed.
(A P
94 [Basic Operations in Menu Screen] )
0
Displays the menu screen when the button
is pressed during thumbnail display in the
Media mode.
0
Stops playback and displays the thumbnail
screen when the button is pressed during
playback screen display in the Media mode.
U
[CANCEL]
Cancel Button
Cancels various settings and stops playback.

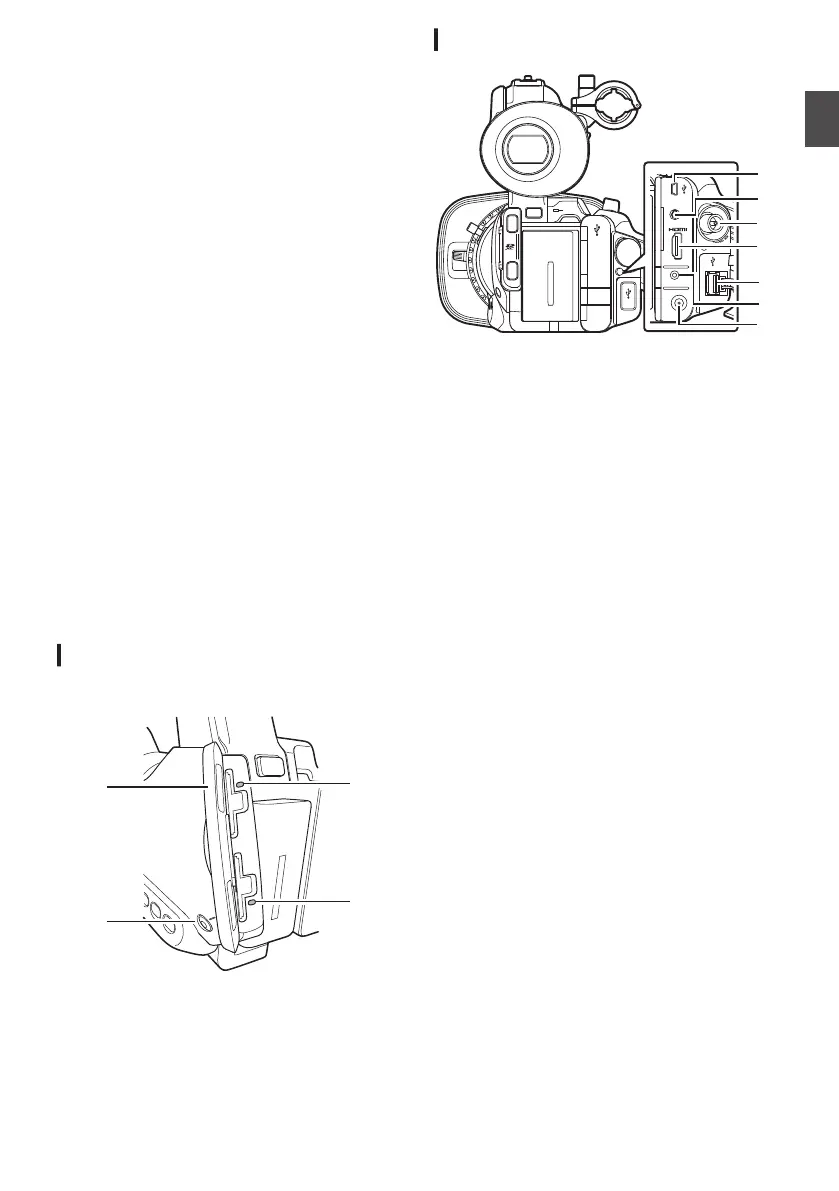

SD Slot
(A P39 [SD Card] )
.
A
B
C
D
A
SD Card Cover
B
[SLOT A/B] Card Slot Selection Button
For switching the active card slot during
shooting and playback.
C
Card Slot B Status Indicator
D
Card Slot A Status Indicator
Rear Terminal
.
DEVICE
AV
HDMI
REMOTE
DC
HD/SD
SDI
POWER
/CHG
BATT .RELEASE
A
B
OPEN
CLOSE
HOST
AV
DEVICE
HOST
DC
REMOTE
C
D
B
A
E
F
G
A
[DEVICE] USB Mini Terminal
(A P145 [Loading Clips to the PC] )
B
[AV] AV Output Terminal
(A P146 [Connecting External Monitor] )
C
[HD/SD SDI] SDI Output Terminal (BNC)
(A P146 [Connecting External Monitor] )
D
[HDMI] HDMI Output Terminal
(A P146 [Connecting External Monitor] )
E
[HOST] USB Host Terminal a
For connecting an USB adapter according to
the intended purpose when you are connecting
the unit to a network.
(A P150 [Camera Setup for Network
Connection] )
F
[REMOTE] Remote Terminal
(A P148 [Connecting Wired Remote Control] )
G
[DC] DC Input Terminal
Input terminal for DC 12 V power supply. For
connecting the supplied AC adapter.
(A P30 [Using AC Power (DC IN Power)] )
23
