Masterpage:Right-index
EN 5
Filename [HRS7960E1-EN.fm]
Page 5 April 22, 2003 3:07 pm

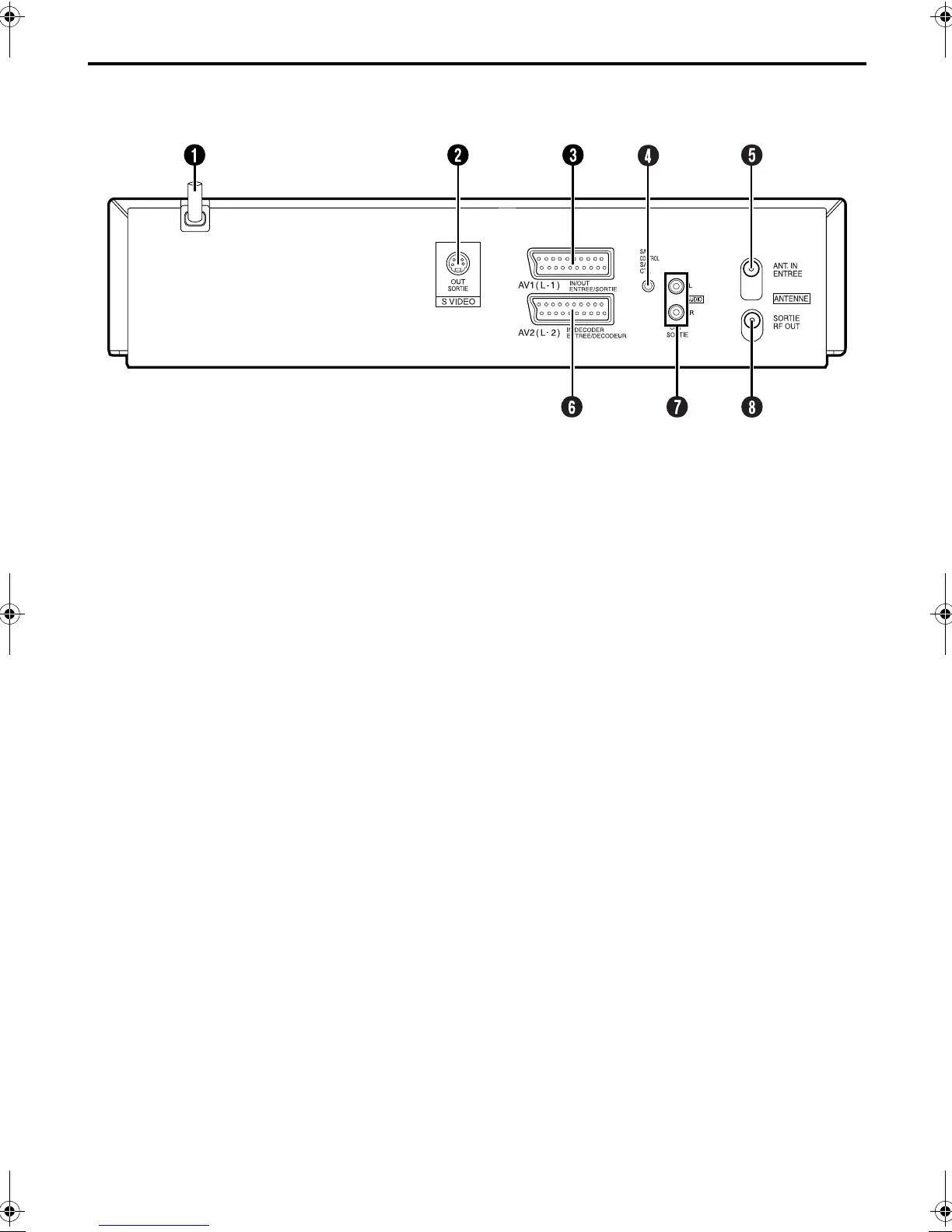

REAR VIEW
A Mains Power Cord 墌 pg. 10
B S VIDEO OUT Connector 墌 pg. 11
C AV1 (L-1) IN/OUT Connector
墌 pg. 10, 41, 44, 45, 46
D SAT CONTROL Connector 墌 pg. 17
E ANT. IN Connector 墌 pg. 10
F AV2 (L-2) IN/DECODER Connector
墌 pg. 17, 41, 44, 45, 46
G AUDIO OUT (L/R) Connectors 墌 pg. 47
H RF OUT Connector 墌 pg. 10
HRS7960E-EN.book Page 5 Tuesday, April 22, 2003 3:07 PM
