17
ENGLISH

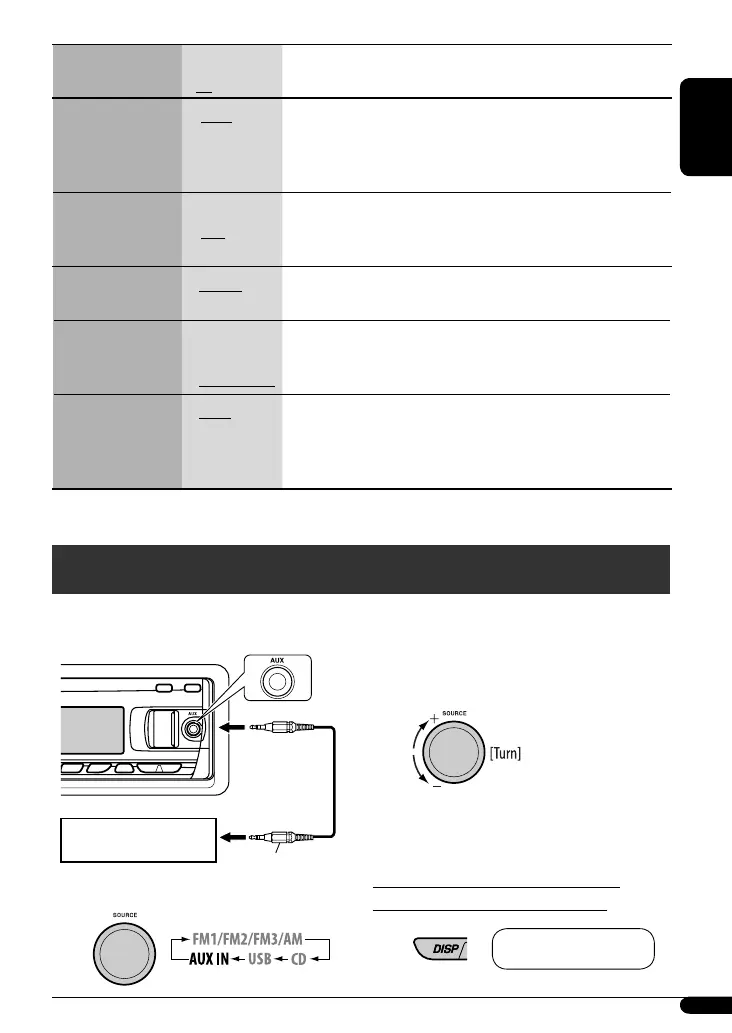

You can connect an external component to the
AUX (auxiliary) input jack on the control panel.
~
Ÿ Turn on the connected component and
start playing the source.
! Adjust the volume.
⁄ Adjust the sound as you want. (See
page 14.)
To check the other information while
listening to an external component
Other external component operations
Indications Item
( : Initial)
Selectable settings, [reference page]
L/O MODE
Line output mode
• REAR
• SUB.W
: Select if the REAR LINE OUT terminals are used for connecting the
speakers (through an external amplifier).
: Select if the REAR LINE OUT terminals are used for connecting a
subwoofer (through an external amplifier).
SUB.W FREQ *
5
Subwoofer cutoff
frequency
• LOW
• MID
• HIGH
: Frequencies lower than 90 Hz are sent to the subwoofer.
: Frequencies lower than 135 Hz are sent to the subwoofer.
: Frequencies lower than 180 Hz are sent to the subwoofer.
TAG DISPLAY
Tag display
• TAG ON
• TAG OFF
: Shows the Tag information while playing MP3/WMA tracks, [13].
: Cancels.
AMP GAIN
Amplifier gain control
• LOW POWER
• HIGH POWER
: VOLUME 00 – VOLUME 30 (Select this if the maximum power of the
speaker is less than 50 W to avoid them from damaging the speaker.)
: VOLUME 00 – VOLUME 50
IF BAND
Intermediate
frequency band
• AUTO
• WIDE
: Increases the tuner selectivity to reduce interference noise between
close stations. (The stereo effect may be lost.)
: Subject to the interference noise from adjacent stations, but the
sound quality will not be degraded and the stereo effect will remain.
*
5
Displayed only when “L/O MODE” is set to “SUB.W.”
AUX IN Ô Clock
3.5 mm stereo mini
plug (not supplied)
Portable audio player, etc
EN08-17_KD-747[EE]_2.indd 17EN08-17_KD-747[EE]_2.indd 17 12/3/07 4:03:25 PM12/3/07 4:03:25 PM
