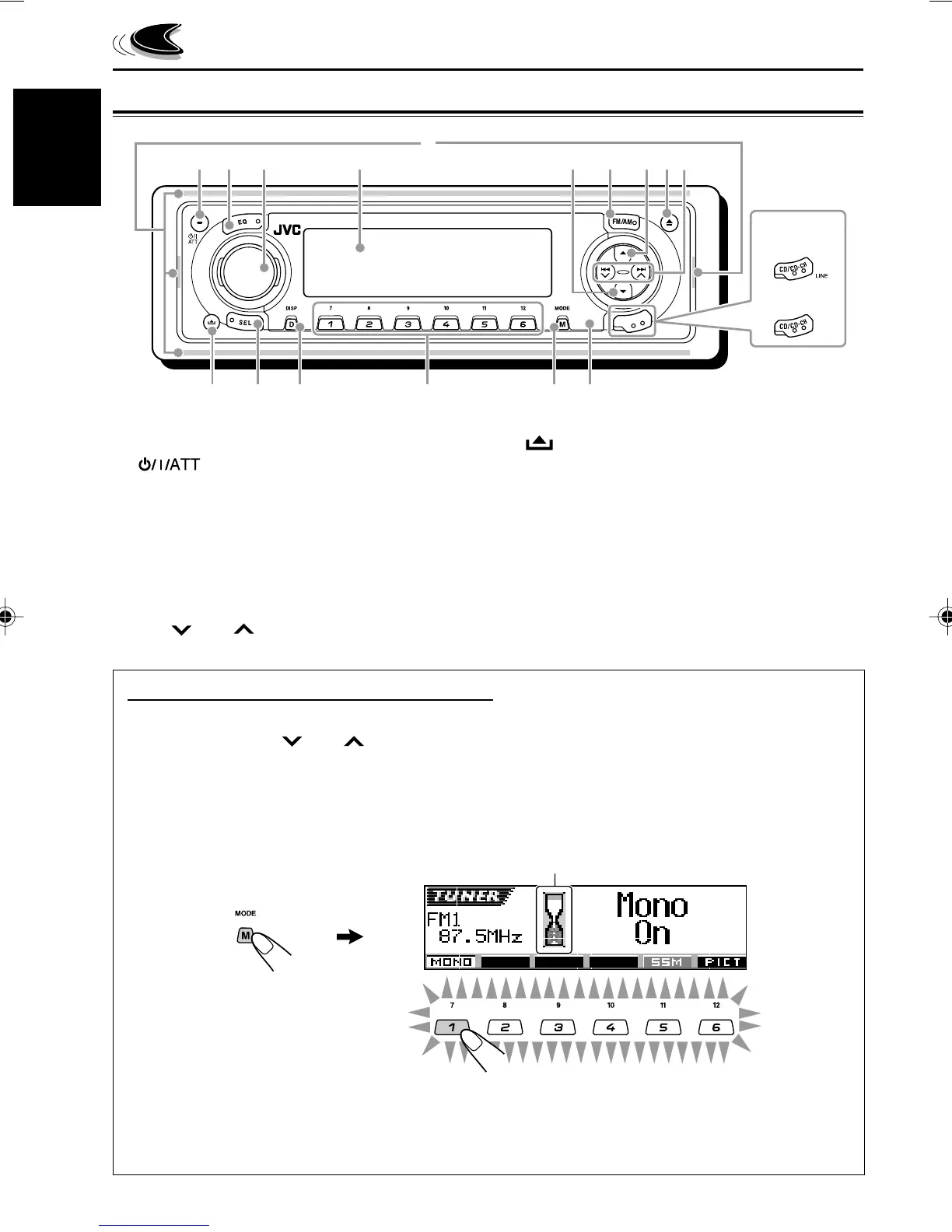

LOCATION OF THE BUTTONS
Control panel
1 Trim illumination
2 (standby/on/attenuator) button
3 EQ (equalizer) button
4 Control dial
5 Display window
6 ∞ (down) button
7 FM/AM button
8 5 (up) button
9 0 (eject) button
p 4 /¢ buttons
q (control panel release) button
w SEL (select) button
e D (DISP: display) button
r Number buttons
t M (MODE) button
y Remote sensor
u For KD-LH3150: CD/CD-CH (CD changer)
(LINE) button
For KD-LH3100: CD/CD-CH (CD changer)
button
Illumination Navigation for easy operations
If you use M (MODE), EQ (equalizer), or SEL (select), the display and some controls (such as the
number buttons, 4 /¢ , 5/∞, and control dial) enter the corresponding control mode, then
the controls start flashing to lead you to the next operational steps. (Illumination Navigation)
• The display shows how these buttons function during this period.
Ex.: When you press number button 1 after pressing M (MODE), to operate the FM tuner.
To use these controls for original functions again, wait until the controls stop flashing without
using these controls.
• Pressing M (MODE) again also restores original functions. However, pressing SEL (select) or
EQ (equalizer) makes the unit into a different mode.
Time countdown indicator
2
w
6
r
9
q
8
t
3 4
y
1
57
p
e
u
For KD-LH3150
For KD-LH3100
