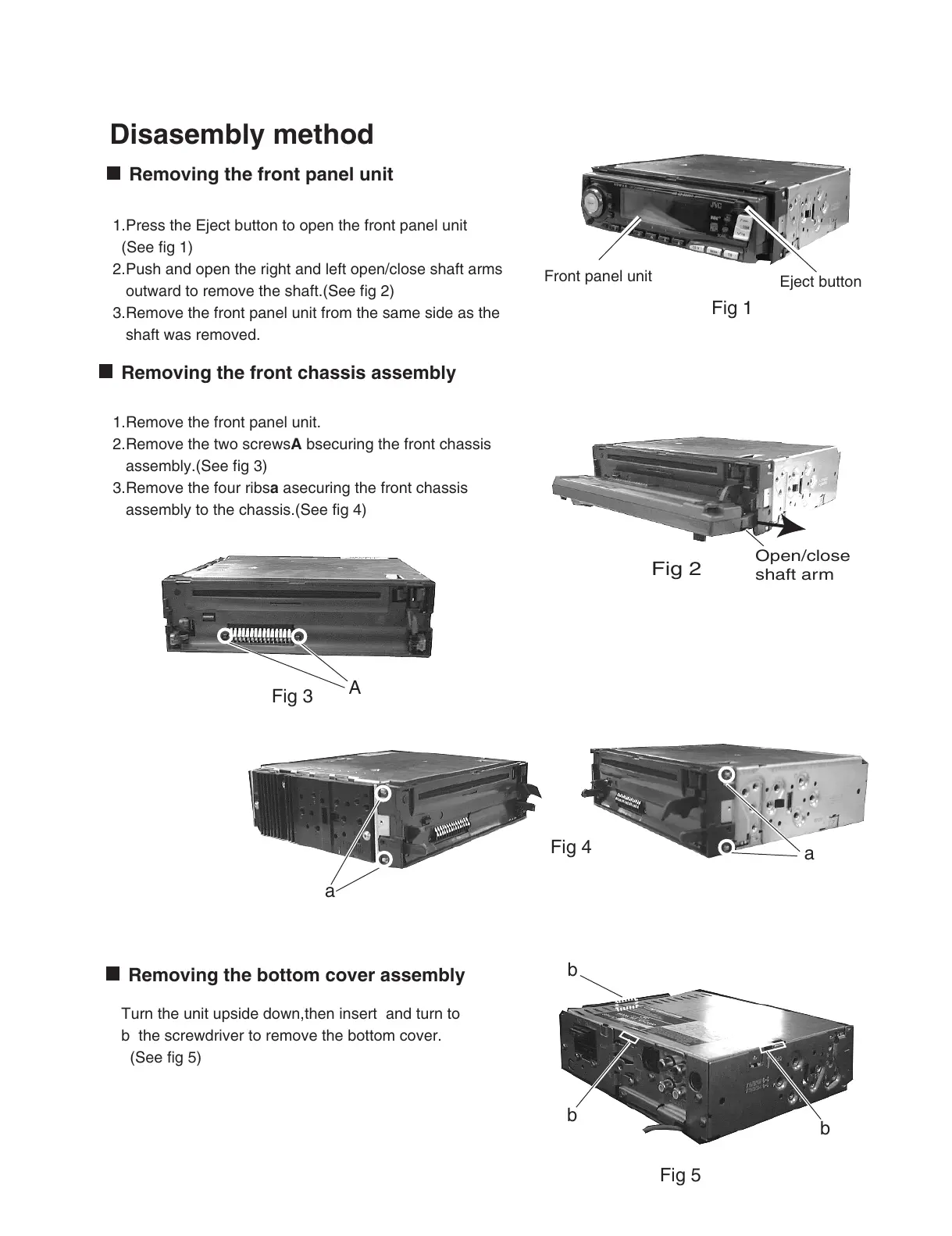

Disasembly method
Removing the front panel unit
1.Press the Eject button to open the front panel unit
(See fig 1)
2.Push and open the right and left open/close shaft arms
outward to remove the shaft.(See fig 2)
3.Remove the front panel unit from the same side as the
shaft was removed.
1.Remove the front panel unit.
2.Remove the two screwsA bsecuring the front chassis
assembly.(See fig 3)
3.Remove the four ribsa asecuring the front chassis
assembly to the chassis.(See fig 4)
Removing the front chassis assembly
Removing the bottom cover assembly
Turn the unit upside down,then insert and turn to
b the screwdriver to remove the bottom cover.
(See fig 5)
Fig 5
Fig 1
Eject button
Front panel unit
Fig 2
Open/close
shaft arm
Fig 3
A
a
Fig 4
a
b
b
b
b
