10

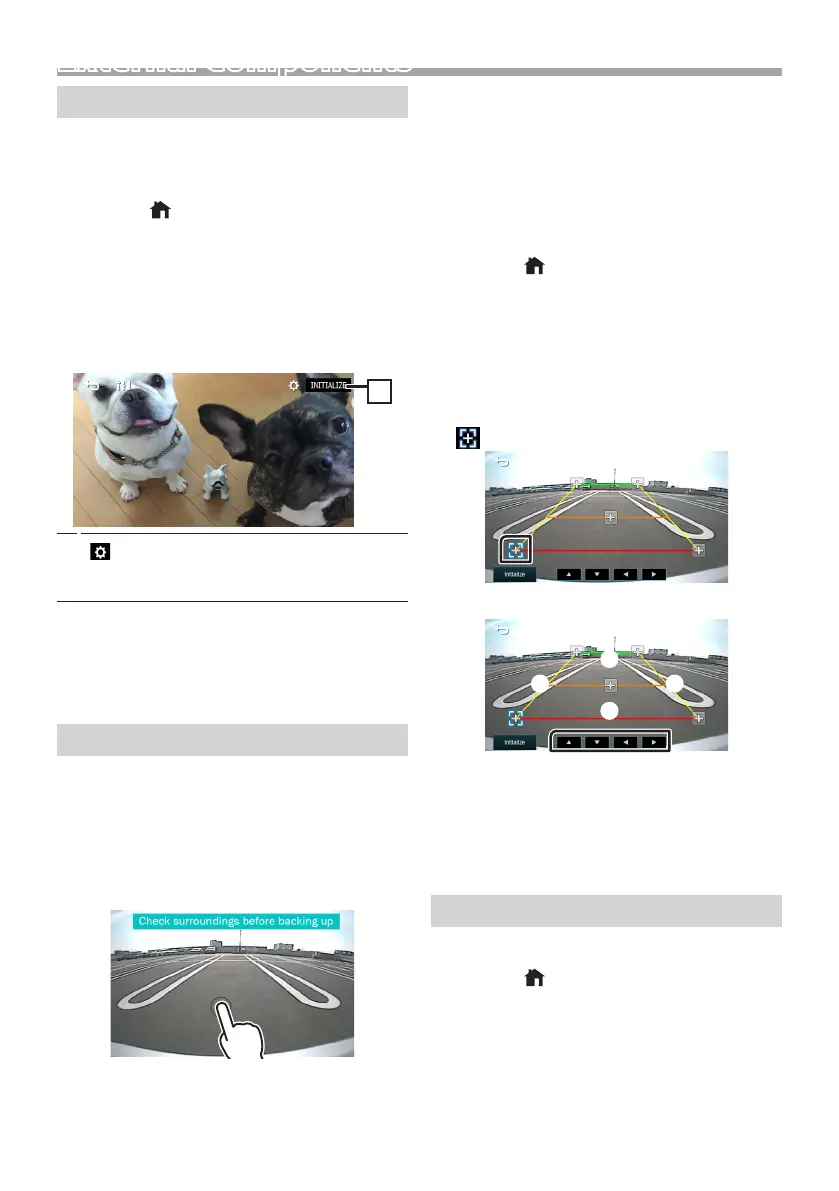

External Components
External Components
Using external audio/video players
Ñ Starting playback
1
Connect an external component to the AV-IN
input terminal. (P.20)
2
Press the < > button.
3 Touch [AV-IN].
4
Turn on the connected component and start
playing the source.
Ñ For Video playback
1
When the operation buttons are not displayed
on the screen, touch the display.
1
1
[
] : You can adjust image quality in video
screen.
[INITIALIZE] : To clear the adjustment.
✎ NOTE
• When the picture from the rear view camera is
displayed on the AV-IN screen, the picture output
from the Visual Output terminal disappears.
Rear view camera
To use a rear view camera, the REVERSE lead
connection is required. For connecting a rear view
camera. (P.20)
Ñ Displaying the picture from the rear
view camera
The rear view screen is displayed when you shift the
gear to the reverse (R) position.
• The rst touch removes the Caution, and the
second touch closes the Camera Screen.
Ñ To adjust the parking guidelines
✎ NOTE
• Install the rear view camera in the appropriate
position according to the instruction manual
supplied with the rear view camera.
• When adjusting the parking guidelines, make sure
to apply the parking brake to prevent the car from
moving.
1
Press the < > button.
2
Touch [Settings].
3 Touch [System].
4
Touch [T] or [U] of [Parking Guidelines] and set
to [ON].
5
Touch [Guidelines SETUP].
6 Adjust the parking guidelines by selecting the
[ ] mark.
7 Adjusting the position of the selected mark.
A
B
C D
Make sure that lines A and B are horizontally
parallel, and that lines C and D are of the same
length.
✎
NOTE
• Touch [Initialize] and then touch [Yes] to set all the
marks to their initial default position.
Reverse withATT（-20dB)
When the gear is shifted to the reverse (R) position,
the volume of the device is adjusted.
1
Press the < > button.
2
Touch [Settings].
3 Touch [System].
4
Touch [Reverse with ATT].
5
Touch [T] or [U] set to [ON/OFF].
✎
NOTE
• The settings value is ON (default)
To Next Page
