18

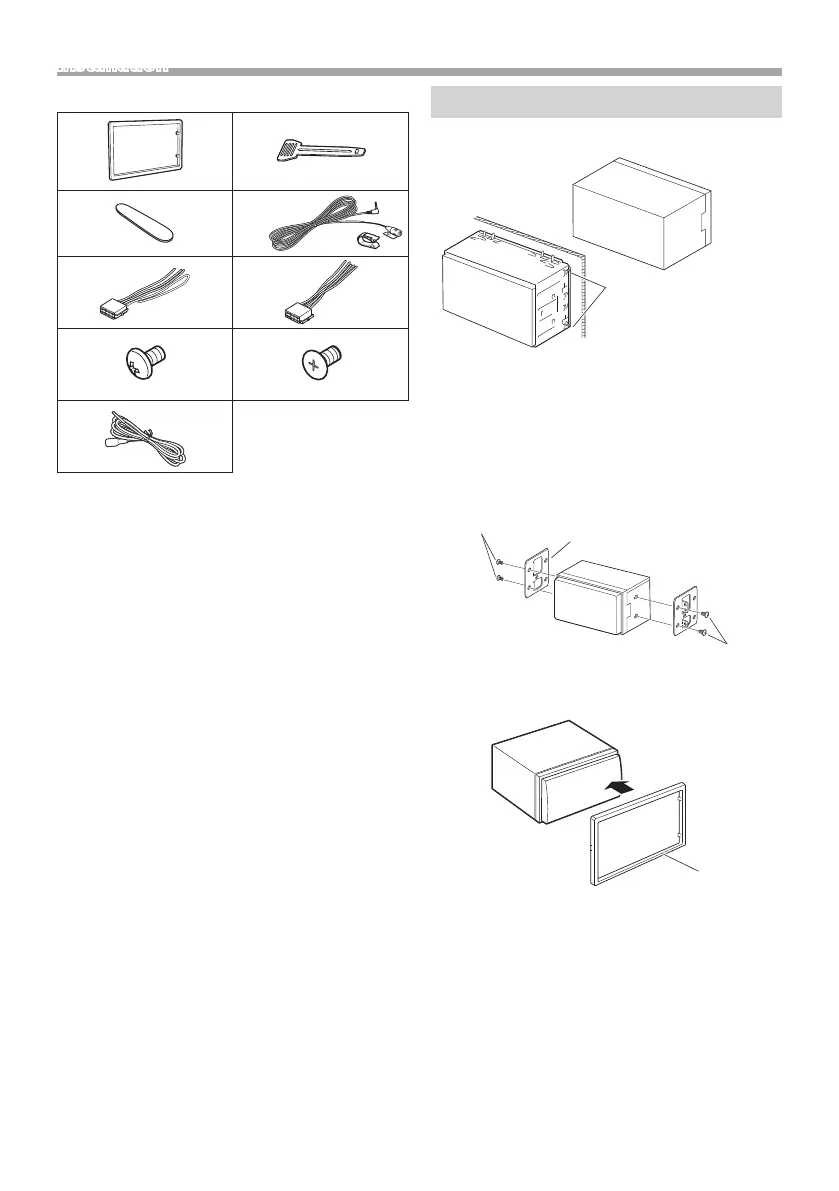

Installation
Ñ Supplied accessories for installation
1
x1
2
x2
3
x1
4
(3 m)
x1
5
x1
6
x1
7
(M5 × 6 mm)
x6
8
(M5 × 8 mm)
x6
9
(2 m)
x1
Ñ Installation procedure
1) To prevent a short circuit, remove the key from
the ignition and disconnect the ¤ terminal of the
battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the wire on the wiring harness.
4) Take Connector B on the wiring harness and
connect it to the speaker connector in your vehicle.
5) Take Connector A on the wiring harness and
connect it to the external power connector on your
vehicle.
6) Connect the wiring harness connector to the unit.
7) Install the unit in your car.
8) Reconnect the ¤ terminal of the battery.
9) Press the reset button.
Installing the unit
Ñ Non-Japanese cars
Bend the tabs of the
mounting sleeve with
a screwdriver or similar
utensil and attach it in
place.
✎ NOTE
• Make sure that the unit is installed securely in place.
If the unit is unstable, it may malfunction (eg, the
sound may skip).
Ñ Japanese cars (North America, South
America sales area only)
7 or 8
7 or 8
Car Bracket
Ñ Trim plate
1) Attach accessory 1 to the unit.
1
To Next Page
