VGA Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
Note: You can use YPbPr to VGA cable (supplied) to enable YPbPr signal via PC input.
WARNING: You cannot use PC and YPbPr at the same time.
SPDIF Out outputs audio signals of the currently watched source.
Use an SPDIF cable to trasfer audio signals to a device that has SPDIF input.

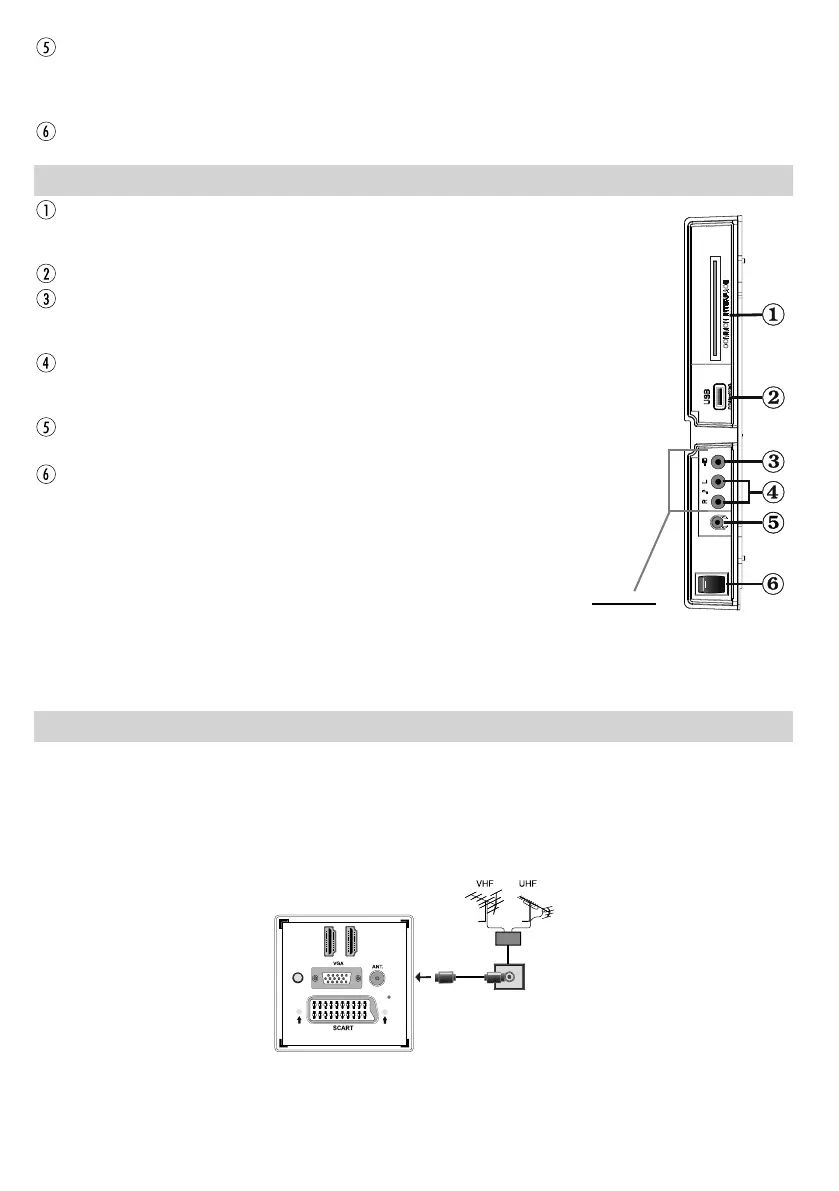

Viewing the Connections - Side Connectors
The CI Slot is used for inserting a CI card. A CI card allows you to view all the
channels that you subscribe to. For more information, see “Conditional Access”
section.
Side USB input.
Video Input (SIDE AV) is used for connecting video signals of external devices.
Connect the video cable between the VIDEO IN socket on the TV and the VIDEO
OUT jack on your device.
Audio Inputs (SIDE AV) are used for connecting audio signals of external devices.
Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO
OUTPUT jacks on your device.
The headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones.
Standby switch is used for turning the TV on or off.
Note: If you connect a device to the TV via the VIDEO INPUT, you should also
connect your device with an audio cable to the AUDIO INPUTS of the TV to
enable audio.
Power Connection
IMPORTANT: The TV set is designed to operate on 220 V - 240 V AC, 50 Hz.
After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the •
mains. Plug the power cable to the mains socket outlet.
Aerial Connection
Connect the aerial ,cable TV plug to the • AERIAL INPUT (ANT) socket located at the rear of the TV.
