(No.YA462)3-5

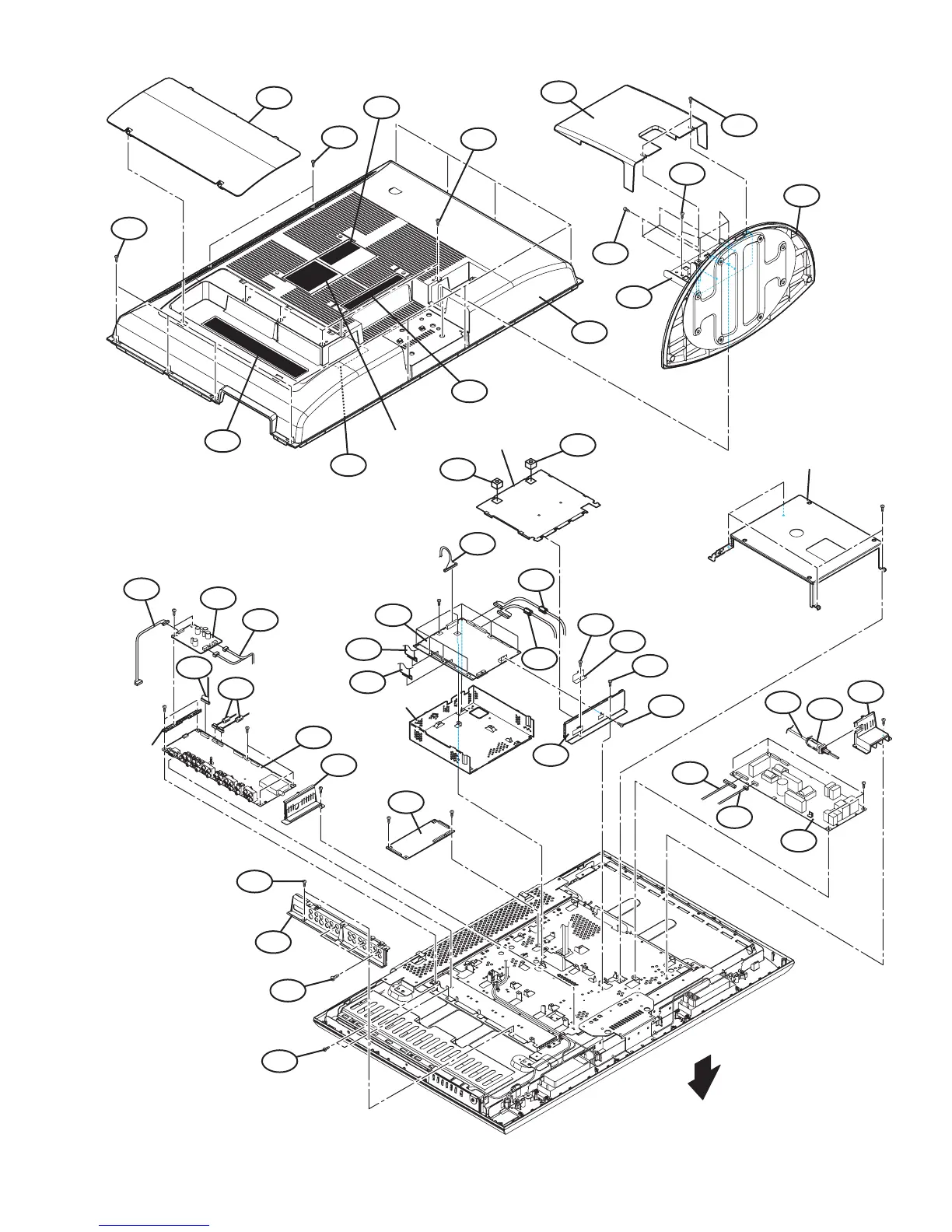

EXPLODED VIEW -1
FRONT
BACK BRACKET
SHIELD COVER
SHIELD BASE
D-AMP PWB
BRACKET
134
135
133
205
110
103A
106
104A
103
104
104B
109
136
137
138
111
102
108
204
130
RATING LABEL
131
132
201
120
121
119
118
117
116
115
113
112
114
139
139
101
126
203
128
127
129
202
203
122
123
124
125
