3-6(No.YA462)
EXPLODED VIEW PARTS LIST -2

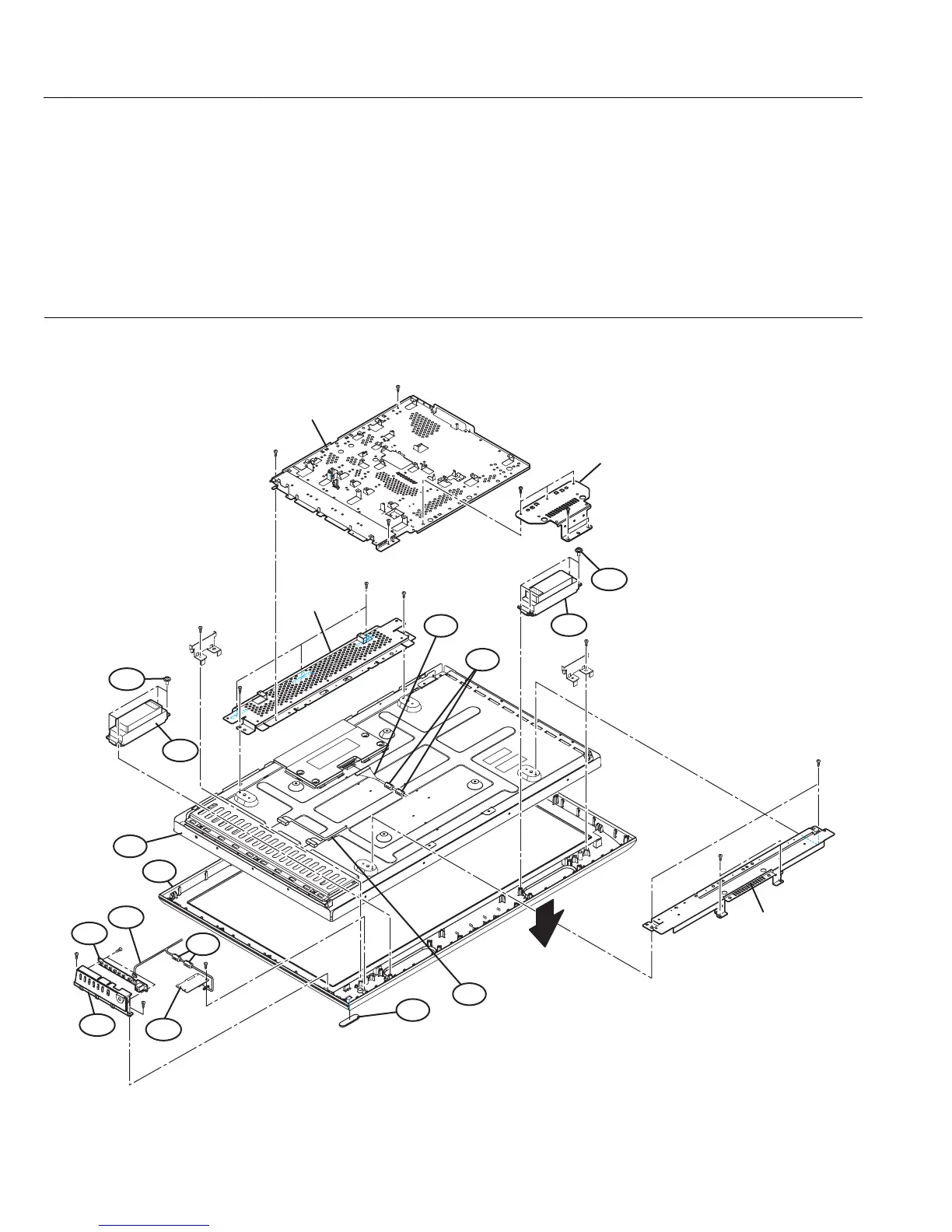

EXPLODED VIEW -2
Ref.No. Part No. Part Name Description Local
151 QLD0445-001-JMT LCD PANEL UNIT LT-Z37EX6,LT-Z37EX6A,LT-Z37EX6S
151 QLD0445-001-JET LCD PANEL UNIT LT-Z37EX6B
152 WJW0045-002A-E DIGITAL (LVDS) CABLE DIGITAL CN0LV2-LCD PANEL UNIT
153 QQR0490-001 NOISE FILTER (x2) LT-Z37EX6A,LT-Z37EX6S
154 WJZ0241-001A-E E-HARNESS ASSY MAIN POWER P-LCD PANEL UNIT
155 LC12782-005C-H FRONT PANEL ASSY
156 LC33506-008A LED PLATE
157 QAS0447-001 SPEAKER (x2)
158 QYSBSFG4016ZA TAP SCREW M4 x 16mm(x8)
159 QQR0490-001 NOISE FILTER (x2) LT-Z37EX6A,LT-Z37EX6S
160 WJZ0224-001A-E E-HARNESS ASSY SW CN100R-ANALOG R
161 LC33404-002A-H CONTROL ASSY
206 SFL-7211A-H2 SW PWB LT-Z37EX6,LT-Z37EX6A,LT-Z37EX6S
206 SFL-7211A-BK SW PWB LT-Z37EX6B
207 SFL-8906A-H2 LED PWB LT-Z37EX6,LT-Z37EX6A,LT-Z37EX6S
207 SFL-8906A-BK LED PWB LT-Z37EX6B
BOTTOM FRAME
TOP FRAME
MAIN BASE
STAND
BRACKET
FRONT
157
158
158
157
152
153
159
154
156
155
151
206
160
161
207
