3-10

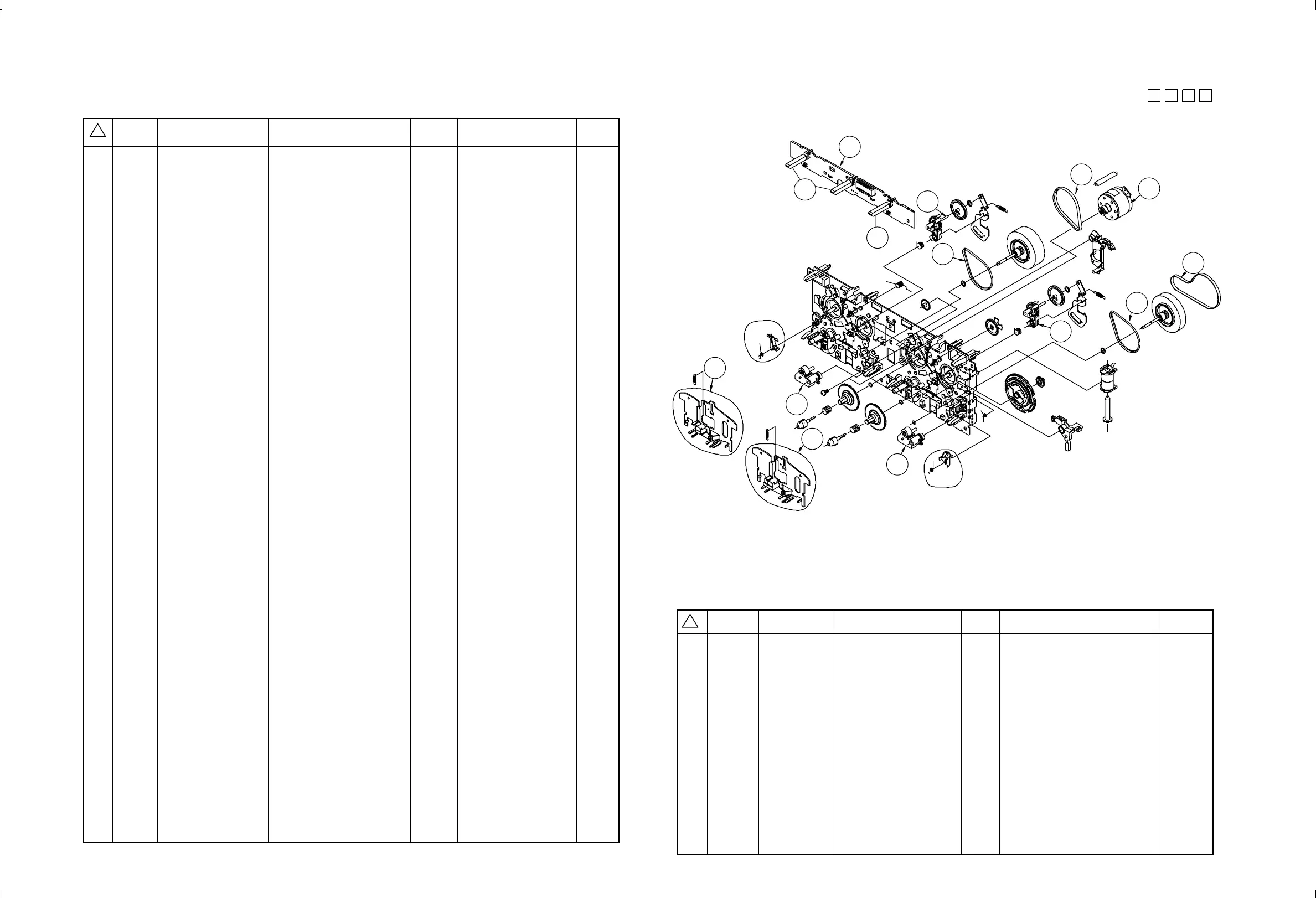

Cassette mechanism assembly and parts list
Block No.
M
M
M
P
10
1
7
7
L SIDE
R SIDE
5
5
9
8
8
6
2
3
4
4
CMAT6Z219A
Note: Parts listed on the Parts List below can be supplied.
However, parts that are not listed below cannot be supplied
individually but only by purchasing the whole Cassette
Mechanism Assembly Unit. (When ordering, use the Parts No.
CMAT6Z219A for Cassette Mechanism Assembly Unit.)
L SIDE
TYPE
R SIDE
TYPE
Parts List (Cassette mechanism)
Block No. MPMM
Item Parts number Parts name Q'ty Description Area
1 BIF513858 PLATE HD BLK 1
2
BIF525346 MTR MAIN BLK 1
3 BIF567843 PCB CONTROL BLK 1
4 BIUE20P12 LEAF SWITCH 3
5 BIF522063 CLUTCH ASSY BLK 2
6 BIFF19N31 MAIN BELT 1
7 BIF51435 ROLLER PINCH BLK R 2
8 BIFF19S31 F/R BELT MO 2
9 BIFF19N22 MAIN BELT 1
10 BIF513855 PLATE HD BLK 1
Electrical parts list ( CD Changer )
!
Item
Location
Parts number Parts name Q'ty. Description Area
1 BI3199801000 GEAR PLATE 1
2 BI3199802000 GUIDE PLATE 2
3 BI3199804000 UP COVER PLATE 1
4 BI3499801000 SHAFT PULLEY 1
5 BI3499802000 SHAFT SWING 1
6 BI3599801001 T/T SWITCH SPRING 1
7 BI3599802000 SWING SPRING 1
8 BI3599803000 SPRING BIG 1
9 BI3599804000 SPRING SMALL 1
10 BI3599805000 TOWER FORM SPRING 1
11 BI3599806000 CUSHION HARD 1
12 BI3599807000 CUSHION SOFT 3
13 BI36CJ000000 M-399 OPTIMA-7 1 CD MECH.W/PICK UP
14 BI3799802000 CUSHION RUBBER 4
15 BI4299801001 BASE 1
16 BI4299802000 TRAY 1
17 BI4299803002 TURN CHANGER 1
18 BI4299804000 INERTIA GEAR (A) 1
19 BI4299821000 HOLDER DISC 1
20 BI4299806000 T/T GEAR 2
21 BI4297307000 OBLIQUE GEAR 1
22 BI4299808000 SCREW STICK 1
23 BI4299809000 T/T LEVER LOCK 1
24 BI4299810000 PULLEY 1
25 BI4299811000 PULLEY GEAR 1
26 BI4299812000 BASE CHANGE 1
1
27 BI4299813000 TRANSMISSION
28 BI4299814001 MECHA GEAR 1
29 BI4299815000 MECHA HOLDER 1
30 BI4299816001 INERTIA GEAR (B) 4
31 BI4299817000 ROLLER 2
32 BI4299818000 BASE CD MECHANISM 1
33 BI4299819000 BUFFER BASE 1
34 BI4399801000 BELT 1
35 BI4799801000 BASE CHANGE FELT 1
36 BI4799803001 PVC PLATE 1
37 BI4799804000 MAGNET DISC CRAMP 1
38 BI5099807001 WIRE ASSY 6P 1
39 BI5099808000 WIRE ASSY 3P 1
40 BI5099809000 WIRE ASSY 6P 1
41 BI5099811001 WIRE ASSY 6P 1
42 BI5099812001 FLEX CABLE 15P 1
43 BI6599801000 SWITCH 3
44 BI6599802000 SWITCH 1
45 BI6994301000 MOTOR 1
46 BI6999801000 MOTOR 1
47 BI86000102J3 SCREW 2 M2.6 x 5.0
48 BI86000115F1 SCREW 1 M2.0 x 12.0
49 BI86000125E1 SCREW 3 M1.7 x 8.0
50 BI86000135E1 SCREW 1 M3.0 x 8.0
51 BI86000145E2 SCREW 4 M1.7 x 8.0
52 BI865F31B075 SCREW 4 M2.0 x 7.5
53 BI865F31B120 SCREW 2 M2.0 x 12.0
54 BI865J31B080 SCREW 5 M2.6 x 8.0
55 BI8811231206 WASHER 4 2.2 x 13.0 x 0.6
56 BI4500001100 YST BAR CODE 1
57 BI6599801001 SWITCH 1
!
