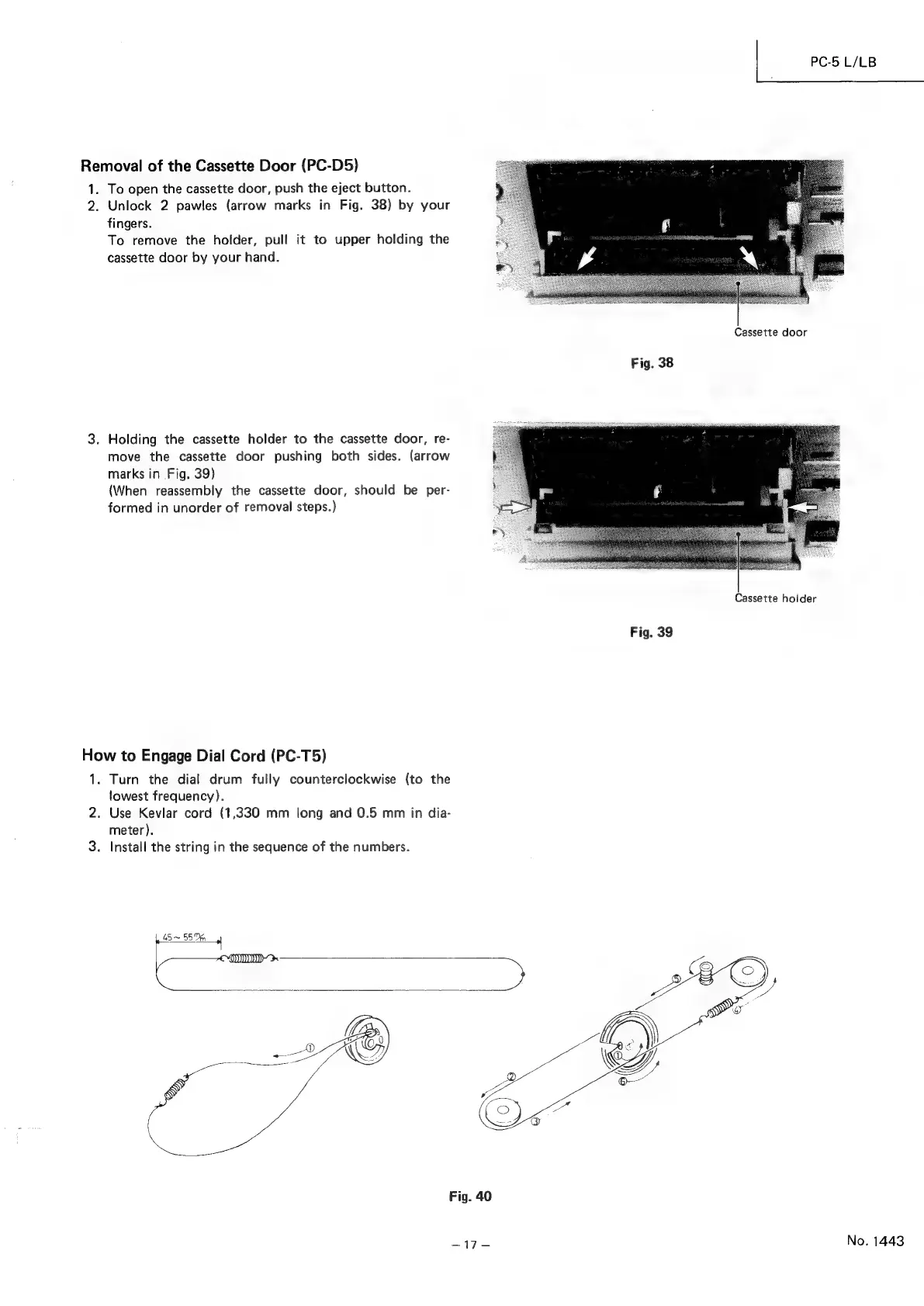

PC-5
L/LB
Removal
of
the
Cassette
Door
(PC-D5)
1.
To
open
the
cassette
door,
push
the
eject
button.
2.
Unlock
2
pawles
(arrow
marks
in
Fig.
38)
by
your
fingers.
To
remove
the
holder,
pull
it
to
upper
holding
the
cassette
door
by
your
hand.
Cassette
door
Fig.
38
3.
Holding
the
cassette
holder
to
the
cassette
door,
re-
move
the
cassette
door
pushing
both
sides.
(arrow
marks
in
Fig.
39)
(When
reassembly
the
cassette
door,
should
be
per-
formed
in
unorder
of
removal
steps.)
Cassette
holder
Fig.
39
How
to
Engage
Dial
Cord
(PC-T5)
1.
Turn
the
dial
drum
fully
counterclockwise
(to
the
lowest
frequency).
2.
Use
Kevlar
cord
(1,330
mm
long
and
0.5
mm
in
dia-
meter).
3.
Install
the
string
in
the
sequence
of
the
numbers.
Fig.
40
-17-
No.
1443
